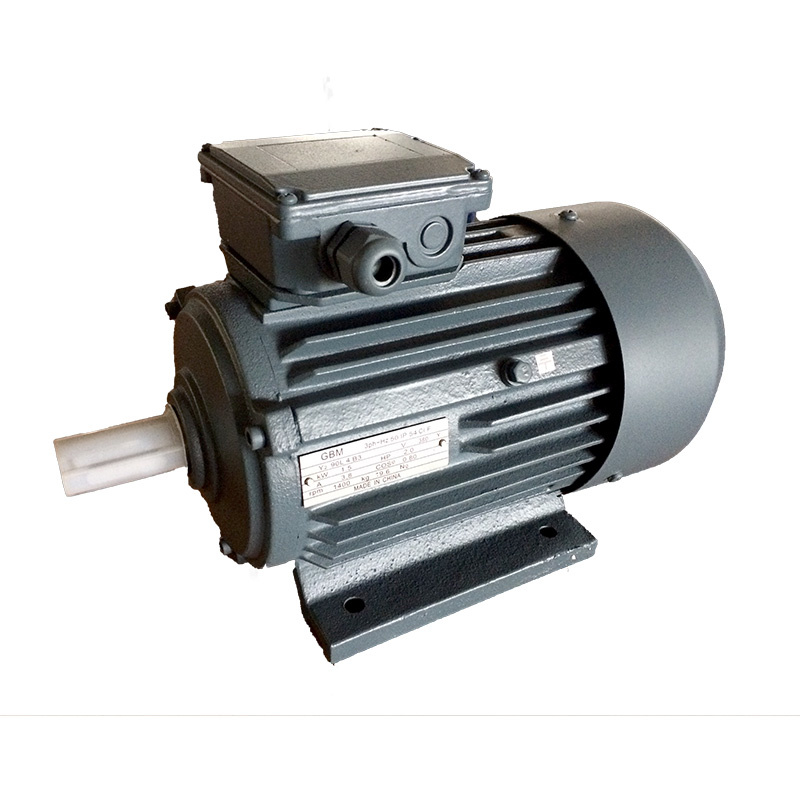

Tbyl Series Three-Phase Asynchronous Motor
| Price: |
US $ 57/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
Introduction:TBYL series three-phase induction motors, developed with new techniques, are renewal and upgrading products of Y series.TBYL series motors are defined as totally enclosed, fan cooled, squirrel cage type and noted for their novel design, beautiful modelling, compact structure, low noise, high efficiency, large torque, excellent starting performance, easy service, etc. The motors areAdopted with F class insulation and designed with assessing method for insulation system according to international practice, it enhances greatly safety and reliability of motors.TBYL series motors can be widely used as driving equipment of various machineries, same as, machine tools, blowers, pumps, compressors, transporters, agricultural and food processing.Operating conditions:Ambient temperature:-15
ºC<
θ<40ºC
Altitude: not exceed 1000mRated voltage:380V or any voltage between 220V-760VRated frequency: 50Hz,60HzProtection class:IP44,IP54,IP55Insulation class: B,FCooling method: IC0141Duty:S1(continuous)Connection: Star-connection for up to 3kW, Delta-connection for 4kW and above.Technical Data:| Model | Output | Speed(r.p.m) | Eff.(%) | Power factor (cos | Rated current(A) | Rated Torque Num | lst/ln | Tst/Tn | |
| KW | HP | 380 | 400 | 415 |
| SPEED 3000RPM 2-POLE 50HZ |
| TBYL-801-2 | 0.75 | 1 | 2875 | 77.4 | 0.83 | 1.77 | 1.68 | 1.62 | 2.49 | 5.30 | 2.5 | 3 |
| TBYL-802-2 | 1.1 | 1.5 | 2875 | 79.6 | 0.84 | 2.50 | 2.37 | 1.29 | 3.65 | 7.00 | 3.2 | 3.8 |
| TBYL-90S-2 | 1.5 | 2 | 2890 | 81.3 | 0.84 | 3.32 | 3.16 | 3.04 | 4.96 | 7.10 | 2.7 | 3.5 |
| TBYL-90L-2 | 22 | 3 | 2890 | 83.2 | 0.85 | 4.72 | 4.48 | 4.32 | 7.27 | 6.90 | 2.4 | 3 |
| TBYL-100L-2 | 3 | 4 | 2891 | 84.6 | 0.87 | 6.17 | 5.86 | 5.65 | 9.91 | 8.00 | 3.2 | 4 |
| TBYL-112M-2 | 4 | 5.5 | 2914 | 85.8 | 0.88 | 8.04 | 7.64 | 7.36 | 13.11 | 7.50 | 2.5 | 3 |
| TBYL-132S1-2 | S.S | 7.5 | 2937 | 87.0 | 0.86 | 11.2 | 10.6 | 10.2 | 17.88 | 7.50 | 2.7 | 3.5 |
| TBYL-132S2-2 | 7S | 10 | 2940 | 88.1 | 0.88 | 14.6 | 13.9 | 13.4 | 24.36 | 7.50 | 2.4 | 3.3 |
| TBYL-1601-2 | 11 | 15 | 2930 | 89.4 | 0.89 | 21.0 | 19.9 | 19.2 | 35.85 | 7.60 | 2.2 | 2.9 |
| TBYL-160M2-2 | 15 | 20 | 2930 | 90.3 | 0.89 | 28.4 | 26.9 | 26.0 | 48.89 | 7.60 | 2.3 | 3 |
| TBYL-160L-2 | 18.5 | 25 | 2937 | 90.9 | 0.89 | 34.7 | 33.0 | 31.8 | 60.15 | 7.40 | 2.3 | 3.1 |
| TBYL-180M-2 | 22 | 30 | 2940 | 91.3 | 0.88 | 41.6 | 39.5 | 38.1 | 71.46 | 7.80 | 2.8 | 3.2 |
| TBYL-200L1-2 | 30 | 40 | 2950 | 92.0 | 0.88 | 56.2 | 53.4 | 51.5 | 97.12 | 7.80 | 2.6 | 3 |
| TBYL-200L2-2 | 37 | 50 | 2950 | 92.5 | 0.89 | 68.2 | 64.8 | 62.5 | 119.78 | 7.70 | 2.6 | 3 |
| TBYL-225M-2 | 45 | 60 | 2960 | 92.9 | 0.89 | 82.5 | 78.4 | 75.6 | 145.19 | 7.50 | 2.4 | 2.6 |
| TBYL-250M-2 | 55 | 75 | 2965 | 93.2 | 0.90 | 99.5 | 94.5 | 91.1 | 177.15 | 7.10 | 2.3 | 2.8 |
| TBYL-280S-2 | 75 | 100 | 2970 | 93.8 | 0.90 | 135 | 128 | 123 | 241.16 | 7.40 | 2.5 | 2.8 |
| TBYL-280M-2 | 90 | 125 | 2970 | 94.1 | 0.91 | 160 | 152 | 146 | 289.39 | 7.60 | 2.8 | 2.8 |
| TBYL-315S-2 | 110 | 150 | 2975 | 94.3 | 0.91 | 194 | 185 | 178 | 353.11 | 6.90 | 24 | 2.8 |
| TBYL-315M-2 | 132 | 180 | 2975 | 94.6 | 0,91 | 233 | 221 | 213 | 423.73 | 7.10 | 2.6 | 2.9 |
| TBYL-315L1-2 | 160 | 200 | 2975 | 94.8 | 0.92 | 278 | 265 | 255 | 513.61 | 7.10 | 2.5 | 2.9 |
| TBYL-315L2-2 | 200 | 270 | 2975 | 95.0 | 0.92 | 348 | 330 | 318 | 642.02 | 6.90 | 2.5 | 2.8 |
| TBYL-355M-2 | 250 | 340 | 2980 | 95.0 | 0.92 | 434 | 412 | 398 | 801.17 | 7.00 | 2.5 | 2.8 |
| TBYL-355L-2 | 315 | 430 | 2980 | 95.0 | 0.92 | 547 | 520 | 501 | 1009.48 | 7.00 | 2.5 | 2.9 |
| SPEED 1500RPM 4-POLE 50HZ |
| TBYL-802-4 | 0.75 | 1 | 1400 | 79.6 | 0.76 | 1.88 | 1.79 | 1.72 | 5.12 | 5 | 2.4 | 2.9 |
| TBYL-90S-4 | 1.1 | 1.5 | 1440 | 81.4 | 0.77 | 2.66 | 2.53 | 2.44 | 7.3 | 6 | 3 | 3.5 |
| TBYL-90L-4 | 1.5 | 2 | 1445 | 82.8 | 0.77 | 3.57 | 3.39 | 3.27 | 9.91 | 6.8 | 3.2 | 3.8 |
| TBYL-100L1-4 | 2.2 | 3 | 1440 | 84.3 | 0.81 | 4.88 | 4.64 | 4.47 | 14.6 | 7 | 3 | 3.5 |
| TBYL-100L2-4 | 3 | 4 | 1140 | 85.5 | 0.82 | 6.50 | 6.18 | 5.95 | 19.9 | 7S | 2.6 | 33 |
| TBYL-112M-4 | 4 | 5.5 | 1445 | 86.6 | 0.82 | 8.55 | 8.12 | 7.83 | 26.4 | 7 | 3.5 | 4 |
| TBYL-1 B2S-4 | 5.5 | 7.5 | 1455 | 87.7 | 0.83 | 11.5 | 10.9 | 10.5 | 36.1 | 6.4 | 2.2 | 2.8 |
| TBYL-132M-4 | 7.5 | 10 | 1455 | 88.7 | 0.84 | 15.3 | 14.5 | 14.0 | 49.2 | 7 | 2.4 | 3 |
| TBYL-160M-4 | 11 | 15 | 1460 | 89.8 | 0.84 | 22.1 | 21.0 | 20.3 | 71.9 | 6.9 | 2.5 | 2.9 |
| TBYL-160L-4 | 15 | 20 | 1460 | 90.6 | 0.85 | 29.6 | 28.1 | 27.1 | 98.1 | 7.5 | 2.5 | 3 |
| TBYL-180M-4 | 18.5 | 25 | 1470 | 91.2 | 0.86 | 35.8 | 34.0 | 32.8 | 120.2 | 7,8 | 2.6 | 3.1 |
| TBYL-180L-4 | 22 | 30 | 1470 | 91 | 0.86 | 42.3 | 40.2 | 38.7 | 142.9 | 7.5 | 2.2 | 2.3 |
| TBYL-200L-4 | 30 | 40 | 1470 | 92.3 | 0.86 | 57.3 | 54.4 | 52.5 | 194.9 | 7.1 | 2.4 | 2.9 |
| TBYL-225S-4 | 37 | 50 | 1480 | 92.7 | 0.87 | 69.7 | 66.2 | 63.8 | 238.8 | 7.5 | 2.5 | 2.7 |
| TBYL-225M-4 | 45 | 60 | 1480 | 93.1 | 0.87 | 84.3 | 80.1 | 77.2 | 290.4 | 7.6 | 2.5 | 2.8 |
| TBYL-250M-4 | 55 | 75 | 1480 | 93.5 | 0.87 | 103 | 97.5 | 94 | 354.9 | 7.3 | 2.6 | 2.7 |
| TBYL-280S-4 | 75 | 100 | 1480 | 94.0 | 0.87 | 139 | 132 | 127 | 484 | 7.6 | 2.7 | 2.7 |
| TBYL-280M-4 | 90 | 125 | 1480 | 94.2 | 0.87 | 167 | 158 | 153 | 580.7 | 7.5 | 2.7 | 2.7 |
| TBYL-315S-4 | 110 | 150 | 1485 | 94.5 | 0.88 | 201 | 191 | 184 | 707.4 | 7.1 | 2.7 | 2.9 |
| TBYL-315M-4 | 132 | 180 | 1485 | 94.7 | 0.88 | 240 | 228 | 220 | 88.9 | 7.3 | 27 | 2.9 |
| TBYL-315L1-4 | 160 | 200 | 1485 | 94.9 | 0.89 | 288 | 273 | 263 | 1029 | 7.4 | 3 | 3 |
| TBYL-315L2-4 | 200 | 270 | 1485 | 95.1 | 0.89 | 359 | 341 | B28 | 1286 | 7.6 | 3 | 3 |
| TBYL-355M-4 | 250 | 340 | 1490 | 95.1 | 0.90 | 443 | 421 | 406 | 1602 | 7.5 | 2.8 | 2.9 |
| TBYL-355L-4 | 315 | 430 | 1490 | 95.1 | 0.90 | 559 | 531 | 511 | 2019 | 7.4 | 2.6 | 2.8 |
| SPEED 1000RPM 6-POLE 50HZ |
| | | | | | | | | | | | | |
| TBYL-90S-6 | 0.75 | 1 | 934 | 75.9 | 0.72 | 2.08 | 1.98 | 1.9 | 7.67 | 4.5 | 2.2 | 2.4 |
| TBYL-90L-6 | 1.1 | 1.5 | 945 | 78.1 | 0.72 | 2.97 | 2.82 | 2.72 | 11.1 | 4.5 | 2.4 | 2.6 |
| TBYL-100L-6 | 1.5 | 2 | 945 | 79.8 | 0.75 | 3.8 | 3.61 | 3.48 | 15.2 | 4.2 | 1.8 | 2.2 |
| TBYL-112M-6 | 2.2 | 3 | 960 | 81.8 | 0.76 | 5.37 | 5.1 | 4.92 | 21.9 | 4.5 | 2.3 | 2.8 |
| TBYL-132S-6 | 3 | 4 | 964 | 83.3 | 0.76 | 7.19 | 6.8B | 6.58 | 29.7 | 4.5 | 1.8 | 2.4 |
| TBYL-132M1-6 | 4 | 5.5 | 965 | 84.6 | 0.76 | 9.43 | 8.96 | 8.63 | 39.6 | 5.0 | 2.3 | 2.7 |
| TBYL-132M2-6 | 5.5 | 7.5 | 965 | 96 | 0.77 | 12.6 | 12 | 11.5 | 54.4 | 5.5 | 1.9 | 2.8 |
| TBYL-160M-6 | 7.5 | 10 | 970 | 87.2 | 0.78 | 16.7 | 15.9 | 15.3 | 73.8 | 6.5 | 2 | 3 |
| TBYL-160L-6 | 11 | 15 | 970 | 88.7 | 0.78 | 24.1 | 22.9 | 22.1 | 108.3 | 7.5 | 2.4 | 3.3 |
| TBYL-180L-6 | 15 | 20 | 975 | 89.7 | 0.81 | 31.4 | 29.8 | 28.7 | 146.9 | 6.4 | 2 | 2.7 |
| TBYL-200L1-6 | 18.5 | 25 | 980 | 90.4 | 0.81 | 38.3 | 36.4 | 35.1 | 180.3 | 7 | 2.3 | 3 |
| TBYL-200L2-6 | 22 | 30 | 980 | 90.9 | 0.83 | 44.3 | 42 | 40.5 | 214.4 | 7 | 2.3 | 2.8 |
| TBYL-225M-6 | 30 | 40 | 980 | 91.7 | 0.84 | 59.2 | 56.2 | 54.2 | 292.3 | 6.5 | 2.2 | 2.7 |
| TBYL-250M-6 | 37 | 50 | 980 | 92.2 | 0.86 | 70.8 | 67.3 | 64.8 | 360.6 | 6.9 | 2.5 | 2.7 |
| TBYL-280S-6 | 45 | 60 | 980 | 92.7 | 0.86 | 85.8 | 81.5 | 78.5 | 438.5 | 7 | 2.2 | 2.4 |
| TBYL-280M-6 | 55 | 75 | 980 | 93.1 | 0.86 | 104 | 99.2 | 95.6 | 536 | 7.1 | 2.4 | 2.5 |
| TBYL-315S-6 | 75 | 100 | 985 | 93.7 | 0.86 | 141 | 134 | 129 | 727.2 | 7.3 | 2.8 | 3 |
| TBYL-315M-6 | 90 | 125 | 985 | 94 | 0.86 | 169 | 160 | 155 | 872.6 | 7.1 | 2.7 | 2.9 |
| TBYL-315L1-6 | 110 | 150 | 985 | 94.3 | 0.86 | 206 | 196 | 189 | 1066 | 7.4 | 2.9 | 2.9 |
| TBYL-315L2-6 | 132 | 180 | 985 | 94.6 | 0.87 | 243 | 231 | 223 | 1280 | 7.6 | 3 | 3.1 |
| TBYL-355M1-6 | 160 | 200 | 990 | 94.8 | 0.88 | 291 | 277 | 267 | 154B | 7.6 | 3.1 | 3.1 |
| TBYL-355M2-6 | 200 | 270 | 990 | 95 | 0.88 | 363 | 345 | 333 | 1929 | 7.8 | 3 | 3 |
| TBYL-355L-6 | 250 | 340 | 990 | 95 | 0.88 | 454 | 432 | 416 | 2412 | 7.7 | 3.1 | 3 |
| Prod Model: |
TBYL |
| Rated Frequency: |
50Hz, 60Hz |
| Rated Voltage: |
380V or Any Voltage Between 220V-760V |
| Protection Class: |
IP44, IP54, IP55 |
| Cooling Method: |
IC0141 |
| Duty: |
S1(Continuous) |
| Application: |
Industrial |
| Operating Speed: |
Constant Speed |
| Number Of Stator: |
Three-Phase |
| Species: |
Y, Y2 Series Three-Phase |
| Rotor Structure: |
Squirrel-Cage |
| Casing Protection: |
Closed Type |
| Starting Mode: |
Variable Frequency Starting |
| Brand: |
Tongbo |
| Number Of Poles: |
2, 4, 6 |
