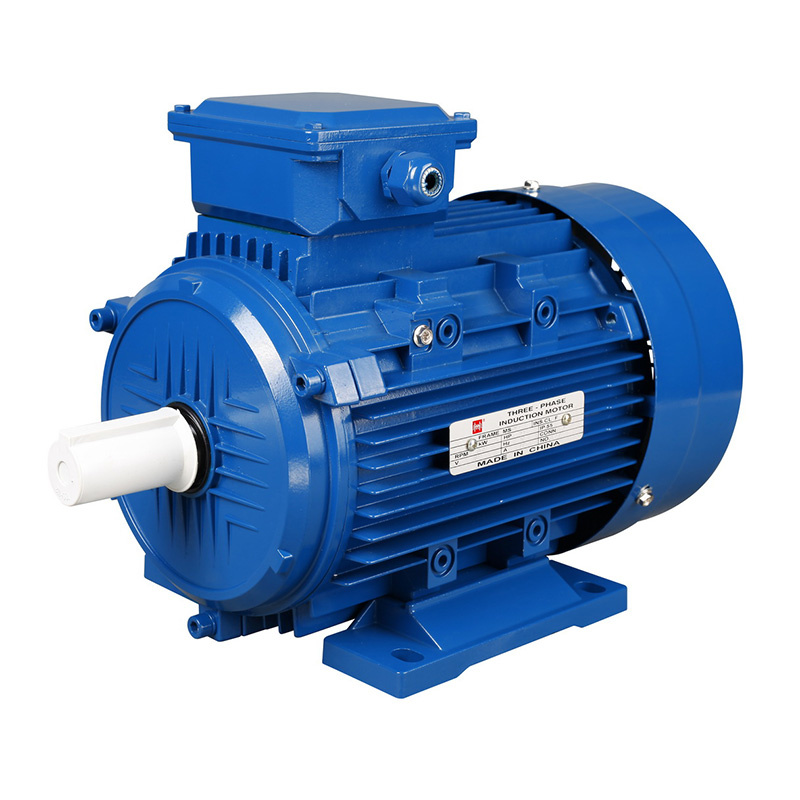

Introduction:Y2 series three-phase asynchronous motor is a new series which is adopt new technology, and it is a new product of Y series motor. Y2 series motors are totally enclosed, fan cooled, squirrel cage structure. These products have noted for novel design, beautiful appearance, low noise, high efficiency torque, excellent starting performance, compact structure, convenient use and maintenance, etc.. The motors are adopted with F class insulation, and according to the international through example of the insulation structure evaluation method design, so as to greatly improve the safety and reliability of the whole machine. Y2 series motors can be widely used as driving equitments of various machineries,such as machine tools, fans, pumps, compressors and transportation, agriculture and food processing.
Operating conditions:Ambient temperature:-15
ºC<
θ<40ºC
Altitude: not exceed 1000mRated voltage:380V or any voltage between 220V-760VRated frequency: 50Hz,60HzProtection class:IP44,IP54,IP55Insulation class: B,FCooling method: IC0141Duty:S1(continuous)Connection: Star-connection for up to 3kW, Delta-connection for 4kW and above.Technical date| Model | Output | Speed
(r.p.m) | Eff.
(%) | Power factor
(cosΦ) | Rated current
(A) | Rated
Torque Num | Ist/In | Tst/Tn | |
| KW | HP | 380 | 400 | 415 |
| Speed 3000RPM 2-Pole 50Hzz |
| Y2-801-2 | 0.75 | 1 | 2875 | 77.4 | 0.83 | 1.77 | 1.68 | 1.62 | 2.49 | 5.30 | 2.5 | 3 |
| Y2-S02-2 | 1.1 | 1.5 | 2875 | 79.6 | 0.84 | 2.50 | 2.37 | 1.29 | 3.65 | 7.00 | 3.2 | 3.8 |
| Y2-90S-2 | 1.5 | 2 | 2890 | 81.3 | 0.84 | 3.32 | 3.16 | 3.04 | 4.96 | 7.10 | 2.1 | 3.5 |
| Y2-90L-2 | 2.2 | 3 | 2890 | 83.2 | 0.85 | 4.72 | 4.48 | 4.32 | 7.27 | 6.90 | 2.4 | 3 |
| Y2-100L-2 | 3 | 4 | 2891 | 84.6 | 0.87 | 6.17 | 5.86 | 5.65 | 9.91 | 8.00 | 3.2 | 4 |
| Y2-112M-2 | 4 | 5.5 | 2914 | 85.8 | 0.88 | 8.04 | 7.64 | 7.36 | 13.11 | 7.50 | 2.5 | 3 |
| Y2-132S1-2 | 5.5 | 7.5 | 2937 | 87.0 | 0.86 | 11.2 | 10.6 | 10.2 | 17.88 | 7.50 | 2.7 | 3.5 |
| Y2-132S2-2 | 7.5 | 10 | 2940 | 88.1 | 0.88 | 14.6 | 13.9 | 13.4 | 24.36 | 7.50 | 2.4 | 3.3 |
| Y2-1601-2 | 11 | 15 | 2930 | 89.4 | 0.89 | 21.0 | 19.9 | 19.2 | 35.85 | 7.60 | 2.2 | 2.9 |
| Y2-160M2-2 | 15 | 20 | 2930 | 90.3 | 0.89 | 28.4 | 26.9 | 26.0 | 48.89 | 7.60 | 2.3 | 3 |
| Y2-160L-2 | 18.5 | 25 | 2937 | 90.9 | 0.89 | 34.7 | 33 | 31.8 | 60.15 | 7.40 | 2.3 | 3.1 |
| Y2-180M-2 | 22 | 30 | 2940 | 91.3 | 0.88 | 41.6 | 39.5 | 38.1 | 71.46 | 7.80 | 2.8 | 3.2 |
| Y2-200l1-2 | 30 | 40 | 2950 | 92.0 | 0.88 | 56.2 | 53.4 | 51.5 | 97.12 | 7.80 | 2.6 | 3 |
| Y2-200L2-2 | 37 | 50 | 2950 | 92.5 | 0.89 | 68.2 | 64.8 | 62.5 | 119.78 | 7.70 | 2.6 | 3 |
| Y2-225M-2 | 45 | 60 | 2960 | 92.9 | 0.89 | 82.5 | 78.4 | 75.6 | 145.19 | 7.50 | 2.4 | 2.6 |
| Y2-2S50M-2 | 55 | 75 | 2965 | 93.2 | 0.90 | 99.5 | 94.5 | 91.1 | 177.15 | 7.10 | 2.3 | 2.8 |
| Y2-280S-2 | 75 | 100 | 2970 | 93.8 | 0.90 | 135 | 128 | 123 | 241.16 | 7.40 | 2.5 | 2.8 |
| Y2-280M-2 | 90 | 125 | 2970 | 94.1 | 0.91 | 160 | 152 | 146 | 289.39 | 7.60 | 2.8 | 2.8 |
| Y2-315S-2 | 110 | 150 | 2975 | 94.3 | 0.91 | 194 | 185 | 178 | 353.11 | 6.90 | 2.4 | 2.8 |
| Y2-315M-2 | 132 | 180 | 2975 | 94.6 | 0.91 | 233 | 221 | 213 | 423.73 | 7,10 | 2.6 | 2.9 |
| Y2-31SL1-2 | 160 | 200 | 2975 | 94.8 | 0.92 | 278 | 265 | 255 | 513.61 | 7.10 | 2.5 | 2.9 |
| Y2-31SL2-2 | 200 | 270 | 2975 | 95.0 | 0.92 | 348 | 330 | 318 | 642.02 | 6.90 | 2.5 | 2.8 |
| Y2-355M-2 | 250 | 340 | 2980 | 95.0 | 0.92 | 434 | 412 | 398 | 801.17 | 7.00 | 2.5 | 2.8 |
| Y2-355L-2 | 315 | 430 | 2980 | 95.0 | 0.92 | 547 | 520 | 501 | 1009.48 | 7.00 | 2.5 | 2.9 |
| Speed 1500RPM 4-Pole 50Hz |
| Y2-802-4 | 0.75 | 1 | 1400 | 79.6 | 0.76 | 1.88 | 1.78 | 1.72 | 5.12 | 5 | 2.4 | 2.9 |
| Y2-90S-4 | 1.1 | 1.5 | 1440 | 81.4 | 0.77 | 2.66 | 2.53 | 2.44 | 7.3 | 6 | 3 | 3.5 |
| Y2-90L-4 | 1.5 | 2 | 1445 | 82.4 | 0.77 | 3.57 | 3.59 | 3.27 | 9.91 | 6.8 | 3.2 | 3.8 |
| Y2-100L1-4 | 2.2 | 3 | 1440 | 84.3 | 0.81 | 4.88 | 4.64 | 4.47 | 14.6 | 7 | 3 | 3.5 |
| Y2-I00L2-4 | 3 | 4 | 1140 | 85.5 | 0.82 | 6.50 | 6.18 | 5.95 | 19.9 | 7.5 | 2.6 | 3.3 |
| Y2-112M-4 | 4 | 5.5 | 1445 | 86.6 | 0.82 | 8.55 | 8.12 | 7.83 | 26.4 | 7 | 3.5 | 4 |
| Y2-132S-4 | 5.5 | 7.5 | 1455 | 87.7 | 0.83 | 11.5 | 10.9 | 10.5 | 36,1 | 6.4 | 2.2 | 2.8 |
| Y2-132M-4 | 7.5 | 10 | 1455 | 88.7 | 0.84 | 15.3 | 14.5 | 14.0 | 49.2 | 7 | 2.4 | 3 |
| Y2-160M-4 | 11 | 15 | 1460 | 89.8 | 0.84 | 22.1 | 21.0 | 20.3 | 71.9 | 6.9 | 2.5 | 2.9 |
| Y2-I60L-4 | 15 | 20 | 1460 | 90.6 | 0.85 | 29.6 | 28.1 | 27.1 | 98.1 | 7.5 | 2.5 | 3 |
| Y2-I80M-4 | 18.5 | 25 | 1470 | 91.2 | 0.86 | 35.8 | 34.0 | 32.8 | 120.2 | 7.8 | 2.6 | 3.1 |
| Y2-180L-4 | 22 | 30 | 1470 | 91 | 0.86 | 42.3 | 402 | 38.7 | 142.9 | 7.5 | 2.2 | 2.3 |
| Y2-200L-4 | 30 | 40 | 1470 | 92.3 | 0.86 | 57.3 | 54.4 | 52.5 | 194.9 | 7.1 | 2.4 | 2.9 |
| Y2-225S-4 | 37 | 50 | 1480 | 92.7 | 0.87 | 69.7 | 66.2 | 63.8 | 238.8 | 7.5 | 2.5 | 2.7 |
| Y2-225M-4 | 45 | 60 | 1480 | 93.1 | 0.87 | 84.3 | 80.1 | 77.2 | 290.4 | 7.6 | 2.5 | 2.8 |
| Y2-250M-4 | 55 | 75 | 1480 | 93.5 | 0.87 | 103 | 97.5 | 94.0 | 354.9 | 7.3 | 2.6 | 2.7 |
| Y2-280S-4 | 75 | 100 | 1480 | 94.0 | 0.87 | 139 | 132 | 127 | 484 | 7.6 | 2.7 | 2.7 |
| Y2-280M-4 | 90 | 125 | 1480 | 94.2 | 0.87 | 167 | 158 | 153 | 580.7 | 7.5 | 2.7 | 27 |
| Y2-315S-4 | 110 | 150 | 1485 | 94.5 | 0.88 | 201 | 191 | 184 | 707.4 | 7.1 | 2.7 | 2.9 |
| Y2-315M-4 | 132 | 180 | 1485 | 94.7 | 0.88 | 240 | 228 | 220 | 88.9 | 7.3 | 2.7 | 2.9 |
| Y2-315L1-4- | 160 | 200 | 1485 | 94.9 | 0.89 | 288 | 273 | 263 | 1029 | 7.4 | 3 | 3 |
| Y2-315L2-4 | 200 | 270 | 1485 | 95.1 | 0.89 | 359 | 341 | 328 | 1286 | 7.6 | 3 | 3 |
| Y2-35SM-4 | 250 | 340 | 1490 | 95.1 | 0.90 | 443 | 421 | 406 | 1602 | 7.5 | 2.8 | 2.9 |
| Y2-355L-4 | 315 | 430 | 1490 | 95.1 | 0.90 | 559 | 531 | 511 | 2019 | 7.4 | 2.6 | 2.8 |
| Speed 1000RPM 6-Pole 50Hz |
| Y2-90S-6 | 0.75 | 1 | 934 | 75.9 | 0.72 | 2.08 | 1.98 | 1.90 | 7.67 | 4.5 | 2.2 | 2.4 |
| Y2-901-6 | 1.1 | 1.5 | 945 | 78.1 | 0.72 | 2.97 | 2.82 | 2.72 | 11,1 | 4.S | 2.4 | 2.6 |
| Y2000L-6 | 1.5 | 2 | 945 | 79.8 | 0.75 | 3.8 | 3.61 | 3.48 | 15.2 | 4.2 | 1.8 | 2.2 |
| Y2-112M-6 | 2.2 | 3 | 960 | 81.8 | 0.76 | 5.37 | 5.10 | 4.92 | 21.9 | 4.5 | 2.3 | 2.8 |
| Y2-132S-6 | 3 | 4 | 964 | 83.3 | 0.76 | 7.19 | 6.83 | 6.58 | 29.7 | 4.5 | 1.8 | 2.4 |
| Y2-132M1-6 | 4 | 5.5 | 965 | 84.6 | 0.76 | 9.43 | 8.96 | 8.63 | 39.6 | 5 | 2.3 | 2.7 |
| Y2-132M2-6 | 5.5 | 7.5 | 965 | 96.0 | 0.77 | 12.6 | 12.00 | 11.5 | 54.4 | 5.5 | 1.9 | 2.8 |
| Y-160M-6 | 7.5 | 10 | 970 | 87.2 | 0.78 | 16.7 | 15.9 | 15.3 | 73.8 | 6.5 | 2 | 3 |
| Y2-160L-6 | 11 | 15 | 970 | 88.7 | 0.78 | 24.1 | 22.9 | 22.1 | 108.3 | 7.5 | 2.4 | 3.3 |
| Y2-180L-6 | 15 | 20 | 975 | 89.7 | 0.81 | 31.4 | 29.8 | 28.7 | 146.9 | 6.4 | 2 | 2.7 |
| Y2-200L1-6 | 18.5 | 25 | 980 | 90.4 | 0.81 | 38.3 | 36.4 | 35.1 | 180.3 | 7 | 2.3 | 3 |
| Y2-200L2-6 | 22 | 30 | 980 | 90.9 | 0.83 | 44.3 | 42.0 | 40.5 | 214.4 | 7 | 2.3 | 2.8 |
| Y2-225M-6 | 30 | 40 | 980 | 91.7 | 0.84 | 59.2 | 56.2 | 54.2 | 292.3 | 6.5 | 2.2 | 2.7 |
| Y2-250M-6 | 37 | 50 | 980 | 92.2 | 0.86 | 70.8 | 67.3 | 64.8 | 360.6 | 6.9 | 2.5 | 2.7 |
| Y2-280S-6 | 45 | 60 | 980 | 92.7 | 0.86 | 85.8 | 81.5 | 78.5 | 438.5 | 7 | 2.2 | 2.4 |
| Y2-280M-6 | 55 | 75 | 980 | 93.1 | 0.86 | 104 | 99.2 | 95.6 | 536 | 7.1 | 2.4 | 2.5 |
| Y2-315S-6 | 75 | 100 | 985 | 93.7 | 0.86 | 141 | 134 | 129 | 727.2 | 7.3 | 2.8 | 3 |
| Y2-315M-6 | 90 | 125 | 985 | 94.0 | 0.86 | 169 | 160 | 155 | 872.6 | 7.1 | 2.7 | 2.9 |
| Y2-315L1-6 | 110 | 150 | 985 | 94.3 | 0.86 | 206 | 196 | 189 | 1066 | 7.4 | 2.9 | 2.9 |
| Y2-315L2-6 | 132 | 180 | 985 | 94.6 | 0.87 | 243 | 231 | 223 | 1280 | 7.6 | 3 | 3.1 |
| Y2-355M1-6 | 160 | 200 | 990 | 94.8 | 0.88 | 291 | 277 | 267 | 1543 | 7.6 | 3.3 | 3.1 |
| Y2-3S5M2-6 | 200 | 270 | 990 | 95.0 | 0.88 | 363 | 345 | 333 | 1929 | 7.8 | 3 | 3 |
| Y2-355L-6 | 250 | 340 | 990 | 95.0 | 0.88 | 454 | 432 | 416 | 2412 | 7.7 | 3.1 | 3 |
