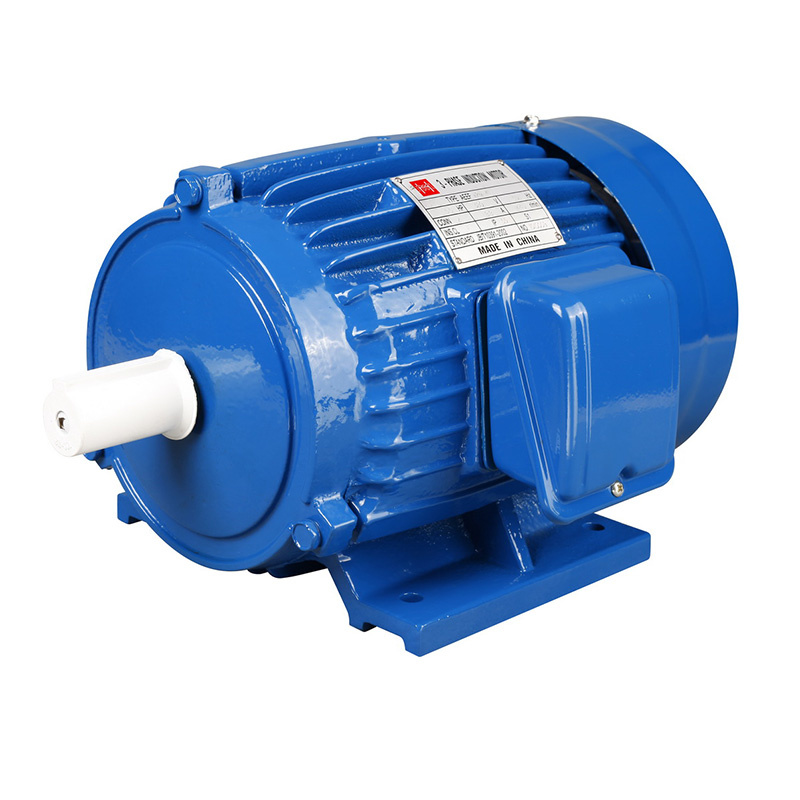

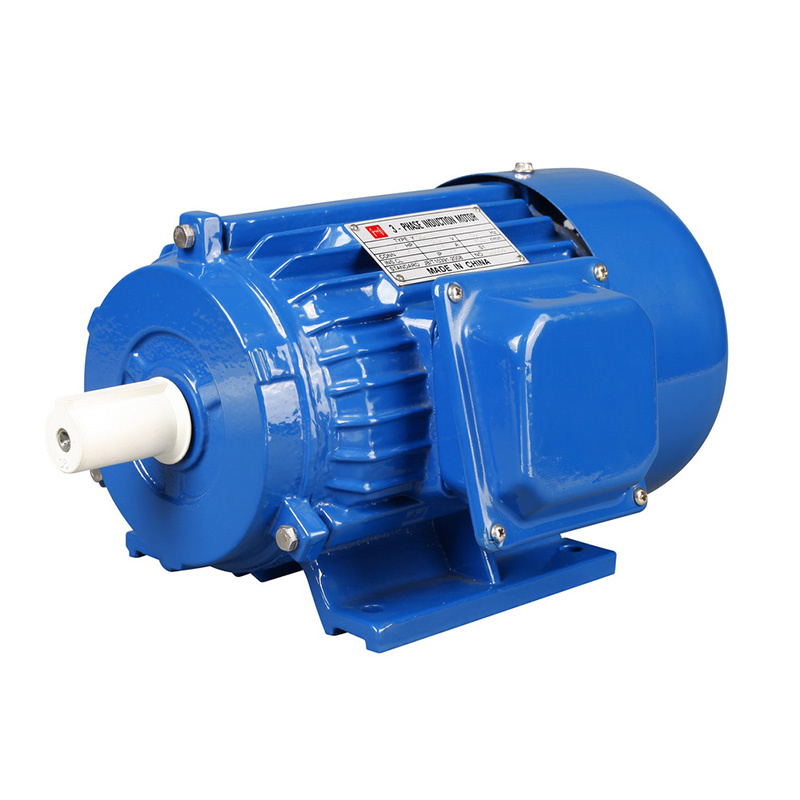

Y Series Three-Phase Asynchronous Motor

Name: Y Series Three-Phase Asynchronous Motor
Brand: all-electronics-online.com
SKU: 716865862
Availability: InStock
Rating: 4.4 (56 reviews)

Price:	US $ 57/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Introduction:
Y series motor is totally enclosed self fan cooled squirrel cage three-phase asynchronous motor, which is the basic series of the latest design. In accordance with the relevant provisions of the IEC standard. With high efficiency, energy saving, high starting torque, low noise, small vibration, high reliability, easy to use and convenient maintenance and so on. The general situation is widely used in inflammable, explosive or corrosive gas, and no special requirements to the mechanical equipment, such as metal cutting machines, pumps, fans, mixer, agricultural machinery, transport machinery and food machinery etc..
Operating conditions:
Ambient temperature:-15ºC<θ<40ºC
Altitude: not exceed 1000m
Rated voltage:380V or any voltage between 220V-760V
Rated frequency: 50Hz,60Hz
Protection class:IP44,IP54,IP55
Insulation class: B,F
Cooling method: IC0141
Duty:S1(continuous)
Connection: Star-connection for up to 3kW,
Delta-connection for 4kW and above.
Technical date

Model	Rated Output		Full Load
Model	KW	HP	Speed (r.p.m)	Current (A)	Eff (%)	Power factor (cosθ)	Ist/In	Tst/Tn
380V 50Hz synchronous Speed 3000r/min(2 poles)
Y-801-2	0.75	1	2830	1.81	75	0.84	6.5	2.2	2.3
Y-802-2	1.1	1.5	2830	2.52	77	0.86	7.0	2.2	2.3
Y-90S-2	1.5	2	2840	3.44	78	0.85	7.0	2.2	2.3
Y-90L-2	2.2	3	2840	4.83	80.5	0.86	7.0	2.2	2.3
Y-100L-2	3	4	2870	6.39	82	0.87	7.0	2.2	2.3
Y-112M-2	4	5.5	2890	8.17	85.5	0.88	7.0	2.2	2.3
Y-132S1-2	5.5	7.5	2900	11.1	85.5	0.88	7.0	2.0	2.3
Y-132S2-2	7.5	10	2900	15.0	86.2	0.88	7.0	2.0	2.3
Y-160M1-2	11	15	2930	21.8	87.2	0.88	7.0	2.0	2.3
Y-160M2-2	15	20	2930	29.4	88.2	0.89	7.0	2.0	2.3
Y-160L-2	18.5	25	2930	35.5	89	0.89	7.0	2.0	2.2
Y-180M-2	22	30	2940	42.2	89	0.89	7.0	2.0	2.2
Y-200L1-2	30	40	2950	56.9	90	0.89	7.0	2.0	2.2
Y-200L2-2	37	50	2950	69.8	90.5	0.89	7.0	2.0	2.2
Y-225M-2	45	60	2970	83.9	91.5	0.89	7.0	2.0	2.2
Y-250M-2	55	75	2970	103	91.5	0.89	7.0	2.0	2.2
Y-280S-2	75	100	2970	139	92	0.89	7.0	2.0	2.2
Y-280M-2	90	125	2970	166	92.5	0.89	7.0	2.0	2.2
Y-315S-2	110	150	2980	203	92.5	0.89	6.8	1.8	2.2
Y-315M-2	132	180	2980	242	93	0.89	6.8	1.8	2.2
Y-315L1-2	160	220	2980	292	93.5	0.89	6.8	1.8	2.2
Y-315L2-2	200	270	2980	365	93.5	0.89	6.8	1.8	2.2
380V 50Hz synchronous Speed 1500r/min(4 poles)
Y-801-4	0.55	0.75	1390	1.51	73	0.76	6.0	2.4	2.3
Y-802-4	0.75	1	1390	2.01	74.5	0.76	6.0	2.3	2.3
Y-90S-4	1.1	1.5	1400	2.75	78	0.78	6.5	2.3	2.3
Y-90L-4	1.5	2	1400	3.65	79	0.79	6.5	2.3	2.3
Y-100L1-4	2.2	3	1430	5.03	81	0.82	7.0	2.2	2.3
Y-100L2-4	3	4	1430	6.82	82.5	0.81	7.0	2.2	2.3
Y-112M-4	4	5.5	1440	8.77	84.5	0.82	7.0	2.2	2.3
Y-132S-4	5.5	7.5	1440	11.6	85.5	0.84	7.0	2.2	2.3
Y-132M-4	7.5	10	1440	15.4	87	0.85	7.0	2.2	2.3
Y-160M-4	22	15	1460	22.6	88	0.84	7.0	2.2	2.3
Y-160L-4	15	20	1460	30.3	88.5	0.85	7.0	2.2	2.3
Y-180M-4	18.5	25	1470	35.9	91	0.86	7.0	2.0	2.2
Y-180L-4	22	30	1470	42.5	91.5	0.86	7.0	2.0	2.2
Y-200L-4	30	40	1470	56.8	92.2	0.87	7.0	2.0	2.2
Y-225S-4	37	50	1480	70.4	91.8	0.87	7.0	1.9	2.2
Y-225M-4	45	60	1480	84.2	92.3	0.88	7.0	1.9	2.2
Y-250M-4	55	75	1480	103	92.6	0.88	7.0	2.0	2.2
Y-280S-4	75	100	1480	140	92.7	0.88	7.0	1.9	2.2
Y-280M-4	90	125	1480	164	93.5	0.89	6.8	1.9	2.2
Y-315S-4	110	150	1480	201	93.5	0.89	6.8	1.9	2.2
Y-315M-4	132	180	1490	240	94	0.89	6.8	1.9	2.2
Y-315L1-4	160	220	1490	289	94.5	0.89	6.8	1.9	2.2
Y-315L2-4	200	270	1490	361	94.5	0.89	6.8	1.9	2.2
380V 50Hz synchronous Speed1000r/min(6Poles)
Y-90S-6	0.75	1	910	2.25	72.5	0.70	5.5	2.0	2.2
Y-90l-6	1.1	1.5	910	3.16	73.5	0.72	5.5	2.0	2.2
Y-100L-6	1.5	2	940	3.97	77.5	0.74	6.0	2.0	2.2
Y-112M-6	2.2	3	940	5.16	80.5	0.74	6.0	2.0	2.2
Y-132S-6	3.0	4	960	7.23	83	0.76	6.5	2.0	2.2
Y-132M1-6	4.0	5.5	960	9.40	84	0.77	6.5	2.0	2.2
Y-132M2-6	5.5	7.5	960	12.6	85.3	0.78	6.5	2.0	2.2
Y-160M-6	7.5	10	970	17.0	86	0.78	6.5	2.0	2.0
Y-160L-6	11.0	15	970	24.6	87	0.78	6.5	2.0	2.0
Y-180L-6	15.0	20	970	31.4	89.5	0.81	6.5	1.8	2.0
Y-200L1-6	18.5	25	970	37.7	89.8	0.83	6.5	1.8	2.0
Y-200L2-6	22.0	30	970	44.6	90.2	0.83	6.5	1.8	2.0
Y-225M-6	30.0	40	980	59.5	90.2	0.85	6.5	1.7	2.0
Y-250M-6	37.0	50	980	72.0	90.8	0.86	6.5	1.8	2.0
Y-280S-6	45.0	60	980	85.4	92	0.87	6.5	1.8	2.0
Y-280M-6	55	75	980	104	92	0.87	6.5	1.8	2.0
Y-315S-6	75	100	990	141	92.8	0.87	6.5	1.8	2.0
Y-315M-6	90	125	990	169	93.2	0.87	6.5	1.8	2.0
Y-315L-6	110	150	990	206	93.5	0.87	6.5	1.8	2.0
Y-315L2-6	132	180	990	246	93.8	0.87	6.5	1.8	2.0
380V 50Hz synchronous Speed 750r/min(8Poles)
Y-132S-8	2.2	3	710	5.85	80.5	0.71	5.5	2.0	2.0
Y-132M-8	3.0	4	710	7.72	82	0.72	5.5	2.0	2.0
Y-160M1-8	4.0	5.5	720	9.91	84	0.73	6.0	2.0	2.0
Y-160M2-8	5.5	7.5	720	13.3	85	0.74	6.0	2.0	2.0
Y-160L-8	7.5	10	720	17.7	86	0.75	5.5	2.0	2.0
Y-180L-8	11.0	15	730	24.8	87.5	0.77	6.0	2.0	2.0
Y-200L-8	15.0	20	730	34.1	88	0.76	6.0	2.0	2.0
Y-225S-8	18.5	25	730	41.3	89.5	0.76	6.0	1.7	2.0
Y-225M-8	22.0	30	730	47.6	90	0.78	6.0	1.8	2.0
Y-250M-8	30.0	40	740	63.0	90.5	0.80	6.0	1.8	2.0
Y-280S-8	37.0	50	740	78.2	91	0.79	6.0	1.8	2.0
Y-280M-8	45.0	60	740	93.2	91.7	0.80	6.0	1.8	2.0
Y-315S-8	55.0	75	740	114	92	0.80	6.0	1.6	2.0
Y-315M-8	75.0	100	740	152	92.5	0.81	6.5	1.6	2.0
Y-315L1-8	90.0	125	740	179	93	0.82	6.5	1.6	2.0
Y-315L2-8	110.0	150	740	218	93.3	0.82	6.3	1.6	2.0
380V 50Hz synchronous Speed 600r/min(10Poles)
Y315S-10	45	60	590	101	91.5	0.74	6.0	1.4	2.0
Y-315M-10	55	75	590	123	92	0.74	6.0	1.4	2.0
Y-315L2-10	75	100	590	164	92.5	0.75	6.0	1.4	2.0

Prod Model:	Y
Rated Frequency:	50Hz, 60Hz
Rated Voltage:	380V or Any Voltage Between 220V-760V
Protection Class:	IP44, IP54, IP55
Cooling Method:	IC0141
Duty:	S1(Continuous)
Application:	Industrial
Operating Speed:	Constant Speed
Number Of Stator:	Three-Phase
Species:	Y, Y2 Series Three-Phase
Rotor Structure:	Squirrel-Cage
Casing Protection:	Closed Type
Starting Mode:	Variable Frequency Starting
Brand:	Tongbo
Number Of Poles:	2, 4, 6, 8

FUAN TONGBO ELECTRICAL MACHINERY CO. Ltd. was founded on July 1st, 2009 in FU'AN city, "the city of electric machinery", as an export oriented manufacturer of Electric Motors, AC Generators and Generator Sets. We specialize in R&D, production, sales and customer service of said items and pride ourselves as professionals in related area.

Our own brand "TONG BO" consists of different models of motors listed as below:

1. Three phase asynchronous motor - Y series, Y2 series, AEEF series etc.

2. Single phase asynchronous motor --YC series, YL series, JY series

3. Aluminum Casing three phase asynchronous motor --MS series

4. Aluminum Casing single phase asynchronous motor--MC series, MY series, ML series

"TONGBO" Brand AC generator models are listed as below:

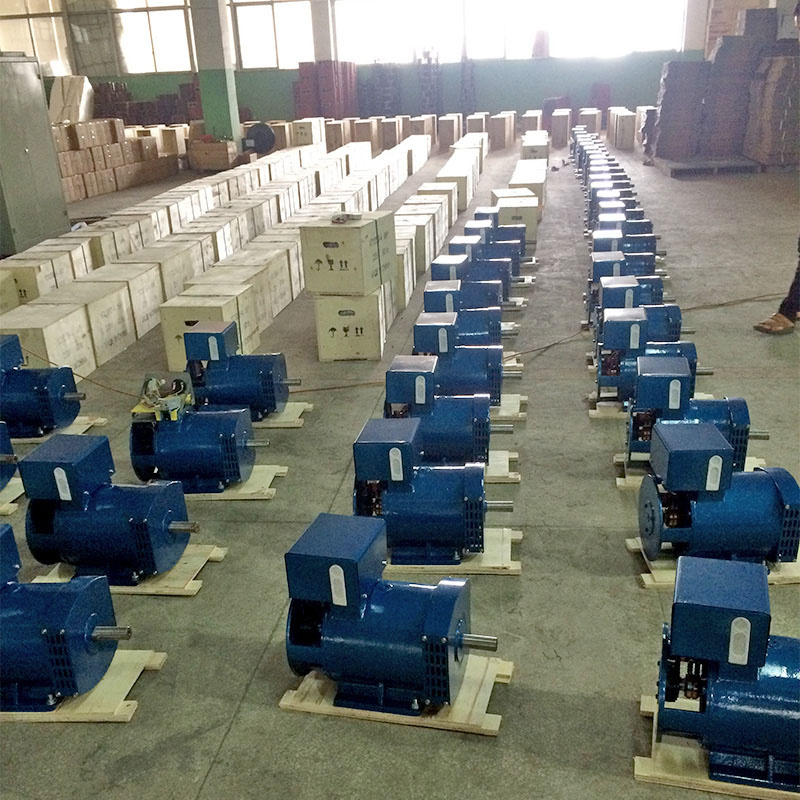

1. Single phase ST series with brush

2. Three phase STC series with brush

3. Copy Stamford TBS brushless series

We also have generator sets like CUMMINGS series generator set, YUCHAI series generator set, WEICHAI series generator sets etc.

Throughout design, manufacturing process, material selection, production, equipment testing, quality control, we make every endeavor to ensure our production is in strict accordance with ISO9001 Quality Management System in order to yield high quality products.

Our products travel widely from South-east Asia to as far as Middle-east, Africa also US and European countries. TONGBO has won a high admiration and is widely trusted at home and abroad.

Our goal is to build "TONGBO" into a world-renowned brand. In order to achieve that, we promise to run an honest business by putting quality and customer satisfaction as our top priorities. With "Honesty, Team-spirit, Responsibility, Hard-work and Gratitude "as essence of our corporate culture, We shall continue to provide our valued customers with high quality products and professionalism to the best of our abilities.
