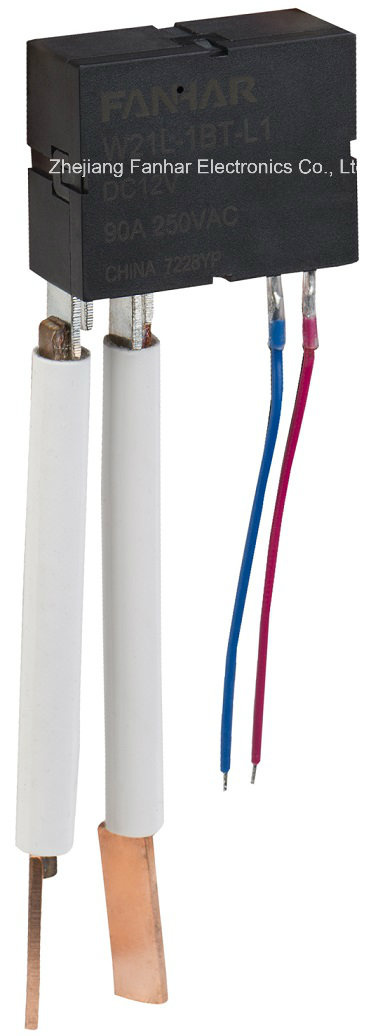

Latching Relay for Automatic Control Device

Name: Latching Relay for Automatic Control Device
Brand: all-electronics-online.com
SKU: 828034825
Availability: InStock
Rating: 4.6 (52 reviews)

Price:	US $ 1.8-2.2/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Basic Info
Model NO.: W21L
Contact Form: 1B = 1 CLOSE
Contact material: T=AgSnO2
Coil Type: L1= Single Coil   L2 = Double Coil
Action Polarity: Nil:Standard Polarity   R = Reverse Polarity
Dimension: 38.5*30*17.5 MM
Weight: Approx 50g
Trademark: FANHAR
Origin: China
Product Description
1. 90A contact switching capability
2. Only needs pulse excitation, low power consumption and small size.
3.Be able to weld accessories according to clients' needs.
4. In line with the standard of IEC62055-31: 2005 version.

Contact Data:

Contact Form	1B
Rated load	90A 250VAC
Max Switching Voltage	250VAC
Max Switching Current	90A
Max Switching Capacity	22500VA
Min Allowing load	5VDC 100mA
Contact Resistance	2.0mΩ (at 6VDC 1A)
Insulation Resistance	500MΩ (at 500VDC)

General Data:

Withstand Voltage Between open contacts	2000VAC 1min
Between coil and contacts	4000VAC 1min
Withstand impact voltage	Between coil and contacts 8kv(1.2X50us)
Operate Time	Max.20ms
Release Time	Max.20ms
Mechanical life	1,000,000 ops ON/OFF = 0.1s/0.1s
Electrical life	90A 250VAC 10,000 ops ON/OFF=1s/9s
Impact Resistance Misoperation Durability	98m/s² Approx10G 1000m/s² Approx100G
Vibration Resistance Misoperation Durability	10 - 55 Hz 1.5mm Double Amplitude 10 - 55 Hz 1.5mm Double Amplitude
Temperature Range	-40ºC to +70ºC
Humidity	5% to 85%
Installation type	PCB Mounting, Fixing Pate Mounting
Certification	UL TUV ISO ROHS CQC

Coil Data:
Single Coil:

Coil rated voltage	Operating voltage	Releasing Voltage	Coil rated Current (±10%)	Coil resistance(±10%)	Rated consumed power	Allowing voltage
DC 6V	Below 75% rated voltage (initial)	Below 75% rated voltage (initial)	250mA	24Ω	1.5W	90-150 % Rated voltage
DC 9V			167mA	54Ω
DC 12V			125mA	96Ω
DC 24V			62.5mA	384Ω

Double Coil:

Coil rated voltage	Operating voltage	Releasing Voltage	Coil rated Current (±10%)	Coil resistance(±10%)	Rated consumed power	Allowing voltage
DC 6V	Below 75% rated voltage (initial)	Below 75% rated voltage (initial)	500/500mA	12/12Ω	3.0W	90-150 % Rated voltage
DC 9V			334/334mA	27/27Ω
DC 12V			250/250mA	48/48Ω
DC 24V			125/125mA	192/192Ω

Prod Model:	W21L
Certification:	UL TUV CQC
Contact Material:	Agsno2
UL Insulation Class:	F
Operate Time:	Max.20ms
Release Time:	Max.20ms
Installation Type:	PCB
Weight:	50g
Contact Form:	Close
