M8 4pin Non-Shielded Field Wireable Assembly Type Connector

Name: M8 4pin Non-Shielded Field Wireable Assembly Type Connector
Brand: all-electronics-online.com
SKU: 824225145
Availability: InStock
Rating: 4.4 (112 reviews)

Price:	Negotiable/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

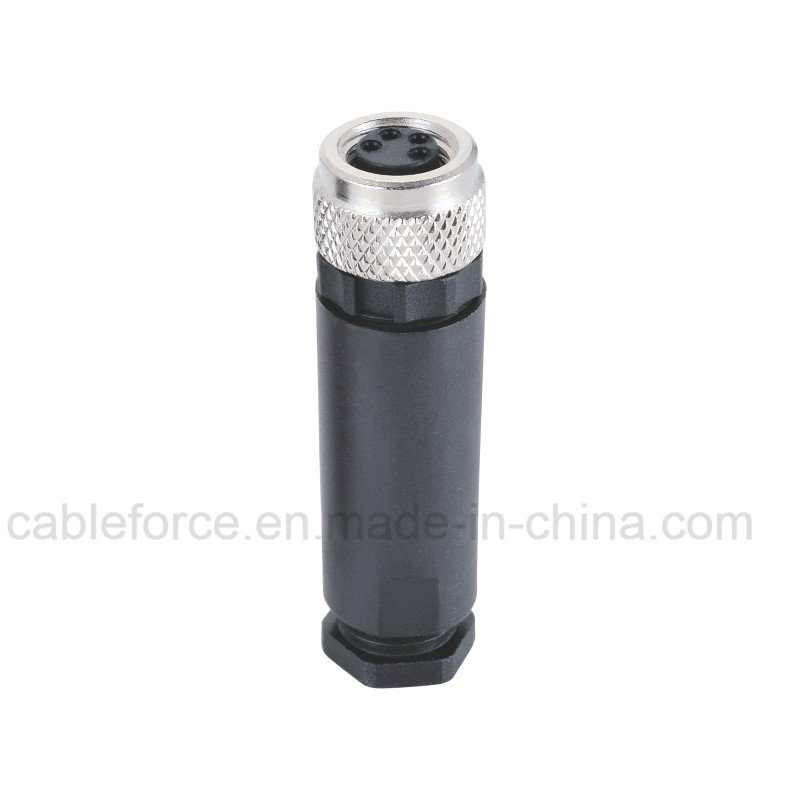

M8 4pin Non-shielded field wireable assembly type connector

1.Descriptions

The field installable connectors permit high flexibility for wiring in the field. For quick assembly of often differing cable lengths, CABLEFORCE supplys straight male and female type connectors for free assembly with screw type wire connection.
(1) 3, 4 poles are available
(2) Screw joint wire connection
(3) Degree of protection IP 67
(4) Operating voltage 300V-DC/ 250V-AD, current 4A
(5)Anti-vibration locking screw design

2.Material data

Contacts plating:Gold plated, thickness 3μ"

Insert/ Housing:NYLON66 + GF

Coupling nut/screw:Brass with nickel plated screw

Overmold/ Shell:NYLON66 + GF

Connector contacts:Brass with gold plated

Standard	IEC61076-2-104	Orientation	Straight
Wire gauge	24AWG/0.25mm2	Coding	A-code
Wire Termination	Screw-joint	IP rating	IP67
Insulation resistance	≥100 MΩ	Rated current	3 A
Contacts resistance	≤ 5 mΩ	Rated voltage	60 V

3.Applications

Sensor and actuators
Industrial camera
Industrial I/O connections
Material handling
Pharmaceutical manufacturing
Robotic systems; Semiconductors
Packaging, Labeling & Logistic

4.Product centificate

5.Product packing
(1) Our standard packing: Individual part with transparent PE bag with label;
(2) Carton size: 44.5*36.5*23.5(mm)
(3) OEM package available
(4) Delivery : 1~ 3 weeks

6.FAQ
(1) Q:Are you a manufacturer or trading company?
A:We are a connector factory.

(2) Q: What is the necessary information needed for quotation?
A:The series(M5,M8,M12,7/8"), coding, male or female, pin number, cable length etc.

(3) Q:What does Cableforce can provide for the product' certification?
A: IP67, CE and RoHS.

(4) Q:Can you provide samples?
A:Of course can be provided.

(5) Q:Sample lead time?
A:2-4 workdays

(6) Q: Volume order lead time?
A:3-10 workdays

(7) Q: How do you ship the finished product?
A:we can contact the shipping company or your shipping agent.The formal shipping way:DHL,FEDEX,UPS,TNT

Prod Model:	MB04A2LWG3AB25
Connection Type:	Field Wireable
Shielding:	Non-Shielded
Wire Termination:	Screw-Joint
Number Of Contacts:	4 Pin

Company Profile

Cableforce focuses on the industrial cable and connector's Research, Development, Sales and Manufacture. We located in Dongguan City, in the southern China, with 2100 premises and efficient modern machinery and equipments for tooling & prototyping, cable cutting, soldering, crimping, plastic injection molding, testing and manual assembly lines allow products to be manufactured in both large volume and small customized lots whilst maintaining a favorable cost and quality ratio.

Business

CABLEFORCE globally offers a wide variety of industrial connectors and cable connectivity solutions to meet either standard or harsh environment signal and power transmission application. Its wide range of metric circular connectors and cable assembly that fit almost any standard sensor or actuator application and includes features such as accurate IP ratings, a wide range of cable jackets, and multiple contacts pin configurations, and high quality rugged materials.

Products range

Circular connectors for industrial applications: M5/ M8/ M12/ M23/ 7/8" series;

Field-Bus cables: DeviceNet cable, Ethernet cable, Profibus cable, Profinet cable, CANopen;

NMEA 2000 cable and connectors: Backbone cable, Drop line cables, T connectors, Terminators;

I/O Link Connectors: USB 2.0/3.0, RJ-45, D-SUB connectors.
