Multilayer PCB 0.4 mm Thick 4 Layer with Immersion Gold Over Nickel
| Price: |
US $ 0.75/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-139-V1.39 |
| Final Foil External: |
1 Oz |
| Final Foil Internal: |
0.5 Oz |
| Final Height Of PCB: |
0.4mm |
| Surface Finish: |
Immersion Gold |
| Solder Mask Color: |
Green |
| Legend Color: |
White |
| Minimum Trace And Space: |
4 Mil/4 Mil |
| Minimum / Maximum Holes: |
0.3/5.0mm |
| Test: |
100% Electrical Test Prior Shipment |
| Board Plating: |
0.0029" |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description

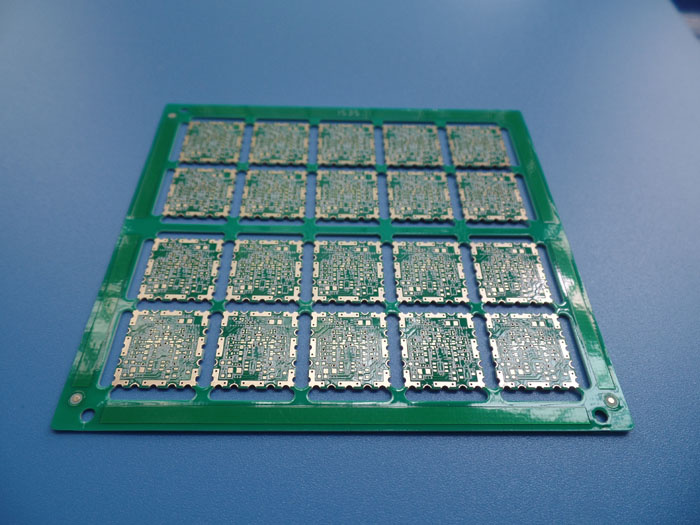

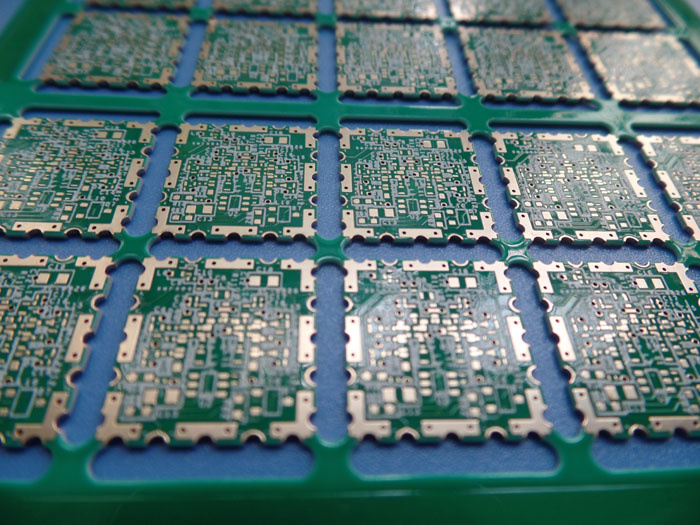

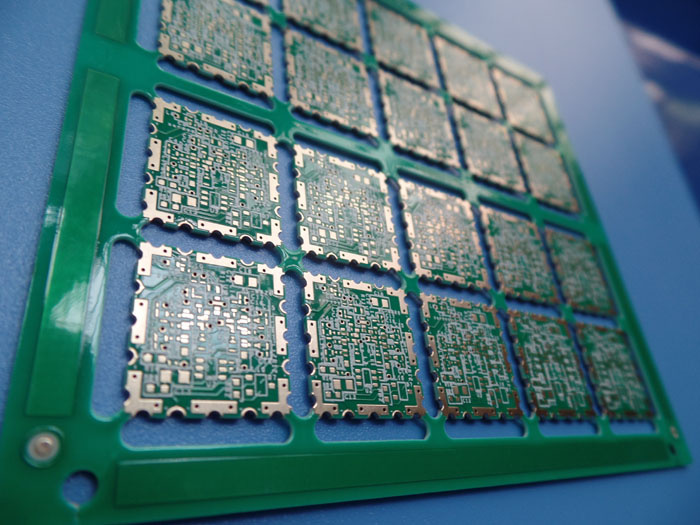

Multilayer PCB 4 Layer Circuit Board At 0.4 mm Thick FR-4 Immersion Gold Applied In
Power Rails
Commodity IntroductionThis is a type of FR-4 PCB for the application of Power Rails. It's a 4 layer board at 0.4mm thick.
The base laminate is from ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated per IPC
6012 Class 2 using supplied Gerber data. Each 10 boards or panels are packed separately.
Parameters & Data Sheet| PCB SIZE | 100 x 100mm=20PCS |
| BOARD TYPE | |
| Number of Layers | Multilayer PCB, 4 layer PCB |
| Surface Mount Components | YES |
| Through Hole Components | NO |
| LAYER STACKUP | copper ------- 18um(0.5oz)+plate TOP layer |
| Prepreg 0.102mm |
| copper ------- 18um(0.5oz) MidLayer 1 |
| FR-4 0.102mm |
| copper ------- 18um(0.5oz) MidLayer 2 |
| Prepreg 0.102mm |
| copper ------- 18um(0.5oz)+plate BOT Layer |
| TECHNOLOGY | |
| Minimum Trace and Space: | 4mil/4mil |
| Minimum / Maximum Holes: | 0.3/5.0mm |
| Number of Different Holes: | 9 |
| Number of Drill Holes: | 1251 |
| Number of Milled Slots: | 60 |
| Number of Internal Cutouts: | 0 |
| Impedance Control: | no |
| Number of Gold finger: | 0 |
| BOARD MATERIAL | |
| Glass Epoxy: | FR-4 TG135ºC, CTI 175V-249V, er<5.4. ITEQ Supplied |
| Final foil external: | 1oz |
| Final foil internal: | 0.5oz |
| Final height of PCB: | 0.4mm ±0.1 |
| PLATING AND COATING | |
| Surface Finish | Immersion gold 0.05µm over 3µm Nickel (13.2% area) |
| Solder Mask Apply To: | TOP and Bottom, 12micron Minimum |
| Solder Mask Color: | Green, PSR-2000GT600D, Taiyo Supplied |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | TOP |
| Colour of Component Legend | White, S-380W, Taiyo Supplied. |
| Manufacturer Name or Logo: | Marked on the board in a conductor and \leged FREE AREA |
| VIA | Plated through hole(PTH), via tented.
Castellation Holes on edge(Half hole) |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" |
| Board plating: | 0.0029" |
| Drill tolerance: | 0.002" |
| TEST | 100% Electrical Test prior shipment |
| APPLICATION: | Power rails, GPRS Modem
3G USB
Modem Wifi 3G
3G Wireless Router
AC DC Inverter |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
