OSP Finish PCB Board 2 Layer PTFE with 1.6mm Thick
| Price: |
US $ 1.26/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-136-V1.36 |
| Final Foil External: |
1 Oz |
| Final Height Of PCB: |
1.6mm |
| Surface Finish: |
OSP |
| Solder Mask Color: |
Gloss Green, Taiyo Psr-2000gt600d |
| Colour Of Component Legend: |
No Silkscreen Required. |
| Minimum Trace And Space: |
6 Mil/9 Mil |
| Minimum / Maximum Holes: |
0.9/2.3mm |
| Test: |
100% Electrical Test Prior Shipment |
| Type: |
Rigid Circuit Board |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
| Dielectric: |
PTFE Er= 2.55 |
Product Description

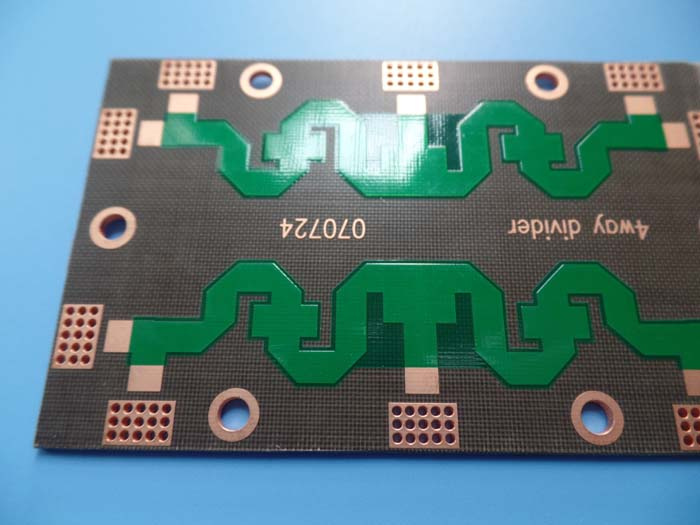

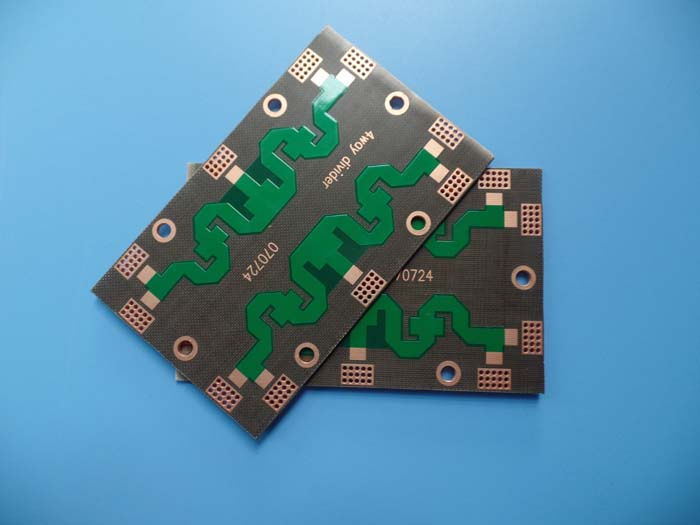

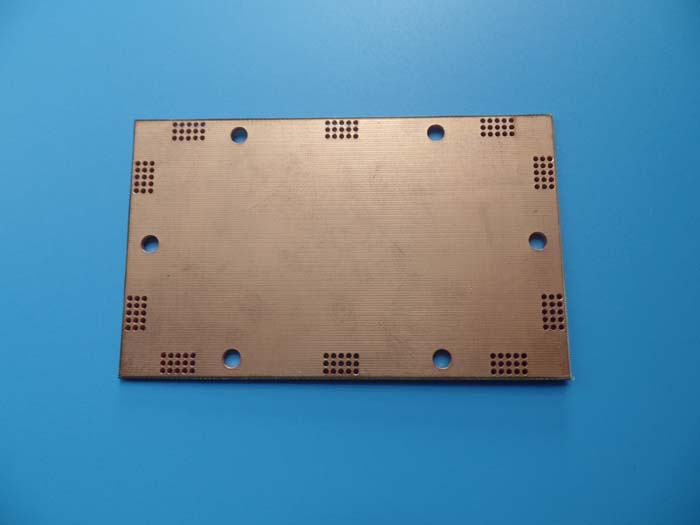

2 Layer High frequency PCB UL Certified PTFE PCB Green Solder Mask Applied In 4 Way Divider
Commodity IntroductionThis is a type of PTFE
ER=2.55 PCB for the application of 4 Way Divider. It's a double sided layer board at 1.6
mm thick. The base laminate is from KB, Solder mask and silkscreen from Taiyo. It's fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels are packed separately.
Parameters & Data Sheet| PCB SIZE | 89 x 61mm=1PCS |
| BOARD TYPE | |
| Number of Layers | Double sided PCB |
| Surface Mount Components | NO |
| Through Hole Components | YES |
| LAYER STACKUP | copper ------- 18 um(0.5 oz)+PLATE |
| PTFE 1.5mm |
| copper ------- 18 um(0.5 oz)+PLATE |
| TECHNOLOGY | |
| Minimum Trace and Space: | 6 mil/9 mil |
| Minimum / Maximum Holes: | 0.9/2.3mm |
| Number of Different Holes: | 3 |
| Number of Drill Holes: | 156 |
| Number of Milled Slots: | 0 |
| Number of Internal Cutouts: | 1 |
| Impedance Control | no |
| BOARD MATERIAL | |
| Glass Epoxy: | PTFE ER= 2.55 |
| Final foil external: | 1 oz |
| Final foil internal: | 0 oz |
| Final height of PCB: | 1.6mm ±0.16 |
| PLATING AND COATING | |
| Surface Finish | OSP, Thickness >0.2 µm |
| Solder Mask Apply To: | TOP, 12micron Minimum |
| Solder Mask Color: | Gloss Green, Taiyo PSR-2000GT600D |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | No silkscreen required. |
| Colour of Component Legend | No silkscreen required. |
| Manufacturer Name or Logo: | No silkscreen required. |
| VIA | Plated through hole(PTH), via open. |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" |
| Board plating: | 0.0029" |
| Drill tolerance: | 0.002" |
| TEST | 100% Electrical Test prior shipment |
| APPLICATION: | 4 Way divider, Door Access Control System
Vehicle Gps Tracking
GPS Vehicle Tracking System
PC104 |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
PTFE PCBGood high temperature and low temperature resistance.(-192ºC-260ºC)
Superior corrosion resistance.
