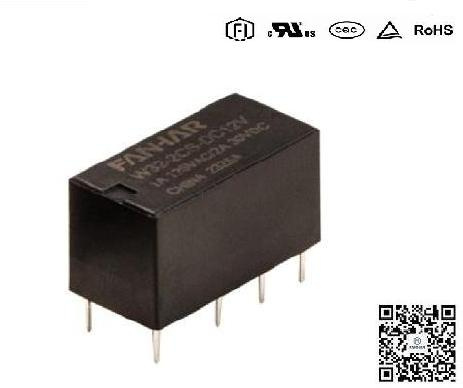

PCB Mounting Power Relay for Smart Meter

Name: PCB Mounting Power Relay for Smart Meter
Brand: all-electronics-online.com
SKU: 828923035
Availability: InStock
Rating: 4.6 (141 reviews)

Price:	US $ 0.2-0.3/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	W32
Certification:	UL TUV CQC
Contact Material:	Agni
Installation Type:	PCB
UL Insulation Class:	F
Operate Time:	Max.8ms
Release Time:	Max.5ms
Weight:	5g

Product Description

Basic Info
Model NO.: W32
Contact Form: 2C = 2 Transformation
Product protective: S=Sealed Nil= Soldered
Contact material: AgNi
Dimension: 20.2*10*11..5 MM
Weight: Approx 5g
Trademark: FANHAR
Origin: China
Product Description
1. 2A contact switching capability
2. UL insulation class: F grade

Contact Data:

Contact Form	2C
Rated load	1A 125VAC/ 2A 30VDC
Max Switching Voltage	250VAC/ 30VDC
Max Switching Current	2A
Max Switching Capacity	125VA/60W
Min Allowing load	10mV 1mA
Contact Resistance	50mΩ (at 6VDC 1A)
Insulation Resistance	1000MΩ (at 500VDC)

General Data:

Withstand Voltage Between open contacts	750VAC 1min
Between coil and contacts	1500VAC 1min
Withstand impact voltage	Between coil and contacts 3kv(1.2X50us)
Operate Time	Max.8ms
Release Time	Max.5ms
Mechanical life	10,000,000 ops ON/OFF = 0.1s/0.1s
Electrical life	1A 250VAC / 2A 30VDC 100,000 ops ON/OFF=1s/9s
Impact Resistance Misoperation Durability	100m/s² Approx10G 1000m/s² Approx100G
Vibration Resistance Misoperation Durability	10 - 55 Hz 1.5mm Double Amplitude 10 - 55 Hz 1.5mm Double Amplitude
Temperature Range	-40ºC to +85ºC
Humidity	5% to 90%
Installation type	PCB Mounting
Certification

Coil Data:
Standard:

Coil rated voltage	Operating voltage	Releasing Voltage	Coil rated Current (±10%)	Coil resistance(±10%)	Rated consumed power	Allowing voltage
DC 5V	Below 75% rated voltage (initial)	above 5% rated voltage (initial)	40mA	125Ω	200mW	90-130 % Rated voltage
DC 6V			33.3mA	180Ω
DC 9V			22.2mA	405Ω
DC 12V			16.7mA	720Ω
DC 15V			13.3mA	1128Ω
DC 18V			11.1mA	1620Ω
DC 24V			8.3mA	2880Ω
