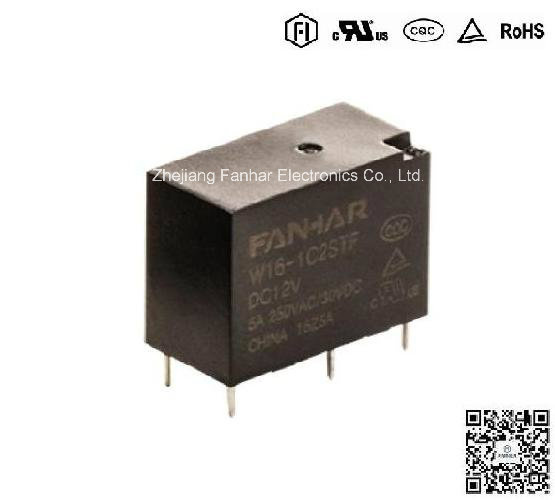

Model NO.: W16
Contact Form: 1A = 1 OPEN 1B= CLOSE 1C= 1 Switch
Product protective: S=Sealed Nil= Soldered
Contact material: T=AgSnO2 Nil:= AgNi
Coil Power: Nil= Standard L = Sensitive
Load: Nil:Standard Load E=High Load (10A)
Insulation System:Nil:B grade F= F grade
Dimension: 20.5*10.5*15.5 MM
Weight: Approx 6g
Trademark: FANHAR
Origin: China

Product Description
1. 10A contact switching capability
2. Creepage distance and spacial distance are greater than 8mm.
3.UL insulation class : F grade.

Contact Data:

Contact Form	1A 1B 1C
Rated load	10A 250VAC 5A 250VAC/30VDC
Max Switching Voltage	277VAC/30VDC
Max Switching Current	10A
Max Switching Capacity	2500VA/150W
Min Allowing load	5VDC 100mA
Contact Resistance	100mΩ (at 6VDC 1A)
Insulation Resistance	1000MΩ (at 500VDC)

General Data:

Withstand Voltage Between open contacts	1000VAC 1min
Between coil and contacts	4000VAC 1min
Withstand impact voltage	Between coil and contacts 8kv(1.2X50us)
Operate Time	Max.10ms
Release Time	Max.5ms
Mechanical life	5,000,000 ops ON/OFF = 0.1s/0.1s
Electrical life	5A 250VAC/30VDC 50,000 ops ON/OFF=1s/9s 10A 250VAC 30,000 ops ON/OFF=1s/9s 3A 250VAC/30VDC 100,000 ops ON/OFF=1s/9s
Impact Resistance Misoperation Durability	100m/s² Approx10G 1000m/s² Approx100G
Vibration Resistance Misoperation Durability	10 - 55 Hz 1.5mm Double Amplitude 10 - 55 Hz 1.5mm Double Amplitude
Temperature Range	-40ºC to +85ºC
Humidity	5% to 90%
Installation type	PCB Mounting
Certification	UL/C-UL:E475405 TUV:R50346373 CQC:CQC16002144114

Coil Data:
Standard:

Coil rated voltage	Operating voltage	Releasing Voltage	Coil rated Current (±10%)	Coil resistance(±10%)	Rated consumed power	Allowing voltage
DC 3V	Below 75% rated voltage (initial)	above 5% rated voltage (initial)	150mA	20Ω	450mW	90-130 % Rated voltage
DC 5V			90mA	55.5Ω
DC 6V			75mA	80Ω
DC 9V			50mA	180Ω
DC 12V			37.5mA	320Ω
DC 15V			30mA	500Ω
DC 18V			25mA	720Ω
DC 24V			18.8mA	1280Ω
DC 48V			10.4mA	4608Ω	500mW	90-110 % Rated voltage

Sensitive:

Coil rated voltage	Operating voltage	Releasing Voltage	Coil rated Current (±10%)	Coil resistance(±10%)	Rated consumed power	Allowing voltage
DC 3V	Below 75% rated voltage (initial)	above 5% rated voltage (initial)	66.7mA	45Ω	200mW	90-130 % Rated voltage
DC 5V			40mA	125Ω
DC 6V			33.3mA	180Ω
DC 9V			22.2mA	405Ω
DC 12V			16.7mA	720Ω
DC 15V			13.3mA	1128Ω
DC 18V			11.1mA	1620Ω
DC 24V			8.3mA	2880Ω

Prod Model:	W16
Certification:	UL TUV CQC
Contact Material:	Agsno2 Agni
Installation Type:	PCB
UL Insulation Class:	F
Operate Time:	Max.10ms
Release Time:	Max.5ms
Weight:	6g
