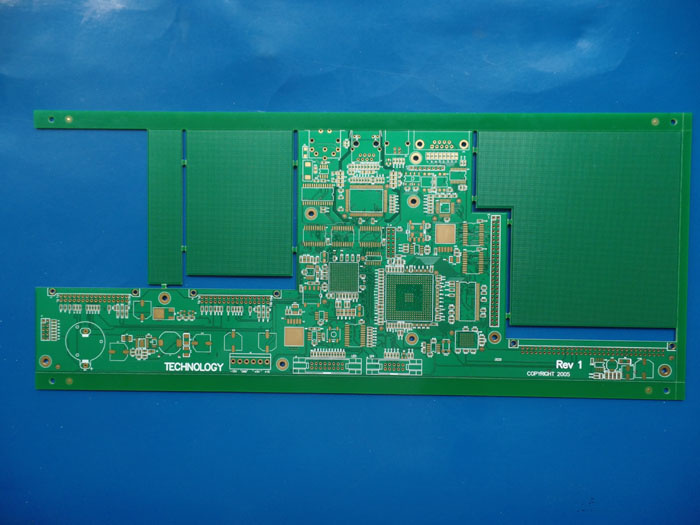

Plugging PCB 16 Layer BGA Circuit Board
| Price: |
US $ 0.89/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
PCB 16 Layer BGA Circuit Board FR-4 at 2.4mm Thick Immersion Gold In Electronic Cash
Register
Commodity IntroductionThis is a type of FR-4 PCB for the application of Electronic Cash Register. It's a 16 Layer board
at 2.4mm thick. The base laminate is from ITEQ, Solder mask and silkscreen from Taiyo. It's
fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels are
packed separately.
Parameters & Data Sheet| PCB SIZE | 260 x 167mm=1PCS=1design |
| BOARD TYPE | |
| Number of Layers | Multilayer PCB, 16 layer PCB |
| Surface Mount Components | YES |
| Through Hole Components | NO |
| LAYER STACKUP | copper ------- TOP 17 um(1 oz)+plate |
| 65 um prepreg 1080 x 1 |
| copper ------- L02 35 um(1 oz) |
| 150 um core FR-4 |
| copper ------- L03 35 um(1 oz) |
| 65 um prepreg 1080 x 1 |
| copper ------- L04 35 um(1 oz) |
| 150 um core FR-4 |
| copper ------- L05 35 um(1 oz) |
| 65 um prepreg 1080 x 1 |
| copper ------- L06 35 um(1 oz) |
| 150 um core FR-4 |
| copper ------- L07 35 um(1 oz) |
| 65 um prepreg 1080 x 1 |
| copper ------- L08 35 um(1 oz) |
| 150 um core FR-4 |
| copper ------- L09 35 um(1oz) |
| 65 um prepreg 1080 x 1 |
| copper ------- L10 35 um(1oz) |
| 150 um core FR-4 |
| copper ------- L11 35 um(1oz) |
| 65 um prepreg 1080 x 1 |
| copper ------- L12 35 um(1oz) |
| 150 um core FR-4 |
| copper ------- L13 35 um(1oz) |
| 65 um prepreg 1080 x 1 |
| copper ------- BOT 17 um(0.5oz)+plate |
| TECHNOLOGY | |
| Minimum Trace and Space: | 4.5 mil/4.5 mil |
| Minimum / Maximum Holes: | 0.36/2.5mm |
| Number of Different Holes: | 13 |
| Number of Drill Holes: | 2519 |
| Number of Milled Slots: | 0 |
| Number of Internal Cutouts: | 0 |
| Impedance Control: | 0 |
| Number of Gold finger: | 0 |
| BOARD MATERIAL | |
| Glass Epoxy: | IT-180, FR-4 TG170ºC, er<5.4, ITEQ Supplied |
| Final foil external: | 1 oz |
| Final foil internal: | 1 oz |
| Final height of PCB: | 2.4mm ±0.2 |
| PLATING AND COATING | |
| Surface Finish | Immersion gold 0.05 µm over 3 µm Nickel (45% area) |
| Solder Mask Apply To: | TOP and Bottom, 12micron Minimum |
| Solder Mask Color: | Green, PSR-2000 GT600D, Taiyo Supplied. |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | TOP and Bottom. |
| Colour of Component Legend | White, IJR-4000 MW300, Taiyo Supplied. |
| Manufacturer Name or Logo: | Marked on the board in a conductor and
leged FREE AREA |
| VIA | Plated through hole(PTH), BGA, Epoxy Via plugging |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" |
| Board plating: | 0.0029" |
| Drill tolerance: | 0.002" |
| TEST | 100% Electrical Test prior shipment |
| APPLICATION: | Communication systems, Car Tracker GPS
GPS Tracking For Cars
Embedded Operating System
GPS Fleet Management
Vehicle Tracking Systems |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
The advantage of ENIG from Bicheng Company
ENIG -abcde:
a) Excellent surface planarity, particularly helpful for PCBs with BGA packages or even CSP
mounted components to reduce failure rate during assembly and soldering.
b) Good oxidation resistance and good heat dissipation.
c) Long storage time ( It can be stored for more than 1 year in vacuum bag)
d) High solderability, no stressing of circuit boards and less contamination of PCB surface.
e) SMT process is resistant to reflow soldering, resistant to rework.
Frequently Asked Questions
1. Do you sell BGA circuit board?
Yes. We offer micro fine pitch BGA circuit boards. The minimum pad diameter of BGA is 10mil for
prototypes, 12mil for mass production.
2.What's your minimum track and spacing?
Actually this depends on the copper weight.
For half oz(18 um) copper, it's 3 mil / 3.5 mil for prototypes, 4 mil / 4 mil for small production and
larger at 5 mil/5 mil for mass production.
For 1 oz (35 um) copper, it's 3 mil / 4 mil for prototypes, 4 mil / 4 mil for small production and 5 mil
/5 mil for mass production.
For 2 oz (70 um) copper, it's 6 mil / 7 mil for prototypes, 6 mil / 8 mil for small production and 7 mil
/9 mil for mass production.
For 3 oz (105 um) copper, it's 8 mil / 9 mil for prototypes, 8 mil / 10 mil for small production and 9
mil /11 mil for mass production.
For 4 oz (140 um) copper, it's 12 mil / 11 mil for prototypes, 12 mil / 12 mil for small production and
13 mil / 13 mil for mass production.
| Prod Model: |
BIC-147-V1.47 |
| Final Foil External: |
1 Oz |
| Final Foil Internal: |
1 Oz |
| Final Height Of PCB: |
2.4mm |
| Surface Finish: |
Immersion Gold |
| Solder Mask Color: |
Green |
| Colour Of Component Legend: |
White |
| Via: |
Plated Through Hole(Pth), BGA, Epoxy Via Plugging |
| Minimum Trace And Space: |
4.5 Mil/4.5 Mil |
| Minimum / Maximum Holes: |
0.36/2.5mm |
| Test: |
100% Electrical Test Prior Shipment |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
| Brand: |
Iteq Material |
