Power Relay for Energy Meter

Name: Power Relay for Energy Meter
Brand: all-electronics-online.com
SKU: 827995725
Availability: InStock
Rating: 4.6 (98 reviews)

Price:	US $ 0.45-0.55/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Basic Info

Model NO.: W12
Contact Form: 1A = 1 OPEN 1C= 1 Switch
BG TYPE: 1A = 1OPEN
Product protective: S=Sealed Nil= Soldered
Contact material: AgNi AgSnO2
Insulation Grade: F
Dimension: 31.5*27*18.5 MM
Weight: Approx 27g
Trademark: FANHAR
Origin: China

Product Description
1. 40A contact switching capability;BG products can be used in 48VDC load
2. UL insulation class : F grade
3. Normally open type through UL certification of TV-10 125VAC, the impact current is 150A.
4. Can provide the products with more than 2.4mm's contact clearance, in line with the European VDE0126 photovoltaic standards
Contact Data:

Contact Form	Standard: 1A 1C BG Type: 1A
Rated load	30A 250VAC 30A 250VAC 20A 30VDC 20A 48VDC
Max Switching Voltage	277VAC/30VDC 277VAC/48VDC
Max Switching Current	40A
Max Switching Capacity	7500VA/600W 7500VAC/960W
Min Allowing load	5VDC 100mA
Insulation Resistance	1000MΩ (at 500VDC)

General Data:

Withstand Voltage Between open contacts	1500VAC 1min BG type: 2500VAC 1min
Between coil and contacts	4000VAC 1min
Operate Time	Max.15ms BG type: Max.20ms
Release Time	Max.10ms Max.15ms
Mechanical life	5,000,000 ops ON/OFF = 0.1s/0.1s
Electrical life	30A 250VAC 50,000 ops ON/OFF=1s/9s 20A 30VDC 100,000 ops ON/OFF=1s/9s 20A 48VDC 50,000 ops ON/OFF=1s/9s 20A 250VAC pf=0.6 100,000 ops ON/OFF=1s/9
Impact Resistance Misoperation Durability	100m/s² Approx10G 1000m/s² Approx100G
Vibration Resistance Misoperation Durability	10 - 55 Hz 1.5mm Double Amplitude 10 - 55 Hz 1.5mm Double Amplitude
Temperature Range	-40ºC to +85ºC
Humidity	5% to 90%
Installation type	PCB Mounting

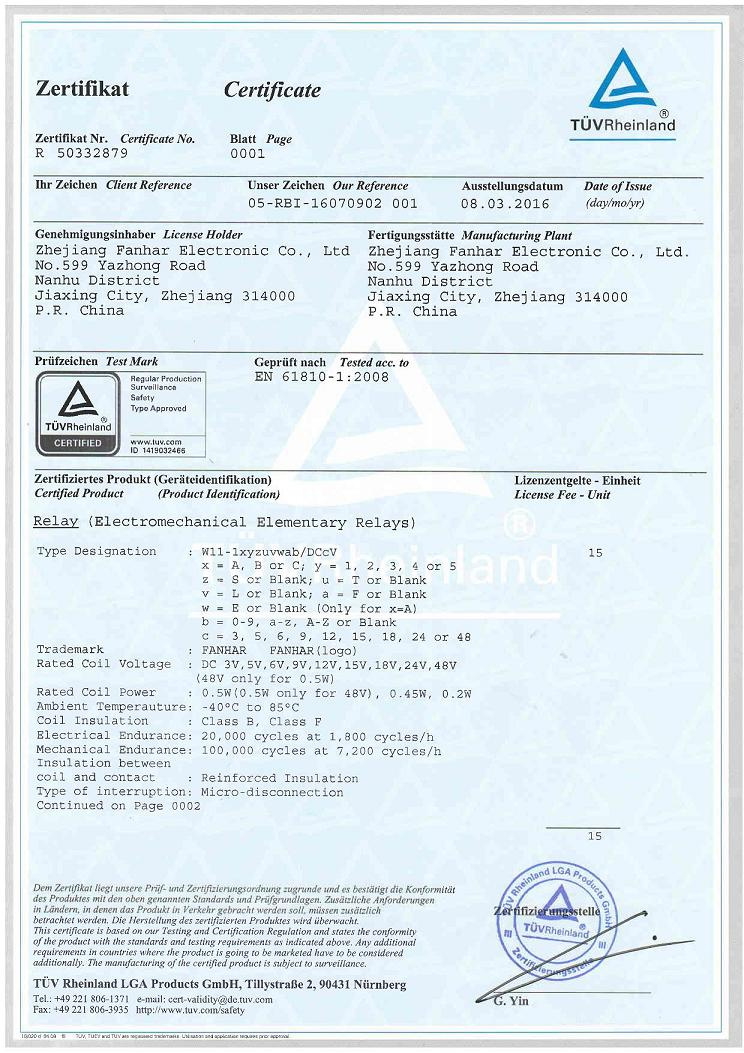

Certification	UL/C-UL:E475405 TUV:R50338930 CQC:CQC16002140939

Coil Data:
STANDARD

Coil rated voltage	Operating voltage	Releasing Voltage	Coil rated Current (±10%)	Coil resistance(±10%)	Rated consumed power	Allowing voltage
DC 5V	Below 75% rated voltage (initial)	above 5% rated voltage (initial)	180mA	27.8Ω	900mW	90-130 % Rated voltage
DC 6V			150mA	40Ω
DC 9V			100mA	90Ω
DC 12V			75mA	160Ω
DC 15V			60mA	250Ω
DC 18V			50mA	360Ω
DC 24V			37.5mA	640Ω
DC 36V			25mA	1440Ω
DC 48V			18.75mA	2560Ω
DC 110V			8.19mA	13444.5Ω

BG Type

Coil rated voltage	Operating voltage	Releasing Voltage	Coil rated Current (±10%)	Coil resistance(±10%)	Rated consumed power	Allowing voltage
DC 5V	Below 75% rated voltage (initial)	above 5% rated voltage (initial)	280mA	18Ω	1400mW	90-130 % Rated voltage
DC 6V			233.3mA	26Ω
DC 9V			155.6mA	58Ω
DC 12V			116.7mA	103Ω
DC 15V			93.3mA	161Ω
DC 18V			77.3mA	231Ω
DC 24V			58.3mA	411Ω
DC 36V			38.9mA	926Ω
DC 48V			29.9mA	1646Ω
DC 110V			12.7mA	8663Ω

Prod Model:	W12
Certification:	UL TUV CQC
Contact Material:	Agsno2 Agni
Installation Type:	PCB
UL Insulation Class:	F
Operate Time:	Max.15ms
Release Time:	Max.10ms

Zhejiang Fanhar Electronics Co., Ltd. is a National Hi-Tech enterprise specialized in research, development, production and sales of relays. With more than 30 series, hundreds of product specifications, our relays are widely used in power control, smart home, household appliances, electric vehicles and charging pile, industrial control and emerging energy fields.

With a complete quality assurance system, Fanhar has passed the ISO9001 quality management system and ISO14001 environmental management system certification. Products possess UL, TUV and CQC certification, and meet the EU RoHS, REACH requirements. 'Fanhar Relay has become a worldwide 's best choice by offering reliable quality assurance system, meticulous technical services, worldwide sales network and the best cost-effective.

Company Development History

Year of 2016

Zhejiang Fanhar Electronics Co., Ltd was acquired the honor of "National High and newTech Enterprise"

Year of 2014

Zhejiang Fanhar Electronics Co., Ltd was founded, mainly engaged in electromagnetic relays and new energy relays.

Year of 2013

Zhejiang Great Electrical Co., Ltd cooperated with Panasonic Group, mainly engaged in Latching relays.

Year of 2011

The Chinese Communist Party Branch of Zhejiang Great Electrical Co., Ltd was founded.

Year of 2010

Zhejiang Great Electrical Co., Ltd removed to Jiashan Industry of Zhejiang who has a 12000m2 self- owned factory where is close to Shanghai, the sales amount of the year has a great breakthrough which is more than 100 Million RMB.

Year of 2007

Zhejiang Great Electrical Co., Ltd was Founded.

Year of 2005

Yueqing Great Electrical Co., Ltd upgraded to Wenzhou Great Electrical Co., Ltd, mainly engaged in Latching Relays.

Year of 2003

Yueqing Great Electrical Co., Ltd was established, mainly engaged in Latching Relays.
