Basic Info

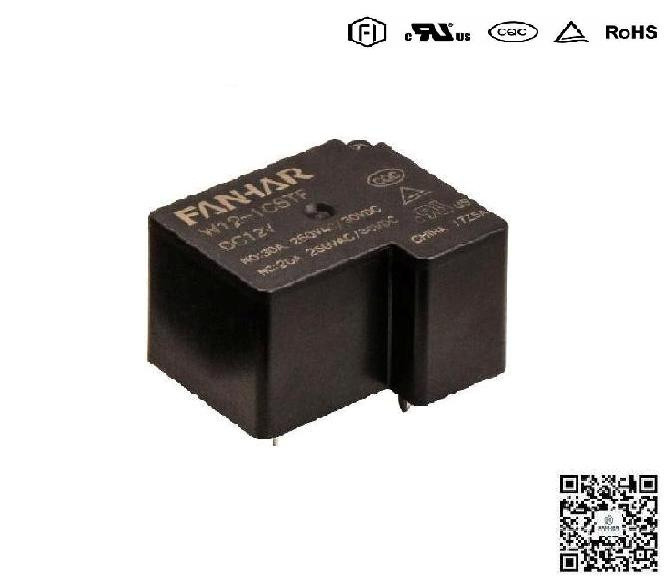

Model NO.: W12
Contact Form: 1A = 1 OPEN 1C= 1 Switch
BG TYPE: 1A = 1OPEN
Product protective: S=Sealed Nil= Soldered
Contact material: AgNi AgSnO2
Insulation Grade: F
Dimension: 31.5*27*18.5 MM
Weight: Approx 27g
Trademark: FANHAR
Origin: China
Product Description
1. 40A contact switching capability;BG products can be used in 48VDC load
2. UL insulation class : F grade
3. Normally open type through UL certification of TV-10 125VAC, the impact current is 150A.
4. Can provide the products with more than 2.4mm's contact clearance, in line with the European VDE0126 photovoltaic standards
Contact Data:
Contact Form | Standard: 1A 1C BG Type: 1A |
Rated load | 30A 250VAC 30A 250VAC 20A 30VDC 20A 48VDC |
Max Switching Voltage | 277VAC/30VDC 277VAC/48VDC |
Max Switching Current | 40A |
Max Switching Capacity | 7500VA/600W 7500VAC/960W |
Min Allowing load | 5VDC 100mA |
Insulation Resistance | 1000MΩ (at 500VDC) |
General Data:
Withstand Voltage Between open contacts | 1500VAC 1min BG type: 2500VAC 1min |
Between coil and contacts | 4000VAC 1min |
Operate Time | Max.15ms BG type: Max.20ms |
Release Time | Max.10ms Max.15ms |
Mechanical life | 5,000,000 ops ON/OFF = 0.1s/0.1s |
Electrical life | 30A 250VAC 50,000 ops ON/OFF=1s/9s 20A 30VDC 100,000 ops ON/OFF=1s/9s 20A 48VDC 50,000 ops ON/OFF=1s/9s 20A 250VAC pf=0.6 100,000 ops ON/OFF=1s/9 |
Impact Resistance Misoperation Durability | 100m/s² Approx10G 1000m/s² Approx100G |
Vibration Resistance Misoperation Durability | 10 - 55 Hz 1.5mm Double Amplitude 10 - 55 Hz 1.5mm Double Amplitude |
Temperature Range | -40ºC to +85ºC |
Humidity | 5% to 90% |
Installation type | PCB Mounting |
Certification | UL/C-UL:E475405 TUV:R50338930 CQC:CQC16002140939 |
Coil Data:
STANDARD
Coil rated voltage | Operating voltage | Releasing Voltage | Coil rated Current (±10%) | Coil resistance(±10%) | Rated consumed power | Allowing voltage |
DC 5V | Below 75% rated voltage (initial) | above 5% rated voltage (initial) | 180mA | 27.8Ω | 900mW | 90-130 % Rated voltage |
DC 6V | 150mA | 40Ω |
DC 9V | 100mA | 90Ω |
DC 12V | 75mA | 160Ω |
DC 15V | 60mA | 250Ω |
DC 18V | 50mA | 360Ω |
DC 24V | 37.5mA | 640Ω |
DC 36V | | | 25mA | 1440Ω | | |
DC 48V | | | 18.75mA | 2560Ω | | |
DC 110V | | | 8.19mA | 13444.5Ω | | |
BG Type
Coil rated voltage | Operating voltage | Releasing Voltage | Coil rated Current (±10%) | Coil resistance(±10%) | Rated consumed power | Allowing voltage |
DC 5V | Below 75% rated voltage (initial) | above 5% rated voltage (initial) | 280mA | 18Ω | 1400mW | 90-130 % Rated voltage |
DC 6V | 233.3mA | 26Ω |
DC 9V | 155.6mA | 58Ω |
DC 12V | 116.7mA | 103Ω |
DC 15V | 93.3mA | 161Ω |
DC 18V | 77.3mA | 231Ω |
DC 24V | 58.3mA | 411Ω |
DC 36V | 38.9mA | 926Ω |
DC 48V | 29.9mA | 1646Ω |
DC 110V | 12.7mA | 8663Ω |
