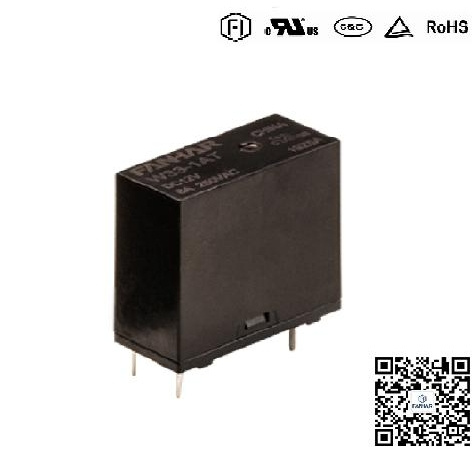

Power Relay with Agsno2 Contact Material for Smart Home

Name: Power Relay with Agsno2 Contact Material for Smart Home
Brand: all-electronics-online.com
SKU: 828924035
Availability: InStock
Rating: 4.5 (118 reviews)

Price:	US $ 0.45-0.55/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Basic Info
Model NO.: W33
Contact Form: 1A = 1 OPEN CONTACTS
Product protective: S=Sealed   Nil= Soldered
Contact material: T=AgSnO2
Insulation system: Nil: B level    F: F level
Dimension: 23.8*10.5*24.5 MM
Weight: Approx 12g
Trademark: FANHAR
Origin: China
Product Description
1. 8A contact switching capability
2.Creepage distance and spacial distance are greater than 6mm
3. Normally open type has the UL certification of TV-5  125VAC, the impact current is 78A
4. UL Insulation class :F grade

Contact Data:

Contact Form	1A
Rated load	5A 250VAC/30VDC
Max Switching Voltage	277VAC/30VDC
Max Switching Current	8A
Max Switching Capacity	1250VA/150W
Min allowing load	5VDC 100mA
Contact Resistance	100mΩ (at 6VDC 1A)
Insulation Resistance	1000MΩ (at 500VDC)

General Data:

Withstand Voltage Between open contacts	1000VAC 1min
Between coil and contacts	4000VAC 1min
Withstand impact voltage	Between coil and contacts 8KV(1.2x 50us)
Operate Time	Max.15ms
Release Time	Max.5ms
Mechanical life	5,000,000 ops ON/OFF = 0.1s/0.1s
Electrical life	5A 250VAC/30 VDC 100,000 ops ON/OFF=1s/9s
Impact Resistance Misoperation Durability	100m/s² Approx10G 1000m/s² Approx100G
Vibration Resistance Misoperation Durability	10 - 55 Hz 1.5mm Double Amplitude 10 - 55 Hz 1.5mm Double Amplitude
Temperature Range	-40ºC to +85ºC
Humidity	5% to 90%
Installation type	PCB Mounting

Coil Data:
Standard:

Coil rated voltage	Operating voltage	Releasing Voltage	Coil rated Current (±10%)	Coil resistance(±10%)	Rated consumed power	Allowing voltage
DC 5V	Below 75% rated voltage (initial)	Above 5% rated voltage (initial	50mA	100Ω	250mW	90-130 % Rated voltage
DC 9V			27.8mA	324Ω
DC 12V			20.8mA	576Ω
DC 24V			10.4mA	2304Ω

Prod Model:	W33
Certification:	UL TUV CQC
Contact Material:	Agsno2
Installation Type:	PCB Mounting
UL Insulation Class:	F
Weight:	12g
Operate Time:	Max.15ms
Release Time:	Max.5ms
