Basic Info

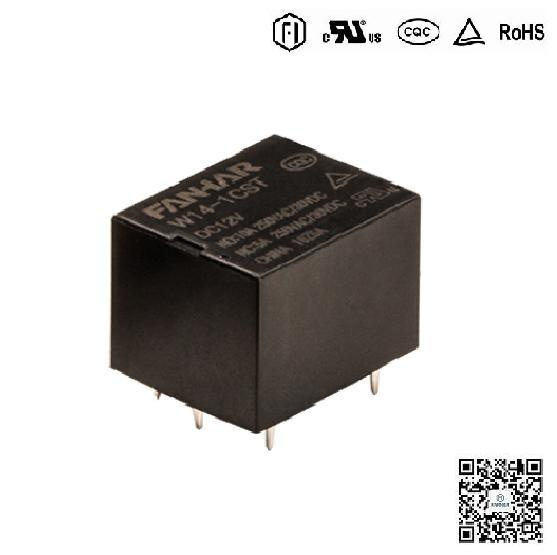

Model NO.: W14
Contact Form: 1A = 1 OPEN 1C= 1 Switch
Product protective: S=Sealed Nil= Soldered
Contact material: AgSnO2
Coil power: Nil:360mW H= 450mW
Insulation System:Nil:B grade F= F grade
Dimension: 19*15.2*15.5 MM
Weight: Approx 7g
Trademark: FANHAR
Origin: China
Product Description
1. 15A contact switching capability
2. UL insulation class : F grade
3. The temperature of working environment can reach 105 ºC.
4. Ultra-small, standard printed circuit board leading foots.
Contact Data:
Contact Form | 1A 1C |
Rated load | 10A 250VAC/30VDC 15A 125VAC |
Max Switching Voltage | 277VA/30VDC |
Max Switching Current | 15A |
Max Switching Capacity | 2500VAC/300W |
Min Allowing load | 5VDC 100mA |
Contact Resistance | 100mΩ (at 6VDC 1A) |
Insulation Resistance | 1000MΩ (at 500VDC) |
General Data:
Withstand Voltage Between open contacts | 750VAC 1min |
Between coil and contacts | 2000VAC 1min |
Operate Time | Max.10ms |
Release Time | Max.5ms |
Mechanical life | 10,000,000 ops ON/OFF = 0.1s/0.1s |
Electrical life | 5A 250VAC/30VDC 100,000 ops ON/OFF=1s/9s 10A 250VAC/30VDC 50,000 ops ON/OFF=1s/9s 15A 125VAC 50,000 ops ON/OFF=1s/9s |
Impact Resistance Misoperation Durability | 100m/s² Approx10G 1000m/s² Approx100G |
Vibration Resistance Misoperation Durability | 10 - 55 Hz 1.5mm Double Amplitude 10 - 55 Hz 1.5mm Double Amplitude |
Temperature Range | -40ºC to +85ºC/105ºC |
Humidity | 5% to 90% |
Installation type | PCB Mounting |
Certification | UL/C-UL:E475405 TUV:R50323750 CQC:CQC15002135519 |
Coil Data:
Standard:
Coil rated voltage | Operating voltage | Releasing Voltage | Coil rated Current (±10%) | Coil resistance(±10%) | Rated consumed power | Allowing voltage |
DC 3V | Below 75% rated voltage (initial) | above 5% rated voltage (initial) | 120mA | 25Ω | 360mW | 90-120 % Rated voltage |
DC 5V | 72mA | 69.4Ω |
DC 6V | 30mA | 100Ω |
DC 9V | 40mA | 225Ω |
DC 12V | 30mA | 400Ω |
DC 15V | 24mA | 625Ω |
DC 18V | 20mA | 900Ω |
DC 24V | 15mA | 1600Ω |
DC 48V | 7.5mA | 6400Ω |
High Power consumed:
Coil rated voltage | Operating voltage | Releasing Voltage | Coil rated Current (±10%) | Coil resistance(±10%) | Rated consumed power | Allowing voltage |
DC 3V | Below 75% rated voltage (initial) | above 5% rated voltage (initial) | 150mA | 20Ω | 450mW | 90-120 % Rated voltage |
DC 5V | 90mA | 55.6Ω |
DC 6V | 75mA | 80Ω |
DC 9V | 50mA | 180Ω |
DC 12V | 37.5mA | 320Ω |
DC 15V | 30mA | 500Ω |
DC 18V | 25mA | 720Ω |
DC 24V | 18.75mA | 1280Ω |
DC 48V | 9.4mA | 5120Ω |
