| Prod Model: |
W15-1 |
| Certification: |
UL TUV CQC ISO RoHS |
| Temperature: |
-40 to +85 |
| Contact Material: |
Agsno2 |
| Installation Type: |
PCB Mounting |
| Weight: |
6g |
Product Description
Basic Info

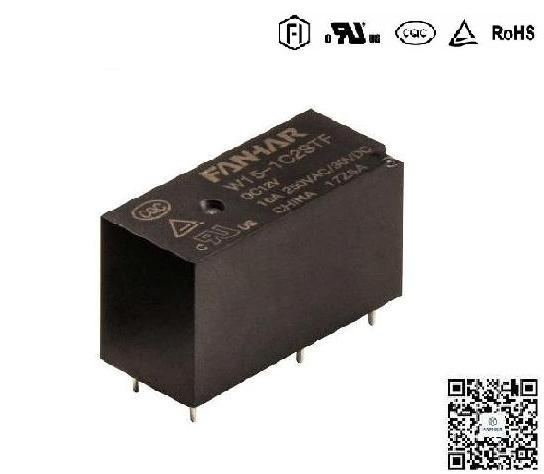

Model NO.: W15-1
Contact Form: 1A = 1 OPEN 1B= CLOSE 1C= 1 Switch
Product protective: S=Sealed Nil= Soldered
Contact material: AgSnO2
Coil Power: Nil= Standard L = Sensitive
Insulation System:Nil:B grade F= F grade
Dimension: 29*12.7*15.7 MM
Weight: Approx 12g
Trademark: FANHAR
Origin: China
Product Description
1.. 16A contact switching capability
2. Normally open type has the UL certification of TV-8 125VAC,
the impact current is 120A
3. The withstand voltage between coil and contact can reach 12KV.
4. Creepage distance and spacial distance are greater than 15mm.
5.UL insulation class : F grade.
Contact Data:
| Contact Form | 1A 1B 1C |
| Rated load | 16A 250VAC/30VDC
12A 250VAC/30VDC |
| Max Switching Voltage | 277VAC/30VDC |
| Max Switching Current | 16A |
| Max Switching Capacity | 4000VA/480W |
| Min Allowing load | 5VDC 100mA |
| Contact Resistance | 100mΩ (at 6VDC 1A) |
| Insulation Resistance | 1000MΩ (at 500VDC) |
General Data:
| Withstand Voltage Between open contacts | 1000VAC 1min |
| Between coil and contacts | 4000VAC 1min |
| Operate Time | Max.15ms |
| Release Time | Max.5ms |
| Mechanical life | 10,000,000 ops ON/OFF = 0.1s/0.1s |
| Electrical life | 16A 250VAC/30VDC 100,000 ops ON/OFF=1s/9s
12A 250VAC/30VDC 100,000 ops ON/OFF=1s/9s |
Impact Resistance Misoperation
Durability | 100m/s² Approx10G
1000m/s² Approx100G |
Vibration Resistance Misoperation
Durability | 10 - 55 Hz 1.5mm Double Amplitude
10 - 55 Hz 1.5mm Double Amplitude |
| Temperature Range | -40ºC to +85ºC |
| Humidity | 5% to 90% |
| Installation type | PCB Mounting |
| Certification | UL/C-UL:E475405
TUV:R50332875
CQC:CQC15002137649 |
Coil Data:
Standard:
| Coil rated voltage | Operating
voltage | Releasing
Voltage | Coil rated
Current
(±10%) | Coil resistance(±10%) | Rated consumed power | Allowing voltage |
| DC 3V | Below 75%
rated voltage (initial) | above 5%
rated voltage (initial) | 133mA | 22.5Ω | 400mW | 90-130 %
Rated voltage |
| DC 5V | 80mA | 62.6Ω |
| DC 6V | 66.7mA | 90Ω |
| DC 9V | 44.5mA | 202.5Ω |
| DC 12V | 33.4mA | 360Ω |
| DC 15V | 26.7mA | 562.5Ω |
| DC 18V | 22.3mA | 810Ω |
| DC 24V | 16.7mA | 1440Ω |
| DC 48V | | | 8.4mA | 5760Ω | | |
Sensitive:
| Coil rated voltage | Operating
voltage | Releasing
Voltage | Coil rated
Current
(±10%) | Coil resistance(±10%) | Rated consumed power | Allowing voltage |
| DC 3V | Below 75%
rated voltage (initial) | above 5%
rated voltage (initial) | 83mA | 36Ω | 250mW | 90-130 %
Rated voltage |
| DC 5V | 50mA | 100Ω |
| DC 6V | 41.7mA | 144Ω |
| DC 9V | 27.8mA | 324Ω |
| DC 12V | 20.9mA | 576Ω |
| DC 15V | 16.7mA | 900Ω |
| DC 18V | 13.9mA | 1296Ω |
| DC 24V | 10.5mA | 2304Ω |
| DC 48V | | | 5.3mA | 9216Ω | | |
