Reliable Flexible PCB Board Stiffener Material Fr4 FPC Immersion Gold
| Price: |
US $ 1.26/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
Reliable Flexible PCB Board Stiffener Material FR4 FPC Immersion Gold 414
Commodity Introduction

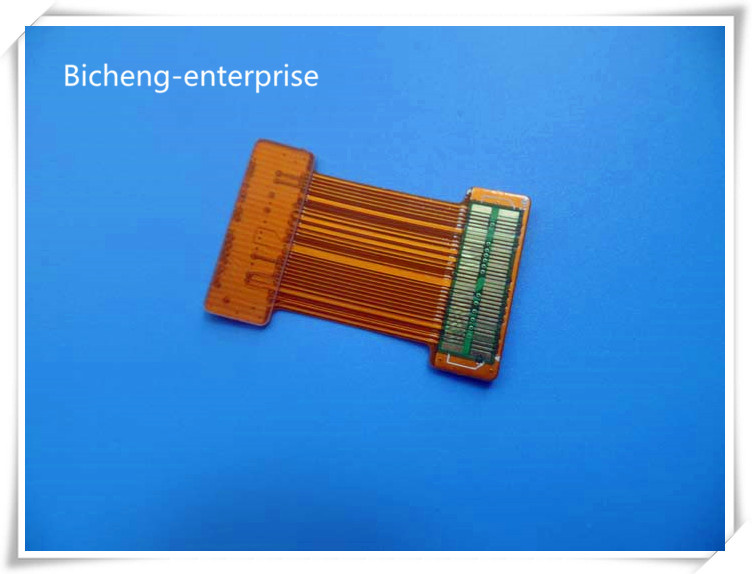

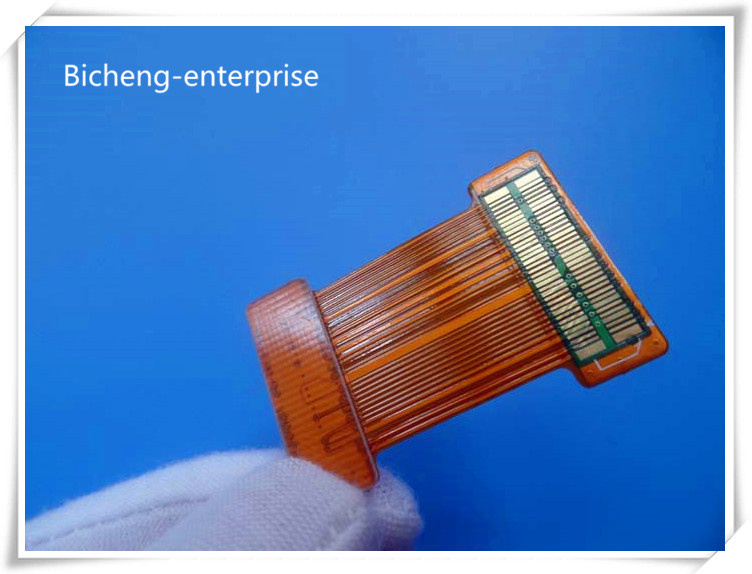

This is a type of flexible printed circuit for the application of antenna. It's a 2 layer FPC at 0.2mm
thick. The base laminate is from ITEQ, It's fabricated per IPC 6012 Class 2 using supplied Gerber

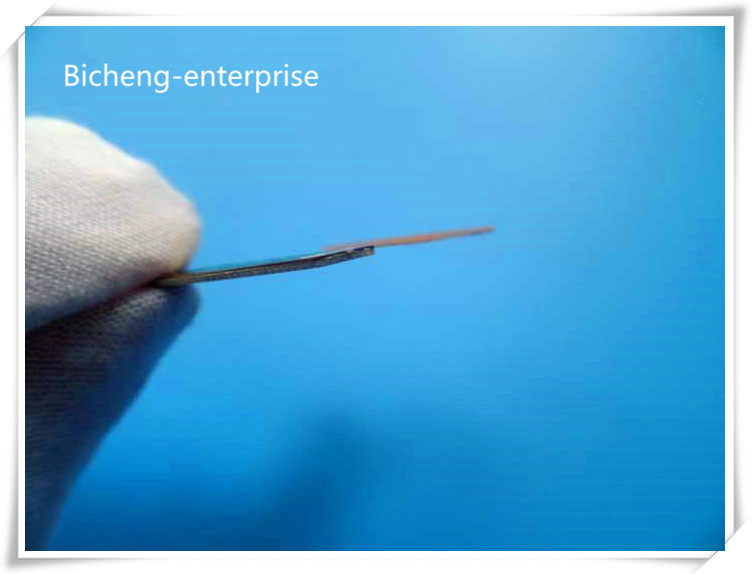

data. FR-4 as stiffner is applied at the bottom side.
Parameter & Data Sheet| Size of Flexible PCB | 35.22 X 21.17mm |
| Number of Layers | 2 |
| Board Type | Flexible PCB |
| Board Thickness | 0.20mm |
| Board Material | Polyimide 25µm |
| Board Material Supplier | ITEQ |
| Tg Value of Board Material | 60ºC |
| |
| PTH Cu thickness | ≥20 µm |
| Inner Iayer Cu thicknes | N/A |
| Surface Cu thickness | 35 µm |
| | |
| Coverlay Colour | Yellow |
| Number of Coverlay | 2 |
| Thickness of Coverlay | 25 µm |
| Stiffener Material | FR-4 |
| Stiffener Thickness | 0.4mm |
| | |
| Type of Silkscreen Ink | IJR-4000 MW300 |
| Supplier of Silkscreen | TAIYO |
| Color of Silkscreen | White |
| Number of Silkscreen | 1 |
| |
| Peeling test of Coverlay | No peelable |
| Legend Adhesion | 3M 90ºC No peeling after Min. 3 times test |
| |
| Surface Finish | Immersion Gold |
| Thickness of Nickle/Gold | Au: 0.03µm(Min.); Ni 2-4µm |
| RoHS Required | Yes |
| Famability | 94-V0 |
| |
| Thermal Shock Test | Pass, -25ºC±125ºC, 1000 cycles. |
| Thermal Stress | Pass, 300±5ºC,10 seconds, 3 cycles.
No delamination, no blistering. |
| Function | 100% Pass electrical test |
| Workmanship | Compliance with IPC-A-600H & IPC-6013C Class 2 |
Purpose of Flexible Circuits
a) to provide interconnections between printed circuit boards and other components.
b) to serve as three-dimensional substrates for the mounting of SMT components, e.g., in
photographic and video cameras.
c) to establish interconnections capable of withstanding dynamic flexing.
d) to form part of rigid-flex circuit boards.
Single-Sided Flexible Printed Circuits (FPC)
It is the simplest type of FPC, and consists of a thin and flexible base material (Polyimide or PET)
to which a copper foil is laminated by means of an adhesive. The finished circuit is frequently
provided with a coverlay bonded to the copper side by means of an adhesive.
Stack up
|-Polyimide
Coverlay } |
|-Adhesive
|-Copper Foil
Flex PCB } |Adhesive
|-Polyimide
Rigid-Flex Printed Circuit Boards
A rigid-flex PCB is a combination of rigid boards and flexible circuits, the latter creating flexible
inter-connects between the rigid boards to which they are laminated by means of bond plies.
The flexible circuit is manufactured separately and bonded to the rigid boards, either symmetrically,
i.e., in the middle of the rigid boards, or asymmetrically, i.e., to the outer side of the rigid boards to
be interconnected.
| Prod Model: |
BIC-1827-V23 |
| Board Thickness: |
0.2mm |
| Pth Cu Thickness: |
≥20 µm |
| Surface Cu Thickness: |
35 Um (1oz) |
| Solder Mask Color: |
Yellow |
| Legend Color: |
White |
| Stiffener Thickness: |
0.4mm |
| Stiffener Material: |
Fr-4 |
| Peeling Test of Coverlay: |
No Peelable |
| RoHS Required: |
Yes |
| Test: |
100% Electrical Test |
| Structure: |
Double-Sided FPC |
| Material: |
Polyimide |
| Combination Mode: |
Adhesive Flexible Plate |
| Conductive Adhesive: |
Conductive Silver Paste |
| Application: |
Antenna |
