Sm10-B Spoke Type Load Cell

Name: Sm10-B Spoke Type Load Cell
Brand: all-electronics-online.com
SKU: 839926605
Availability: InStock
Rating: 5 (37 reviews)

Price:	US $ 105-130/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Customized:

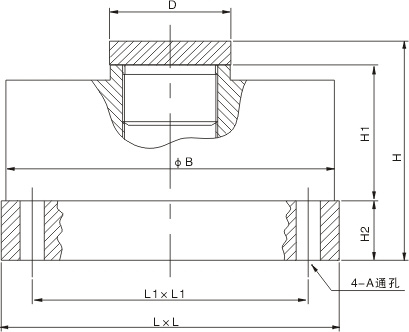

CAP./SIZE (t/mm)	H	H1	H2	ΦD	ΦA	L	L1	ΦB
0.5~3	62.8	34.8	18	32	10.3	130	103.8	104.7
5~10	81.8	53.8	23	42	10.3	120.7	98.8	120.7
15~30	92.2	57.2	23	51	10.3	142	116	138
Ib/inches(conversion of above dimensions )
1102.31~6613.87	24.72	13.70	7.09	12.60	4.06	51.18	40.87	41.22
11023.11~22046.23	32.20	21.18	9.06	16.54	4.06	47.52	38.90	47.52
33069.34~66138.68	36.30	22.52	9.06	20.08	4.06	55.91	45.67	54.33

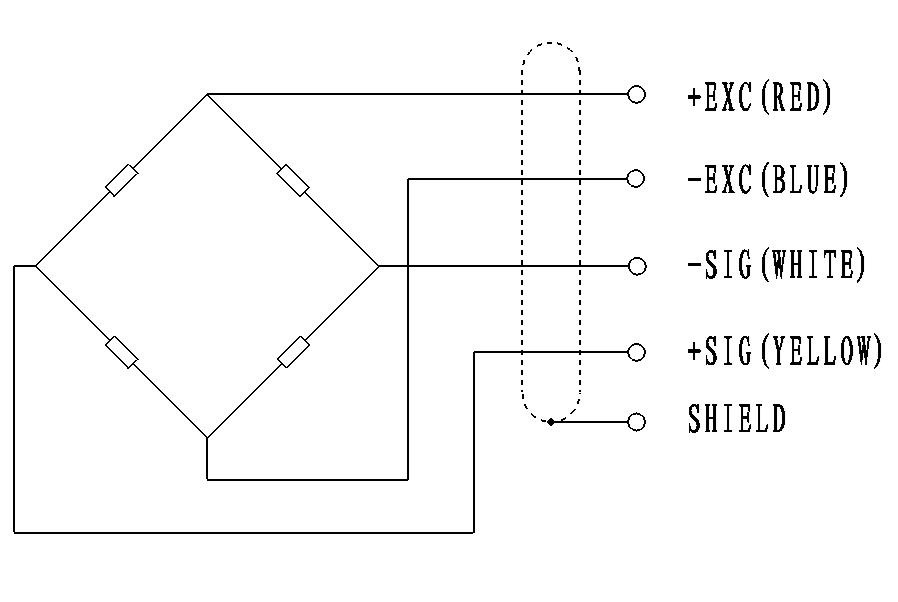

Circuit Diagram:
Red:       +input
Blue:     -input
White:    -output
Yellow:   +output

Item\Parameter	C3	Unit
Rated load(Emax):	0.5~30	t
Maximal numbers of load cell cerification. Intrevals (NlC):	3000	d
Maximal numbers of load cell cerification. Intrevals (NlC):	3000	d
Maximal numbers of load cell cerification. Intrevals (NIC):	0.01	% of ratedload
Maximal numbers of load cell cerification. Intrevals (NIC):	0.01	% of ratedload
Rated output(Cn):	2.0±0.1%	mV/V
*Combined error :	0.05	±% of rated output
Temperature effect on sensitivity (Tkc):	0.02	±% of rated output/ºC
Temperature effect on sensitivity (Tkc):	0.02	±% of rated output/ºC
Temperature effect on zero balance (Tk0):	0.02	±% of rated output/ºC
Temperature effect on zero balance (Tk0):	0.02	±% of rated output/ºC
Zero balance :	1.0	±% of rated output
Input resistance(Rlc):	775±5	Ω(ohms)
Output resistance(Ro):	700±2	Ω(ohms)
Insulation resistance :	≥5000	MΩ(Mege-Ohms)
Safe overload :	150	±% of rated capability
Ultimate overload :	200	±% of rated capability
Operating temperature range :	-30~+70	ºC
Recommend excitation	5~12	V(DC or AC)
Maximum excitation :	15	V(DC or AC)
Material of elastomer :	Alloy steel /Stainless steel
Protection class	IP67/IP68

Prod Model:	SM10-B
Rated Load:	0.5t - 30t
Execution Standard:	GB/T 7551-2008 Certificate

We supply different kinds of products with high quality and favorable price. We're pleased to get your Inquiry and we will reply you as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
