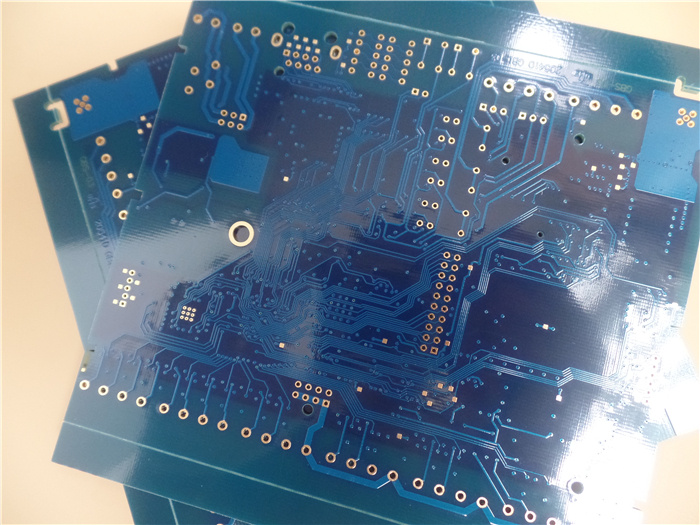

Solder-Ability Test PCB Circuit Board Blue Solder Mask Copper
| Price: |
US $ 1.01/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-647-V6.47 |
| Surface Cu Thickness: |
35 µm |
| Board Thickness: |
0.15mm |
| Coverlay Colour: |
Transparent |
| Thickness Of Coverlay: |
25 µm |
| Stiffener Thickness: |
0.2mm |
| Color Of Silkscreen: |
Black |
| Peeling Test Of Coverlay: |
No Peelable |
| RoHS Required: |
Yes |
| Function: |
100% Pass Electrical Test |
| Thermal Stress: |
No Delamination, No Blistering. |
| Structure: |
Single-Sided FPC |
| Material: |
Polyimide |
| Combination Mode: |
Adhesive Flexible Plate |
| Conductive Adhesive: |
Conductive Silver Paste |
| Application: |
Microwave Amplifier |
| Insulation Materials: |
Polyimide |
| Brand: |
Bicheng |
Product Description
Company Profile
Bicheng Enterprise Limited which was founded in Shenzhen China in 2003 is a professional
PCB export enterprise. We have established a good relationship of cooperation with well-known
enterprises in the same industry. Our PCB products range from fiberglass PCB, high frequency
PCB to metal core PCB and ceramic PCB's. This is a unique printed circuit board supplier and
export enterprise. She has groups of skilled manufacturing facilities just like the experienced
football players in the football field and every batch of shipment is like a beautiful gift transmitted
to your hands.

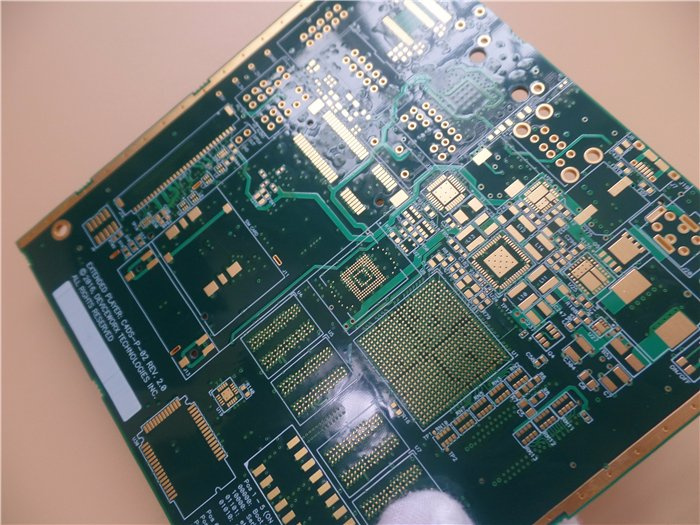

Printed Circuit Board

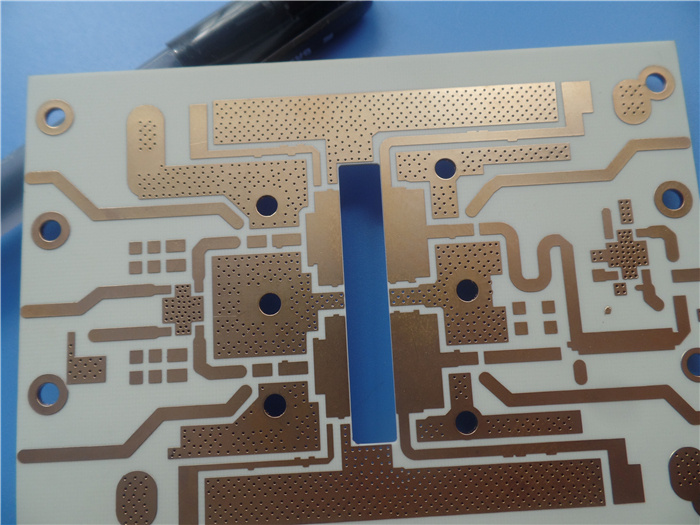

High Frequency PCB

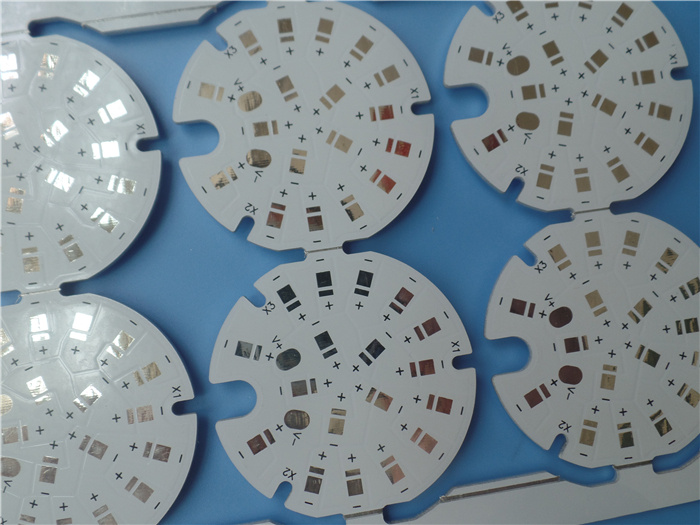

Aluminum PCB

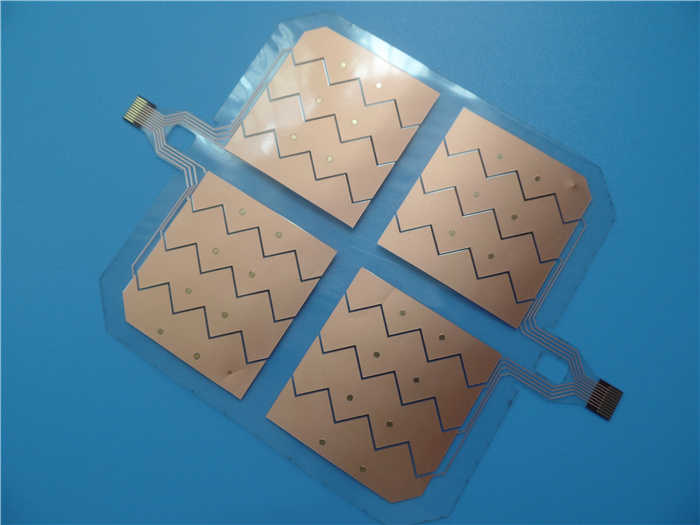

Flexible PCB
Technology informationBicheng Flexible Printed Circuit Capability| Specifications | Capabilities |
| Board Type | Single layer, Doulbe layer,
Multilayer, Rigid-Flex |
| Base Material | PI, PET |
| Copper Weight | 0.5oz, 1oz, 2oz |
| LED Maximum Size | 250 x 5000mm |
| General Maximum Size | 250 x 2000mm |
| Board Thickness | 0.03mm-3.0mm |
| Thickness Tolerance | ±0.03mm |
| Mininum Drill Hole | 0.05mm |
| Maximum Drill Hole | 6.5mm |
| Tolerance of Drill Hole | ±0.025mm |
| Thickness of Hole Wall | >= 8 um |
Minimum Track/Gap of
Single Layer Board | 0.025/0.03mm |
Minimum Track/Gap of Double
Layer and Multilayer Board | 0.03/0.040mm |
| Etching Tolerance | ±0.02mm |
| Minimum Width of Silk Legend | >= 0.125mm |
| Minimum Heigh of Silk Legend | >=0.75mm |
| Distance from Legend to Pad | >=0.15mm |
Distance from Opening Solder Mask
of Drill Coverlay to Track | >=0.03mm |
Distance from Opening Solder Mask
of Punching Coverlay to Track | >=0.03mm |
| Thickness of Immersion Nickel | 100-300u" |
| Thickness of Immersion Gold | 1-3u" |
| Thicnkess of Immersion Tin | 150-400u" |
| Minimum Electrical Testing Pad | 0.2mm |
Minimum Tolerance of Outline
(Normal Steel Mould Punch) | ±0.1mm |
Minimum Tolerance of Outline
(Precision Steel Mould Punch) | ±0.05mm |
| Mininum Radius of Bevel Angle (Outline) | 0.2mm |
| Stiffner Material | PI, FR-4, 3M Adhesive,
PET, Steel Sheet |
| RoHs | Yes |
| Solder Mask Colour | Yellow, White, Black, Green |
Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.
The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.
Different plant scale to suit for your requirements

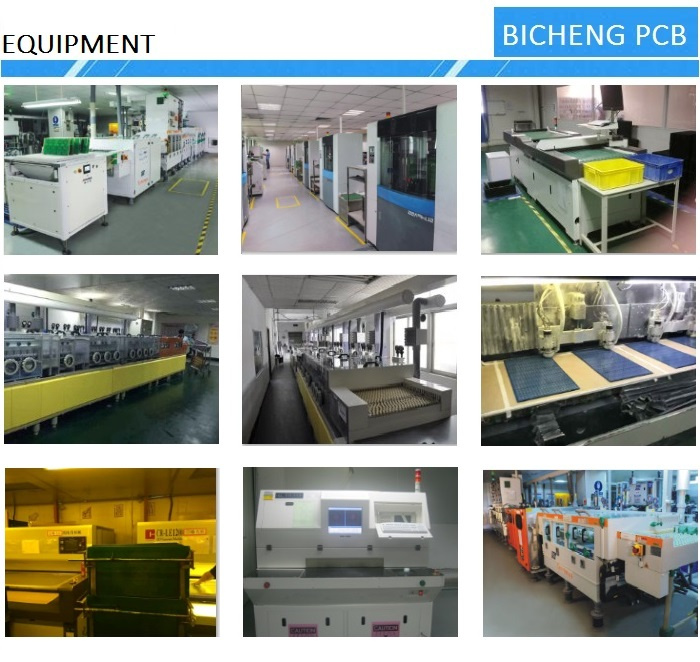

16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.
A) Various kinds of PCB products
Double sided PCB
Multilayer PCB up to 32 layers
FR-4 PCB (Tg130, Tg170)
High frequency PCB (RO4350B, RO4003C)
Aluminum PCB (1W/MK, 2W/MK, 3W/MK)
Flexible PCB
HDI PCB Board
B) Multiple PCB technology to meet the market demands
Blind via PCB, Via in pad PCB, Fine pitch BGA PCB
Impedance controlled PCB
Heavy copper PCB
Hybrid material PCB
C) Many discount policies for new customers
SMT stencil foil, free of charge
Prototype shipping cost, free of charge
Prototype test, free of charge
PCB panelization, free of charge
D) High quality PCB services
Engineering design prevents problems from occurring in pre-production.
Meet your PCB needs from prototype to mass volume production.
Eligible products rate of first production: >95%
Delivery on time: >98%, door to door shipment service
Customer complaint rate: <1%
Choose BichengPCB means you choose hassle free.
