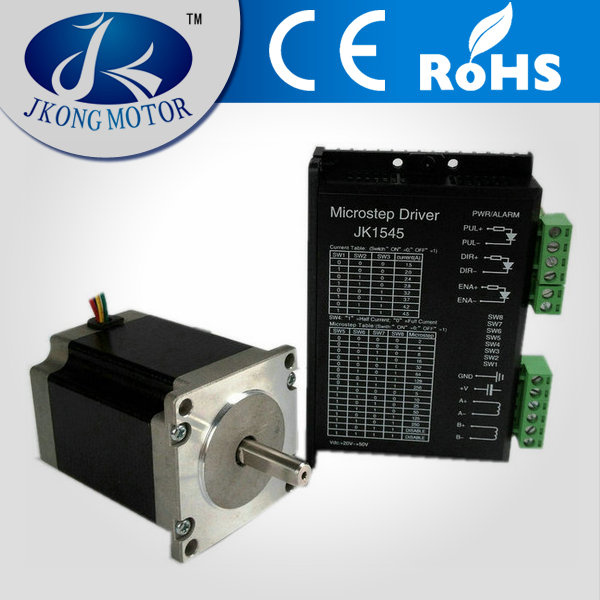

Stepper Motor and Stepper Motor Driver for Machine
| Price: |
US $ 4-45/Piece |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
NEMA 24, 34, 42, 52 Stepper Motor & Driver with CE, RoHS, OEM2 phase stepper motor, stepping motor, step motor
Professional manfacuturer for stepper motor, have NEMA8, NEMA11. NEMA14, NEMA17, NEMA23, NEMA34, NEMA42.
1.8 degree, 0.9 degree. Single shaft and double shaft. | Model No. | Step Angle | Motor Length | Current
/Phase | Resistance
/Phase | Inductance
/Phase | Holding Torque | # of Leads | Motor
Weight |
| ( °) | (L)mm | A | Ω | mH | g.cm | No. | Kg |
| JK20HS28-0204 | 1.8 | 28 | 0.2 | 24 | 8.0 | 160 | 4 | 0.05 |
| JK20HS30-0506 | 1.8 | 30 | 0.5 | 11.5 | 1.7 | 180 | 6 | 0.06 |
| JK20HS33-0604 | 1.8 | 33 | 0.6 | 6.5 | 2.2 | 200 | 4 | 0.07 |
| JK20HS38-0604 | 1.8 | 38 | 0.6 | 10 | 5.5 | 400 | 4 | 0.08 |
| Model No. | Step Angle | Motor Length | Current
/Phase | Resistance
/Phase | Inductance
/Phase | Holding Torque | # of Leads | Rotor Inertia | Motor
Weight |
| ( °) | (L)mm | A | Ω | mH | g.cm | No. | g.cm | Kg |
| JK28HS32-0956 | 1.8 | 32 | 0.95 | 2.8 | 0.8 | 430 | 6 | 9 | 0.11 |
| JK28HS32-0674 | 1.8 | 32 | 0.67 | 5.6 | 3.4 | 600 | 4 | 9 | 0.11 |
| JK28HS45-0956 | 1.8 | 45 | 0.95 | 3.4 | 1.2 | 750 | 6 | 12 | 0.14 |
| JK28HS45-0674 | 1.8 | 45 | 0.67 | 6.8 | 4.9 | 950 | 4 | 12 | 0.14 |
| JK28HS51-0956 | 1.8 | 51 | 0.95 | 4.6 | 1.8 | 900 | 6 | 18 | 0.2 |
| JK28HS51-0674 | 1.8 | 51 | 0.67 | 9.2 | 7.2 | 1200 | 4 | 18 | 0.2 |
| Model No. | Step Angle | Motor Length | Current
/Phase | Resistance
/Phase | Inductance
/Phase | Holding Torque | # of Leads | Detent Torque | Rotor Inertia | Motor
Weight |
| ( °) | (L)mm | A | Ω | mH | g.cm | No. | g.cm | g.cm | Kg |
| JK35HY26-0284 | 1.8 | 26 | 0.28 | 26 | 27 | 700 | 4 | 60 | 10 | 0.13 |
| JK35HY28-0504 | 1.8 | 28 | 0.5 | 20 | 18 | 1000 | 4 | 80 | 11 | 0.14 |
| JK35HY34-1004 | 1.8 | 34 | 1.0 | 2.7 | 4.3 | 1400 | 4 | 100 | 14 | 0.18 |
| Model No. | Step Angle | Motor Length | Current
/Phase | Resistance
/Phase | Inductance
/Phase | Holding Torque | # of Leads | Detent Torque | Rotor Inertia | Mass |
| ( °) | (L)mm | A | Ω | mH | kg.cm | No. | g.cm | g.cm | Kg |
| JK42HS34-0956 | 1.8 | 34 | 0.95 | 4.2 | 2.5 | 1.6 | 6 | 120 | 34 | 0.22 |
| JK42HS34-0406 | 1.8 | 34 | 0.4 | 24 | 15 | 1.6 | 6 | 120 | 34 | 0.22 |
| JK42HS34-0316 | 1.8 | 34 | 0.31 | 38.5 | 21 | 1.6 | 6 | 120 | 34 | 0.22 |
| JK42HS34-1334 | 1.8 | 34 | 1.33 | 2.1 | 2.5 | 2.2 | 4 | 120 | 34 | 0.22 |
| JK42HS40-1206 | 1.8 | 40 | 1.2 | 3.3 | 3.2 | 2.6 | 6 | 150 | 54 | 0.28 |
| JK42HS40-0806 | 1.8 | 40 | 0.8 | 7.5 | 6.7 | 2.6 | 6 | 150 | 54 | 0.28 |
| JK42HS40-0406 | 1.8 | 40 | 0.4 | 30 | 30 | 2.6 | 6 | 150 | 54 | 0.28 |
| JK42HS40-1684 | 1.8 | 40 | 1.68 | 1.65 | 3.2 | 3.6 | 4 | 150 | 54 | 0.28 |
| JK42HS48-1206 | 1.8 | 48 | 1.2 | 3.3 | 2.8 | 3.17 | 6 | 260 | 68 | 0.35 |
| JK42HS48-0806 | 1.8 | 48 | 0.8 | 7.5 | 6.3 | 3.17 | 6 | 260 | 68 | 0.35 |
| JK42HS48-0406 | 1.8 | 48 | 0.4 | 30 | 25 | 3.17 | 6 | 260 | 68 | 0.35 |
| JK42HS48-1684 | 1.8 | 48 | 1.68 | 1.65 | 2.8 | 4.4 | 4 | 260 | 68 | 0.35 |
| JK42HS60-1206 | 1.8 | 60 | 1.2 | 6 | 7 | 6.5 | 6 | 280 | 102 | 0.5 |
| Model No. | Step Angle | Motor Length | Current
/Phase | Resistance
/Phase | Inductance
/Phase | Holding Torque | # of Leads | Detent Torque | Rotor Inertia | Mass |
| ( °) | (L)mm | A | Ω | mH | kg.cm | No. | g.cm | g.cm | Kg |
| JK42HS34-0956 | 1.8 | 34 | 0.95 | 4.2 | 2.5 | 1.6 | 6 | 120 | 34 | 0.22 |
| JK42HS34-0406 | 1.8 | 34 | 0.4 | 24 | 15 | 1.6 | 6 | 120 | 34 | 0.22 |
| JK42HS34-0316 | 1.8 | 34 | 0.31 | 38.5 | 21 | 1.6 | 6 | 120 | 34 | 0.22 |
| JK42HS34-1334 | 1.8 | 34 | 1.33 | 2.1 | 2.5 | 2.2 | 4 | 120 | 34 | 0.22 |
| JK42HS40-1206 | 1.8 | 40 | 1.2 | 3.3 | 3.2 | 2.6 | 6 | 150 | 54 | 0.28 |
| JK42HS40-0806 | 1.8 | 40 | 0.8 | 7.5 | 6.7 | 2.6 | 6 | 150 | 54 | 0.28 |
| JK42HS40-0406 | 1.8 | 40 | 0.4 | 30 | 30 | 2.6 | 6 | 150 | 54 | 0.28 |
| JK42HS40-1684 | 1.8 | 40 | 1.68 | 1.65 | 3.2 | 3.6 | 4 | 150 | 54 | 0.28 |
| JK42HS48-1206 | 1.8 | 48 | 1.2 | 3.3 | 2.8 | 3.17 | 6 | 260 | 68 | 0.35 |
| JK42HS48-0806 | 1.8 | 48 | 0.8 | 7.5 | 6.3 | 3.17 | 6 | 260 | 68 | 0.35 |
| JK42HS48-0406 | 1.8 | 48 | 0.4 | 30 | 25 | 3.17 | 6 | 260 | 68 | 0.35 |
| JK42HS48-1684 | 1.8 | 48 | 1.68 | 1.65 | 2.8 | 4.4 | 4 | 260 | 68 | 0.35 |
| JK42HS60-1206 | 1.8 | 60 | 1.2 | 6 | 7 | 6.5 | 6 | 280 | 102 | 0.5 |
| Model No. | Step Angle | Motor Length | Current /Phase | Resistance /Phase | Inductance /Phase | Holding Torque | # of Leads | Detent Torque | Rotor Inertia | Mass |
| ( ° ) | (L)mm | A | Ω | mH | N. m | No. | g. cm | g. cm | Kg |
| JK57H41-1006 | 1.8 | 41 | 1 | 5.2 | 5.5 | 0.4 | 6 | 250 | 150 | 0.47 |
| JK57H41-0604 | 1.8 | 41 | 0.6 | 12 | 24 | 0.55 | 4 | 250 | 150 | 0.47 |
| JK57H41-2004 | 1.8 | 41 | 2 | 1.2 | 2.5 | 0.55 | 4 | 250 | 150 | 0.47 |
| JK57H45-0604 | 1.8 | 45 | 0.6 | 12 | 26 | 0.8 | 4 | 280 | 190 | 0.52 |
| JK57H45-2504 | 1.8 | 45 | 2.5 | 1.0 | 2.2 | 0.8 | 4 | 280 | 190 | 0.52 |
| JK57H51-0604 | 1.8 | 51 | 0.6 | 13 | 28 | 1.1 | 4 | 300 | 230 | 0.59 |
| JK57H51-2504 | 1.8 | 51 | 2.5 | 1.2 | 3.2 | 1.1 | 4 | 300 | 230 | 0.59 |
| JK57H51-0806 | 1.8 | 51 | 0.8 | 6.8 | 9.2 | 0.62 | 6 | 300 | 230 | 0.59 |
| JK57H56-1506 | 1.8 | 56 | 1.5 | 3.2 | 5.5 | 0.9 | 6 | 350 | 280 | 0.68 |
| JK57H56-2504 | 1.8 | 56 | 2.5 | 1.3 | 4.2 | 1.1 | 4 | 350 | 280 | 0.68 |
| JK57H56-3004 | 1.8 | 56 | 3 | 0.8 | 2.4 | 1.1 | 4 | 350 | 280 | 0.68 |
| JK57H56-4204 | 1.8 | 56 | 4.2 | 0.4 | 1.2 | 1.1 | 4 | 350 | 280 | 0.68 |
| JK57H64-1004 | 1.8 | 64 | 1.0 | 7.5 | 20 | 1.5 | 4 | 500 | 380 | 0.85 |
| JK57H64-2504 | 1.8 | 64 | 2.5 | 1.5 | 4.5 | 1.5 | 4 | 500 | 380 | 0.85 |
| JK57H64-3004 | 1.8 | 64 | 3.0 | 0.8 | 2.3 | 1.5 | 4 | 500 | 380 | 0.85 |
| JK57H64-4204 | 1.8 | 64 | 4.2 | 0.55 | 1.2 | 1.5 | 4 | 500 | 380 | 0.85 |
| JK57H76-1506 | 1.8 | 76 | 1.5 | 4.5 | 9.2 | 1.4 | 6 | 600 | 440 | 1.1 |
| JK57H76-2504 | 1.8 | 76 | 2.5 | 1.8 | 6.5 | 1.8 | 4 | 600 | 440 | 1.1 |
| JK57H76-3004 | 1.8 | 76 | 3.0 | 1.0 | 3.5 | 1.8 | 4 | 600 | 440 | 1.1 |
| JK57H76-4204 | 1.8 | 76 | 4.2 | 0.6 | 1.8 | 1.8 | 4 | 600 | 440 | 1.1 |
| JK57H112-3004 | 1.8 | 112 | 3.0 | 1.6 | 6.8 | 2.8 | 4 | 1200 | 800 | 1.4 |
| JK57H112-4204 | 1.8 | 112 | 4.2 | 0.9 | 3.8 | 2.8 | 4 | 1200 | 800 | 1.4 |
| Model No. | Step Angle | Motor Length | Current
/Phase | Resistance
/Phase | Inductance
/Phase | Holding Torque | # of Leads | Detent Torque | Rotor Inertia | Mass |
| ( °) | (L)mm | A | Ω | mH | N.m | No. | Kg.cm | g.cm | Kg |
| JK86HS67-5904 | 1.8 | 67 | 5.9 | 0.28 | 1.7 | 3.4 | 4 | 0.8 | 1000 | 1.7 |
| JK86HS67-2808 | 1.8 | 67 | 2.8 | 1.4 | 3.9 | 3.4 | 8 | 0.8 | 1000 | 1.7 |
| JK86HS78-5504 | 1.8 | 78 | 5.5 | 0.46 | 4 | 4.6 | 4 | 1.2 | 1400 | 2.3 |
| JK86HS78-4208 | 1.8 | 78 | 4.2 | 0.75 | 3.4 | 4.6 | 8 | 1.2 | 1400 | 2.3 |
| JK86HS115-6004 | 1.8 | 115 | 6.0 | 0.6 | 6.5 | 8.7 | 4 | 2.4 | 2700 | 3.8 |
| JK86HS115-4208 | 1.8 | 115 | 4.2 | 0.9 | 6 | 8.7 | 8 | 2.4 | 2700 | 3.8 |
| JK86HS155-6204 | 1.8 | 155 | 6.2 | 0.75 | 9 | 12.2 | 4 | 3.6 | 4000 | 5.4 |
| JK86HS155-4208 | 1.8 | 155 | 4.2 | 1.25 | 8 | 12.2 | 8 | 3.6 | 4000 | 5.4 |
| Model | Step Angle | Motor Length | Current
/Phase | Resistance
/Phase | Inductance
/Phase | Holding Torque | # of Leads | Detent Torque | Rotor Inertia | Mass |
| ( °) | (L)mm | A | Ω | mH | N.m | No. | kg.cm | g.cm | Kg |
| JK110HS99-5504 | 1.8 | 99 | 5.5 | 0.9 | 12 | 11.2 | 4 | 3 | 5500 | 5 |
| JK110HS150-6504 | 1.8 | 150 | 6.5 | 0.8 | 15 | 21 | 4 | 5.9 | 10900 | 8.4 |
| JK110HS201-8004 | 1.8 | 201 | 8 | 0.67 | 12 | 28 | 4 | 7.5 | 16200 | 11.7 |
How about my factory :
| Prod Model: |
57HS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Eastern Asia,Western Europe |
| Color: |
Black |
| Phase: |
2 Phase |
| Step Angel: |
1.8 Degree |
| Current: |
0.6-2.5A |
| Number Of Stator: |
Two-Phase |
| Excitation Mode: |
HB-Hybrid |
| Type: |
Electromechanical |
| Application: |
Other |
| Operate Mode: |
Driver |
| Certification: |
CE and RoHS |
| Brand: |
Jk |
Changzhou Jingkong Motor&Electric Appliance Co., Ltd. Was found in 2005 located in High Technology Industry Zone in changzhou, China, has more than 100 staff and occupies an area of more than 3000 square meters. Now we are already passed RoHS and CE testing.
We offer excellent stepper motors, Stepper Motor Driver, DC Servo Motor, stepper Motor Power Supply, Stepper Motor Kit, CNC router. These are the best motors on the market. Stepper Motor is used on CNC router, CNC lathes, small to MID-sized CNC mills & milling machines, Laser Engravers and Laser cutters, Vinyl Sign Cutters, CNC Plasma Cutters, and CNC Foam Cutters. The stepper motor also has been used in precision telescope positioning systems and robots. Low inductance and high torque make these Motor the best choice.
We are an professional manufacturer for stepper motor, stepper driver, BLDC motor and DC motor.
We make hybrid stepper motor, hybrid gear stepper motor, hybrid stepper motor driver, brushless DC motor. Spindle motor,
For stepper motor mainly have 20mm(8), 28mm(NEMA 11), 35mm(NEMA 14), 39mm(NEMA 16), 42mm(NEMA 17), 57mm(NEMA 23), 60mm (NEMA24), 86mm (NEMA 34), 110mm (NEMA 42) and so on.
Competotive price and high quality. Hope can cooperate with you.
