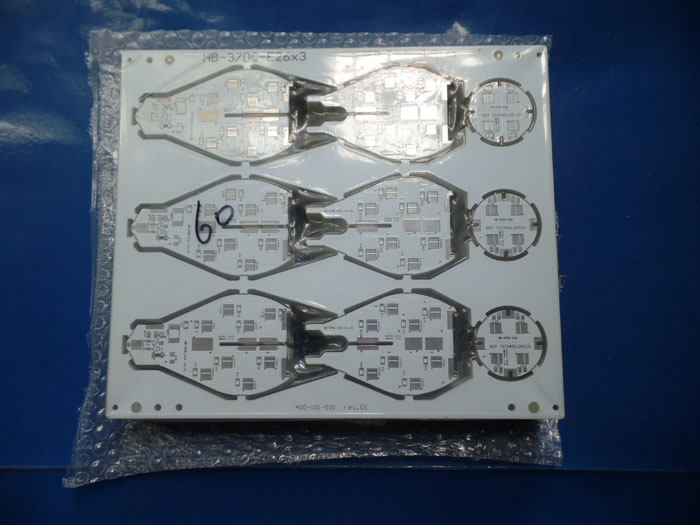

UL Certified White Double Sided PCB Board with HASL Finished
| Price: |
US $ 0.71/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-140-V1.40 |
| Final Foil External: |
1 Oz |
| Final Height Of PCB: |
1.6mm |
| Surface Finish: |
Hot Air Soldering Leveling(HASL) |
| Solder Mask Color: |
White |
| Colour Of Component Legend: |
Black |
| Minimum Trace And Space: |
5.8 Mil/5.4 Mil |
| Minimum / Maximum Holes: |
0.3/3.3mm |
| Via: |
Plated Through Hole(Pth) |
| Board Plating: |
0.0029" |
| Test: |
100% Electrical Test |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description

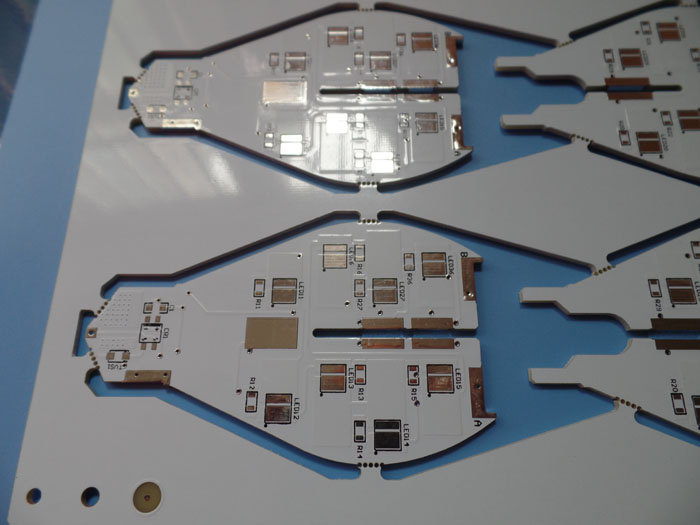

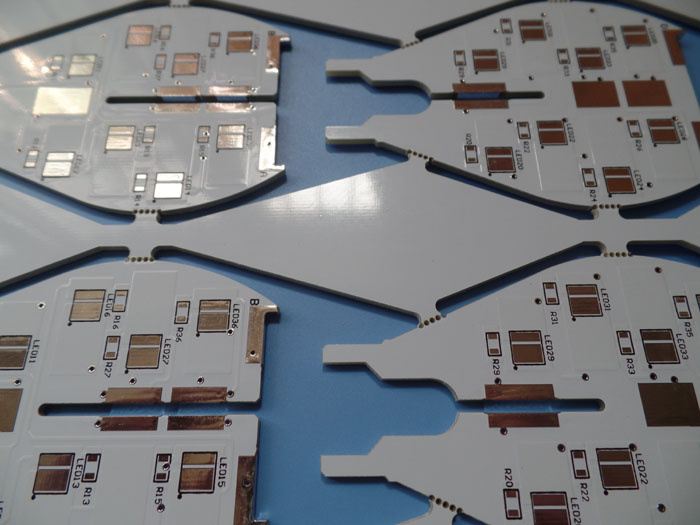

Double sided PCB UL Certified White PCB Solder Mask White FR-4 1.6mm Thick HASL
Applied In Rack Rails
Commodity IntroductionThis is a type of FR-4 PCB for the application of Rack Rails. It's a 2 layer board at 1.6mm thick.
The base laminate is from ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated per IPC
6012 Class 2 using supplied Gerber data. Each 10 boards or panels are packed separately.
Parameters & Data Sheet| PCB SIZE | 210 x 202mm=2 designs = 9PCS |
| BOARD TYPE | |
| Number of Layers | Double Sided PCB, 2 layer PCB |
| Surface Mount Components | YES |
| Through Hole Components | NO |
| LAYER STACKUP | copper ------- 18um(0.5 oz)+plate TOP layer |
| FR-4 1.5mm |
| copper ------- 18um(0.5 oz)+plate BOT Layer |
| TECHNOLOGY | |
| Minimum Trace and Space: | 5.8mil/5.4mil |
| Minimum / Maximum Holes: | 0.3/3.3mm |
| Number of Different Holes: | 9 |
| Number of Drill Holes: | 1245 |
| Number of Milled Slots: | 21 |
| Number of Internal Cutouts: | 1 |
| Impedance Control: | no |
| Number of Gold finger: | 0 |
| BOARD MATERIAL | |
| Glass Epoxy: | FR-4 TG135ºC, CTI 175V-249V, er<5.4. Shengyi Supplied |
| Final foil external: | 1oz |
| Final foil internal: | 0oz |
| Final height of PCB: | 1.6mm ±0.16 |
| PLATING AND COATING | |
| Surface Finish | Hot Air Soldering Leveling(HASL), Sn>=2.54µm |
| Solder Mask Apply To: | TOP and Bottom, 12micron Minimum |
| Solder Mask Color: | White, PSR400 WT02, Taiyo Supplied |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | TOP |
| Colour of Component Legend | Black |
| Manufacturer Name or Logo: | Marked on the board in a conductor and
leged FREE AREA |
| VIA | Plated through hole(PTH), via tented. |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" |
| Board plating: | 0.0029" |
| Drill tolerance: | 0.002" |
| TEST | 100% Electrical Test prior shipment |
| APPLICATION: | Rack rails, Wireless Router Range
Inveter
Power Invertor
3G USB Dongle
Electricity Converter |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
Frequently Asked Questions
1. Do you sell prototype PCB?
Yes. We offer PCB prototypes up to 32 layers, inclusive of FR-4 PCB, high frequency PCB,
MCPCB and flexible PCB.
2. How to order PCBs?
1st step, sending your gerber files for quotation.
2st step, placing your order form to our market department and make the payment.
3rd step, Our CADCAM department is dealing with your gerber files, sending you EQ (if it has)
for final confirmation.
4th step, PCB is manufactured.
5th step, Shipment and send you tracking number.
Fast PCB prototypes| Category | Fastest lead time | Stanardard lead time |
| 2 layer | 24 hrs | 4 days |
| 4 layer | 48 hrs | 5 days |
| 6 layer | 72 hrs | 7 days |
| 8 layer | 96 hrs | 9 days |
| 10 layer | 120 hrs | 11 days |
| 12 layer | 120 hrs | 12 days |
| 14 layer | 144 hrs | 15 days |
| 16-20 layer | Depends on specifications |
| 20 layer above | Depends on specifications |
