Basic Info

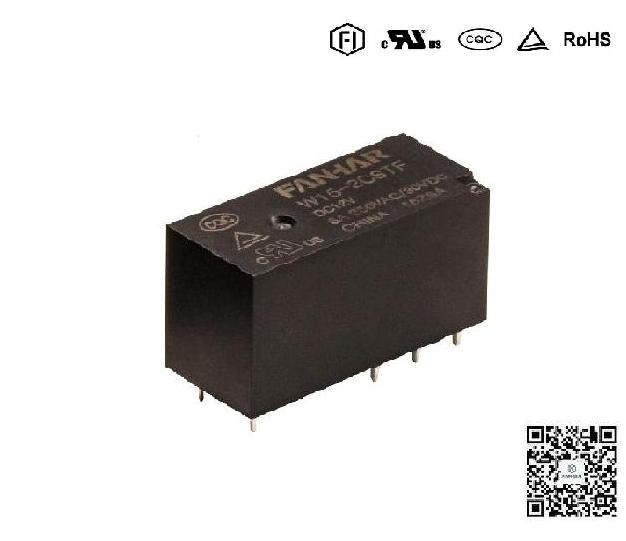

Model NO.: W15-2
Contact Form: 2A = 2OPEN 2B= 2CLOSE 2C= 2 Switch
Product protective: S=Sealed Nil= Soldered
Contact material: T = AgSnO2 Nil = AgNi
Insulation System:Nil:B grade F= F grade
Dimension: 29*12.7*15.7 MM
Weight: Approx 12g
Trademark: FANHAR
Origin: China
Product Description
1. Two sets of 12A contact switching capability
2. The withstand voltage between coil and contact can reach 12KV
3. Creepage distance and air distance are greater than 15mm.
4.UL insulation class : F grade.
Contact Data:
| Contact Form | 2A 2B 2C |
| Rated load | 8A 250VAC/30VDC |
| Max Switching Voltage | 277VAC/30VDC |
| Max Switching Current | 12A |
| Max Switching Capacity | 2000VAC/240W |
| Min Allowing load | 5VDC 100mA |
| Contact Resistance | 100mΩ (at 6VDC 1A) |
| Insulation Resistance | 1000MΩ (at 500VDC) |
General Data:
| Withstand Voltage Between open contacts | 1000VAC 1min |
| Between contacts sets | 2500VAC 1min |
| Between coil and contacts | 4000VAC 1min |
| Withstand impact voltage | Between coil and contacts 12kv(1.2X50us) |
| Operate Time | Max.15ms |
| Release Time | Max.5ms |
| Mechanical life | 10,000,000 ops ON/OFF = 0.1s/0.1s |
| Electrical life | 8A 250VAC/30VDC 50,000 ops ON/OFF=1s/9s |
Impact Resistance Misoperation
Durability | 100m/s² Approx10G
1000m/s² Approx100G |
Vibration Resistance Misoperation
Durability | 10 - 55 Hz 1.5mm Double Amplitude
10 - 55 Hz 1.5mm Double Amplitude |
| Temperature Range | -40ºC to +85ºC |
| Humidity | 5% to 90% |
| Installation type | PCB Mounting |
| Certification | UL/C-UL:E475405
TUV:R50332875
CQC:CQC15002137649 |
Coil Data:
Standard:
| Coil rated voltage | Operating
voltage | Releasing
Voltage | Coil rated
Current
(±10%) | Coil resistance(±10%) | Rated consumed power | Allowing voltage |
| DC 3V | Below 75%
rated voltage (initial) | above 5%
rated voltage (initial) | 133mA | 22.5Ω | 400mW | 90-130 %
Rated voltage |
| DC 5V | 80mA | 62.6Ω |
| DC 6V | 66.7mA | 90Ω |
| DC 9V | 44.5mA | 202.5Ω |
| DC 12V | 33.4mA | 360Ω |
| DC 15V | 26.7mA | 562.5Ω |
| DC 18V | 22.3mA | 810Ω |
| DC 24V | 16.7mA | 1440Ω |
| DC 48V | | | 8.4mA | 5760Ω | | |
