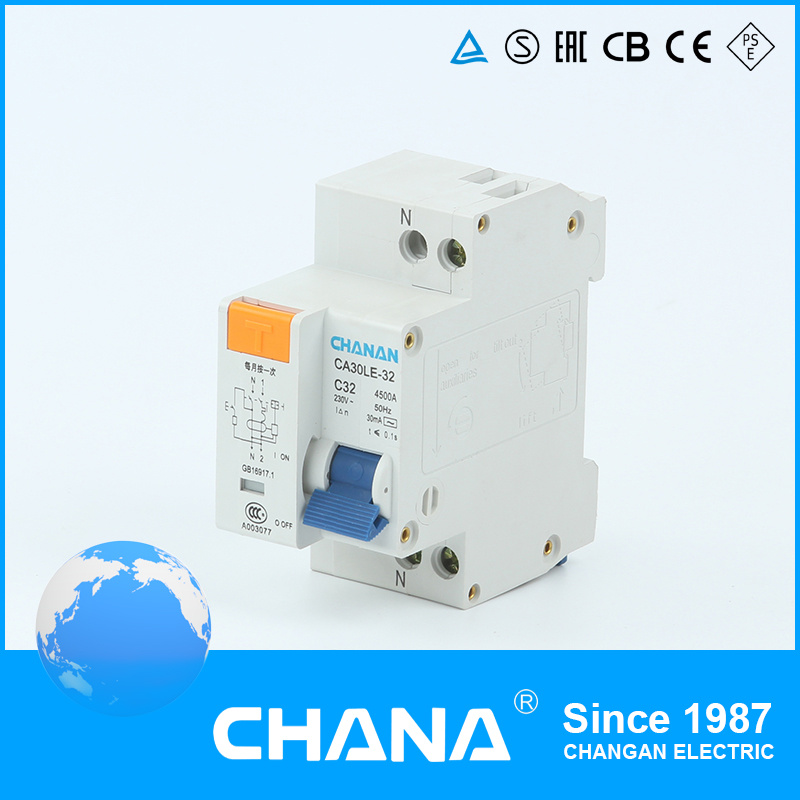

CA30LE-40 Electronic Type RCCB with Over Current Protection RCBO

Name: CA30LE-40 Electronic Type RCCB with Over Current Protection RCBO
Brand: all-electronics-online.com
SKU: 744944015
Availability: InStock
Rating: 4.4 (80 reviews)

Price:	US $ 3-4/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	CA30LE-40
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Manufacturer:	Original Factory
Company Credit Rate:	AAA
Company Certification:	ISO9001 SGS
Company Szie:	Over 2000 Stuff
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	High-Speed Circuit Breaker
Arc-extinguishing Medium:	Air
Structure:	MCB
Certification:	CCC
Installation:	DIN Rail
Poles Number:	1p+N
Function:	RCCB with Overcurrent Protection

Product Description

Free samples can be provided!!!
Product Description

Electrical Features
Type (wave form of the earth leakage sensed): AC, A
Thermo-magnetic release characteristic: B, C
Rated current In: 6, 10, 16, 20, 25, 32A
Poles: 1P+N
Rated voltage Ue: 230/240V
Rated sensitivity I? N: 0.01, 0.03, 0.1, 0.3A
Rated residual making and breaking capacity I? M: 500A
Rated short-circuit capacity lcn: 3, 000A
Break time under I? N:? 0.1s
Rated frequency: 50/60Hz
Rated impulse withstand voltage (1.2/50)Uimp: 4, 000A
Dielectric TEST voltage at ind. Freq. For 1min: 2kV
Insulation voltage Ui: 300V
Pollution degree: 2

Mechanical Features
Electrical life: 2, 000
Mechanical life: 4, 000
Contact position indicator: Yes
Protection degree: IP20
Ambient temperature (with daily average≤ 35º C ): -5º C...+40º C
Storage temperation: -25º C...+70º C

Installation
Terminal size top/bottom for cable: 10mm2
Terminal size top/bottom for busbar: 10mm2
Tightening torque 1.2 N*m
Mounting: On DIN rail EN 60715 (35mm) by means of fast clip device
Connection: From top
