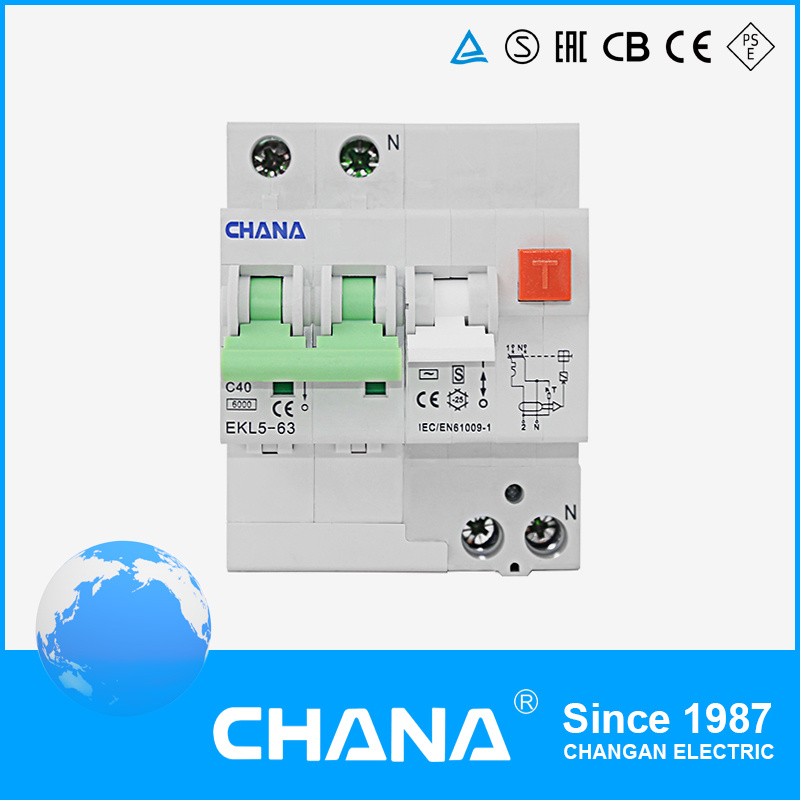

(Electronic Type) RCCB with Overcurrent Protection

Name: (Electronic Type) RCCB with Overcurrent Protection
Brand: all-electronics-online.com
SKU: 812316795
Availability: InStock
Rating: 4.7 (57 reviews)

Price:	Negotiable/Piece
Min Order:	60/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	EKL5-63
IEC Standard:	IEC61009-1, En61009-1
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	ELCB
Certification:	TUV
Poles Number:	2p(1p+N),4p(3p+N)

Product Description

Electrical Features

Type (Wave form of the earthakage sensed)	AC,A
Thermo-magnetic release characteristic	B,C
Rated current In MCB+add-on RCD block	6,10,16,20,25,32,40,50,63A
Poles	2P(1P+N),4P(3P+N)
Rated Voltage Ue	240/415V
Rated Sensitivity IΔn MCB+add-on RCD block	0.03, 0.1, 0.3A
Rated residual making and breaking capacity IΔm	500A(In≤40A) , 630(In>40A)
Rated short-circuit capacity Icn	4500/6000A

Break time under IΔn	≤0.1s
Rated frequency	50/60Hz
Rated impulse withstand voltage (1.2/50) Uimp	4000V
Dielectric TEST voltage at ind.Freq.For 1 min	2KV
Insulation voltage Ui	500V
Pollution degree	2

Mechanical Features

1. Contact position indicator: Yes
2. Protection degree: IP20
3. Ambient temperature(with daily average≤35ºC): -5ºC...+40ºC
4. Storage temperation: -25ºC...+70ºC

Installation

1. Terminal connection type: Cable/U-type busbarr/Pin-type busbar.
2. Terminal size top/bottom for cable: 25mm² 18-3AWG
3. Terminal size top/bottom for busbar: 25mm² 18-3AWG
4. Tightening torque 2 N*m 18In-Ibs.
5. Mounting: On DIN rail EN 60715 (35mm) by means of fast clip device
6. Connection: From top and bottom (for combined type)
From top (MCB+add-on RCD block)
