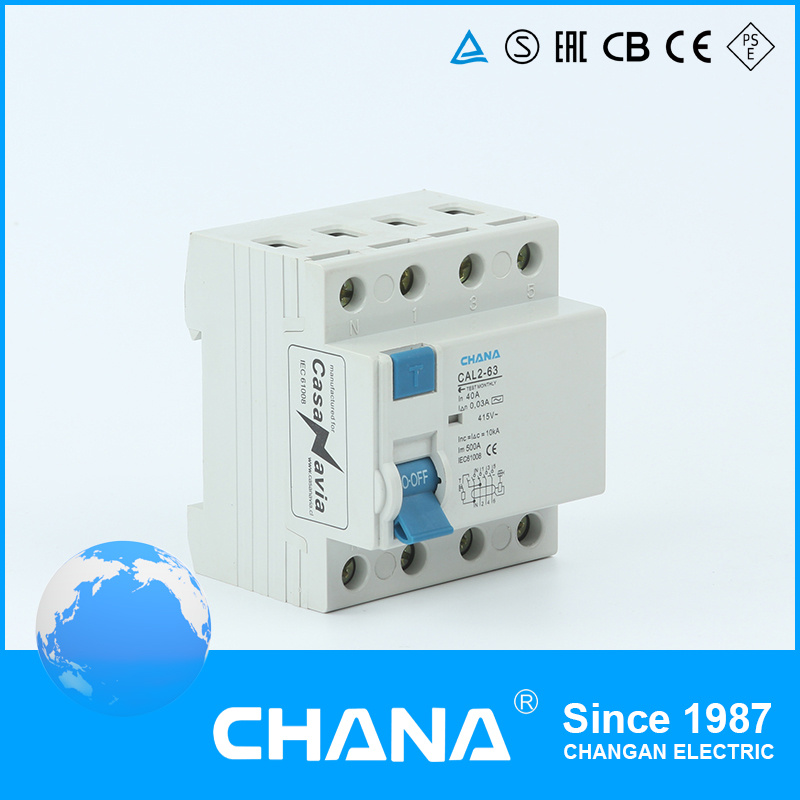

Electro-Magnetic Type RCCB 50A Residual Current Circuit Breaker

Prod Model:	CAL2-63
Pole Type:	2p and 4p
Current Range:	25A,40A,50A,63A
Rated Voltage:	240/415V
Brand Type:	Chana or OEM
Rated Sensitivity:	0.03A,0.1A,0.3A
Breaking Capacity:	Low Voltage Circuit Breakers
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCB
Poles Number:	2
Certification:	TUV
Operation:	Electro-Magnetic

Product Description

Electro-magnetic Type RCCB Residual Current Circuit Breaker

1. Specification


Standard	IEC61008-1
Electrical Feature
Type(wave form of the earth leakage sensed)		AC, A, AC~S, A~S
Rated current In	A	25,40,50,63
Poles	P	2,4
Rated voltage Ue	V	240/415
Rated sensitivity	A	0.03,0.1,0.3
Insulation voltage Ui	V	500
Rated residual making and breaking capacity	A	500(In=25/40A) 630(In=50/63A)
Short-circuit current Inc	A	4500/6000A
SCPD fuse		6000
Break time under	S	≤0.1
Rated frequency	Hz	50/60
Rated impulse withstand voltage(1.2/50) Uimp	V	4000
Dielectric test voltage at ind. Freq. For 1 min	V	2500
Pollution degree		2
Mechanical Feature
Electrical life		2000
Mechanical life		2000
Fault current indicator		Yes
Protection degree		IP20
Ambient temperature (with daily average≤ 35º C)	º C	-5...+40
Storage temperation	º C	-25...+70
Installation
Terminal connection type	Cable/U-type busbar/Pin-type busbar
Terminal size top/bottom for cable	25mm2 18-3AWG
Terminal size top/bottom for busbar	25mm2 18-3AWG
Tightening torque	2.5 N*m 18 In-Ibs
Mounting	On DIN rail EN 60715 (35mm) by means of fast clip device
Connection	From top and bottom

2. Dimension(mm)



3. Feature Product



4. About Us

Established in 1987, CHANGAN is a large national enterprise, located in China Electric Appliance Capital- Liushi. Taking the industrial electric appliance as the leading sector, Integrating the R&D, information, trade, services, manufacture and sale of high and low voltage electrical apparatus, Instrument and Meter, Power Supply Equipment, Power Distribution Cabinet and Electric product for building and construction.

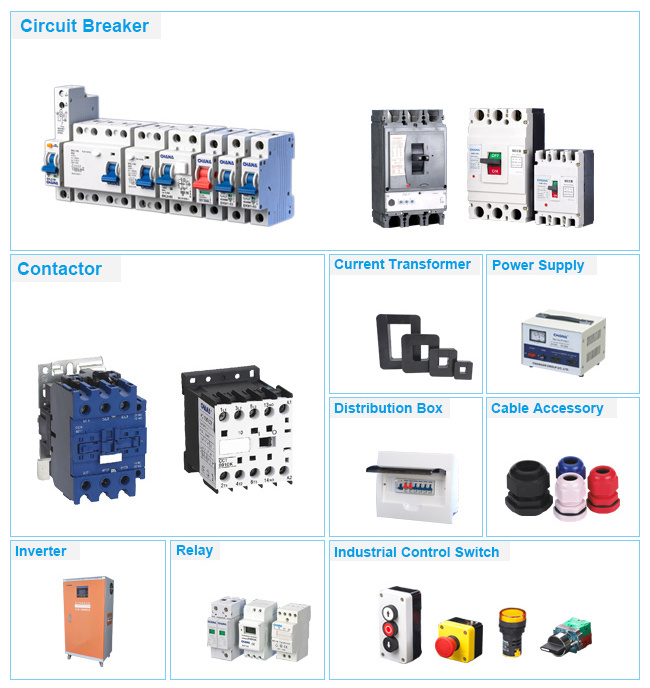

As core company, CHANGAN GROUP CO., LTD. is mainly engaged in
MCB, RCCB, RCBO, MCCB, CONTACTOR, THERMAL RELAY, SPD, MPS, STARTER,
STABLIZER, PUSH BUTTON SWITCH, INDICATOR, TERMINAL, CABLE ACCESSORIES etc. Company own over 2000 employees, 116000 square meter construction area, registered capital totalizing to 0.10518 billion RMB, it has established over 500 sales branches throughout the whole country.

Certificate:ISO9001,ISO14001,OHSAS18001,CCC,SEMKO,CE,CB,TUV,EAC,TSE.Products are sold to UK, France, Russia, Turkey, German, Brazil, Argentina, South Africa, Egypt, Iran and other 60 countries and areas.

5. FAQ(Packaging & shipping)

Q 1.What's the payment term?
A.We accept tt,30% deposit and 70% balance agaisnt the copy of b/l.

Q 2.How's the delivery time ?
A.Usually it will take about 25 days for production

Q 3.Tell me the standard of package?
A.Normally are cartons, but also we can pack it according to your requirement.

Q4.Could you offer form a or c/o ?
A.It's totally not a problem.
We can prepare relative documents to forgin affairs office or other office  to apply for this certificate.

Q5.Would you accept to use our logo ?
A.If you have good quantity,it absolute no problem to do oem
