Cfbhx Tensile and Compression Bending Cantilever Type Sensor

Name: Cfbhx Tensile and Compression Bending Cantilever Type Sensor
Brand: all-electronics-online.com
SKU: 804310965
Availability: InStock
Rating: 4.9 (58 reviews)

Price:	US $ 98-999/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	BND-CFBHX
Delivery Time:	3-7days
Warranty:	1year
Product Name:	50kg Cantilever Type Sensor
Insulation Resistance:	≥5000mΩ(50VDC)
Recommended Excitation Voltage:	10V~15V
Safety Overload:	150%F·s
Output Resistance:	350±5Ω
Input Resistance:	350±20Ω
Diameter:	32cm
Measuring Range:	50kg-2t/2.5t-5t/6t-10t

Product Description

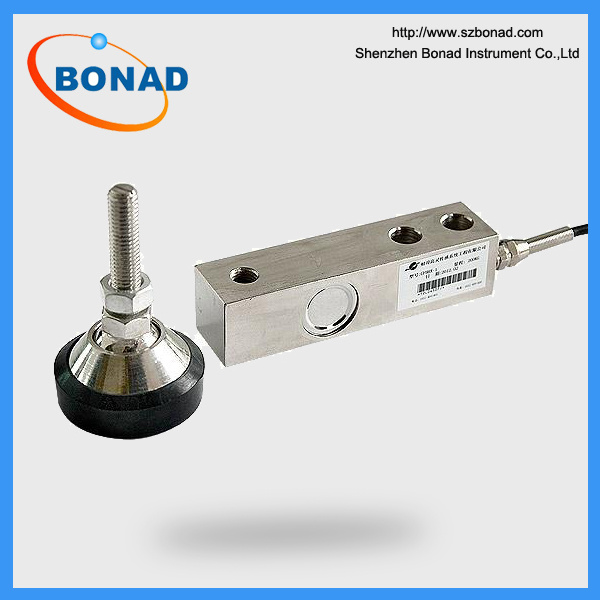

CFBHX tensile and compression bending Cantilever type sensor

1.The sensor elastomer uses shear or bending cantilever structure, one end of the fixed, one end of the force, low profile height, high strength

2.can be used for a variety of tensile and compression force load and measurement.With a dust seal, a wide range, high precision, stable and reliable, easy to install and use.

3.Applicable to electronic scales, weighing and other measuring force, weighing industrial automation measurement and control system

Technical parameters

Parameters	Unit	Parameters	Parameters	Unit	Technical Index
Sensitivity	mV/V	2.0±0.05	temperature sensitivity coefficient	≤%F·S/10ºC	±0.02
Nonlinear	≤%F·S	±0.03	Operating Temperature Range	ºC	-20ºC~+80ºC
Lag	≤%F·S	±0.03	Input Resistance	Ω	350±20Ω
Repeatability	≤%F·S	±0.02	Output Resistance	Ω	350±5Ω
Motility changes	≤%F·S/30min	±0.03	Safety overload	≤%F·S	150% F·S
Zero output	≤%F·S	±1	Insulation Resistance	MΩ	≥5000MΩ(50VDC)
Zero temperature coefficient	≤%F·S/10ºC	±0.03	Recommended excitation voltage	V	10V-15V
