Coaxial Cable Rg59 RG6 Conical Connector

Name: Coaxial Cable Rg59 RG6 Conical Connector
Brand: all-electronics-online.com
SKU: 704476275
Availability: InStock
Rating: 4.8 (96 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	20000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Generally Coaxial Connector
Coupling Mechanism:	Threaded Connection

Product Description

Featues:

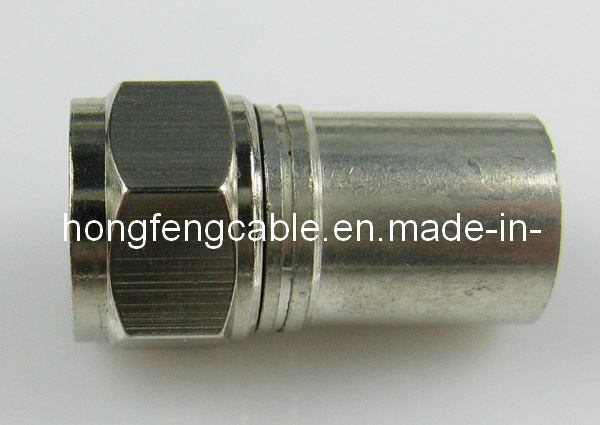

RG6 f conic connector
Material: Brass /zinc
Gender: Female
Length: 20.2 mm, Connection pipe inner 4.9 mm in diameter
Cable:; RG-59/; RG-6

Applications:

Telecom
Antennas
Radios
Broadcast
Coaxial cable
CCTV

About us:

OEM are welcome.
We have many types connector for your choosing, if you have any query please fell free to contact me, I am glad service for you.
We have professional team to service for you, please tell me your detail information then I will offer you the right products you need

Packing Details:

100PCS/pack

25packs/carton

Temp-range		-40° C~+60° C
Impedance		75Ω
Frequency range		0~1GHz
Center conductor withdrawal force		≥ 0.49N
Contact resistance	Center conductor	≤ 6mΩ
	Outer conductor	≤ 1mΩ
Insulation resistance		≥ 1000MΩ
Withstand Voltage	At sea level	750V
Working voltage		170V max
VSWR	Straight	≤ 1.20
	Angle	≤ 1.30
Durability		500 cycles
