Digital Multimedia Cable 2RG6 and 2CAT6 Combo Cable for CATV

Name: Digital Multimedia Cable 2RG6 and 2CAT6 Combo Cable for CATV
Brand: all-electronics-online.com
SKU: 788253385
Availability: InStock
Rating: 4.6 (64 reviews)

Price:	Negotiable/Meter
Min Order:	30000/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	CAT6
Size Of Conductor:	23AWG/24AWG
Numbers Of Conductor:	8
Insulation:	HDPE
Jacket:	PVC/PE
Color:	Customers'request
Outer Carton Size:	414148cm
Test:	Fluke Link
Application:	Submarine Cable
Conductor Material:	Copper
Cover Material:	PVC
Type:	Cat 6
Certification:	VDE
Model:	CAT6 UTP
Brand:	Cx-Cable

Product Description

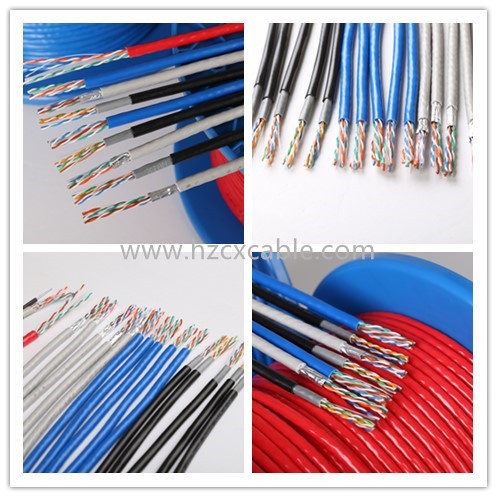

Digital Multimedia Cable 2RG6 and 2CAT6 Combo Cable for CATV

Construction:

1. Conductor: 0.57±0.01mm(23AWG) Bare copper
2. Insulation: 1.02±0.03mm HDPE
3. Cores/Pairs: 8/4
4. Sheath: 6.0±0.3mm PVC (PE, LSZH)
5. Messenger

Options: Jelly Compound, Jacket: UV, RoHS complied.

Electrical Performance:

1.0`250.0MHz Impedance(ohms)	100±15
1.0~250.0MHz Delay Skew(ns/100m)	≤45
20ºC Conductor D.C, Resistance(ohms/km)	≤65.8
Unbalance of Pair(%)	≤1.0

Technical Performance:

Frequency MHz	Impedance ohm	RL	Attenuation dB/100m	Next Db/100m	ELFEXT dB/100m	PS NEXT Db/100m	PS FLFEXT Db/100M	Propagation speed m/s
Frequency MHz	Impedance ohm	db	Attenuation dB/100m	Next Db/100m	ELFEXT dB/100m	PS NEXT Db/100m	PS FLFEXT Db/100M	Propagation speed m/s
1	100± 15	20	2	65.3	63.8	62.3	60.8	0.65C
4		23	4.1	56.3	51.7	53.3	48.7
8		25	5.8	51.8	45.7	48.8	42.7
10		25	6.5	50.3	43.8	47.3	40.8
16		25	8.2	47.3	39.7	44.2	36.7
20		25	9.3	48.5	37.7	42.8	34.7
25		24	10.4	44.3	35.8	41.3	32.8
31.25		24	11.6	42.9	33.9	39.9	30.9
62.5		22	17	38.4	27.8	35.4	24.8
100		20	22	35.3	23.8	32.3	20.8
155	10± 18	19	28.1	33	20	29	17
200	10± 18	19	32.4	31	18	28	15
310	100± 22	18	41.8	28	14	25	11
350	100± 22	17	44.9	27	13	24	10

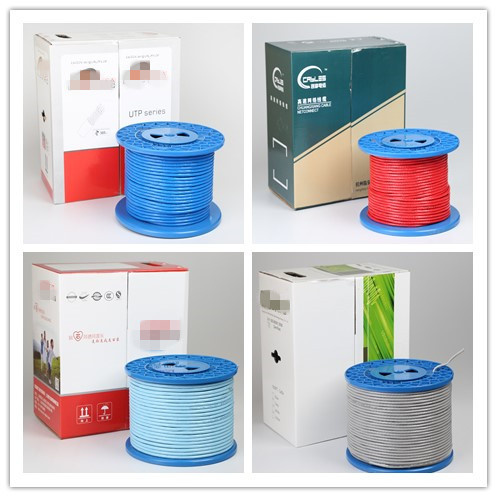

Cable Packing Details:
300m/easy pull box/Outer Carton
305m/easy pull box/Outer Carton
100M/easy pull box
500m/wooden reel/box

Other Packings according to customers'demand~

Contact Informations:

Mob:+86 15068725011
Tel:+86 571 61107876 Fax:+86 571 61107877

We are here waiting for you~

Linan Chuangxiang Cable Co., Ltd has high quality products, preferential prices of communication wires and cables, and high quality customer service. We will still insist on the enterprise sprit of "concentration, profession, integrity, and practicability", the operation philosophy of "focusing on one thing, making it stronger and producing one cable wholeheartedllu"and the humanity idea of "being kind to staffs and customers". We look forward to move forward with old and new customers work together in glory.

Our company supplies different kinds of Cables with high quality and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the cables with good quality at the reasonable price.

Our main products are LAN cable and coaxial cable. Every year, we will attend three or four exhibitions in the whole world to extend our cable business. Now, our main market is Africa, , the Middle East, and also Asia. We look forward to have the customers alll over the world.

Waiting for your contact and visit.
