| Prod Model: |

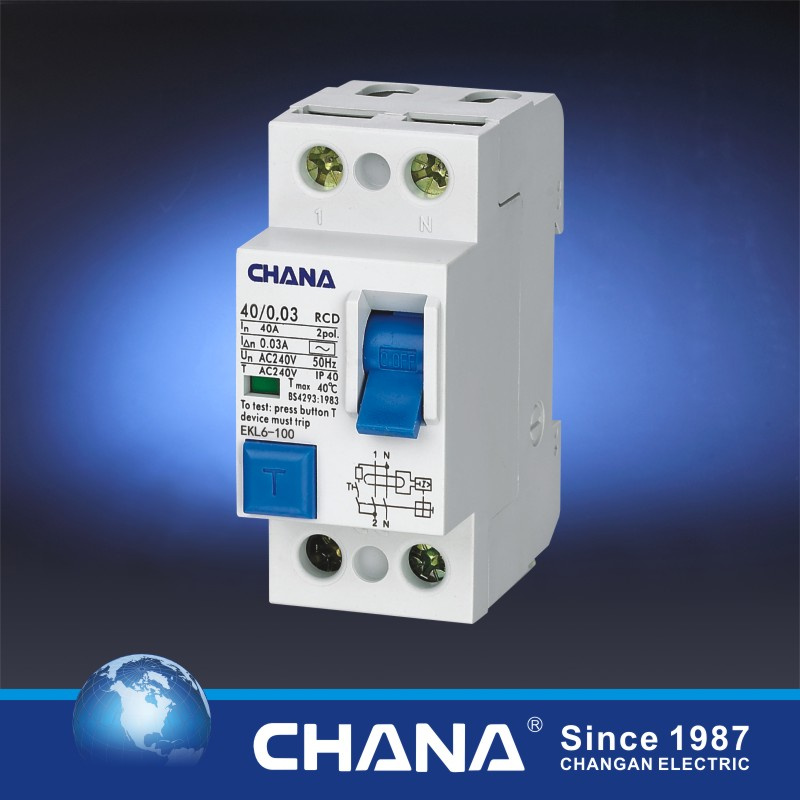

EKL6-100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Current In: |
25, 40, 50, 63A |
| Rated Sensitivity In: |
0.03, 0.1, 0.3A |
| Manufacturer: |
Original Manufacturer |
| Company Certification: |
ISO9001,SGS |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Manual Type |
| Speed: |
High-Speed Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Certification: |
TUV |
| Installation: |
DIN Rail |
| Structure: |
RCCB |
| Poles Number: |
2,4 |
| Function: |
Avoid The Shock Hazard and Fire Caused by Earth L |
Product Description
Free samples can be provided!!!
Product Description
Electrical Features
Type (wave form of the earth leakage sensed): AC, A
Rated current In: 25, 40, 50, 63A, 80A, 100A
Poles: 2P, 4P
Rated voltage Ue: 240/415V
Rated sensitivity In: 0.03, 0.1, 0.3A
Insulation voltage Ui: 500V
Rated residual making and breaking capacity
Im: 500A(In=25A/40A) 1000A(In=50A/63A/80A/100A)
Short-circuit current Inc=Ic: 6000A
SCPD fuse:
Break time under In: ≤ 0.1s
Rated frequency: 50/60Hz
Rated impulse withstand voltage (1.2/50)Uimp: 4000V
Dielectric TEST voltage at ind. Freq. For 1min: 2.5kV
Mechanical Features
Electrical life: 2, 000
Mechanical life: 2, 000
Fault current indicator: Yes
Protection degree: I P20
Ambient temperature (with daily average≤ 35º C): -5º C...+40º C
Storage temperation: -25º C...+70º C
Pollution degree: 2
Installation
Terminal connection type: Cable/U-type busbar/Pin-type busbar
Terminal size top/bottom for cable: 35mm2 18-3AWG
Terminal size top/bottom for busbar: 35mm2 18-3AWG
Tightening torque 2.5 N*m 18In-Ibs.
Mounting: On DIN rail EN 60715 (35mm) by means of fast clip device
Connection: From top and bottom
| RCCB EKL1-63 | | | | |
| In | Code | QTY/CTN |
| 0.03A | 0.1A | 0.3A |
| 2P AC |
| 25A | 1L61N25003 | 1L61N2501 | 1L61N2503 | 90 |
| 40A | 1L61N40003 | 1L61N4001 | 1L61N4003 | 90 |
| 50A | 1L61N50003 | 1L61N5001 | 1L61N5003 | 90 |
| 63A | 1L61N63003 | 1L61N6301 | 1L61N6303 | 90 |
| 4P AC |
| 25A | 1L63N25003 | 1L63N2501 | 1L63N2503 | 45 |
| 40A | 1L63N40003 | 1L63N4001 | 1L63N4003 | 45 |
| 50A | 1L63N50003 | 1L63N5001 | 1L63N5003 | 45 |
| 63A | 1L63N63003 | 1L63N6301 | 1L63N6303 | 45 |
| | | | | |
| 2P A |
| 25A | 1L61N25003A | 1L61N2501A | 1L61N2503A | 90 |
| 40A | 1L61N40003A | 1L61N4001A | 1L61N4003A | 90 |
| 50A | 1L61N50003A | 1L61N5001A | 1L61N5003A | 90 |
| 63A | 1L61N63003A | 1L61N6301A | 1L61N6303A | 90 |
| 4P A |
| 25A | 1L63N25003A | 1L63N2501A | 1L63N2503A | 45 |
| 40A | 1L63N40003A | 1L63N4001A | 1L63N4003A | 45 |
| 50A | 1L63N50003A | 1L63N5001A | 1L63N5003A | 45 |
| 63A | 1L63N63003A | 1L63N6301A | 1L63N6303A | 45 |
| 2P AC S |
| 25A | 1L61N25003S | 1L61N2501S | 1L61N2503S | 90 |
| 40A | 1L61N40003S | 1L61N4001S | 1L61N4003S | 90 |
| 50A | 1L61N50003S | 1L61N5001S | 1L61N5003S | 90 |
| 63A | 1L61N63003S | 1L61N6301S | 1L61N6303S | 90 |
| 4P AC S |
| 25A | 1L63N25003S | 1L63N2501S | 1L63N2503S | 45 |
| 40A | 1L63N40003S | 1L63N4001S | 1L63N4003S | 45 |
| 50A | 1L63N50003S | 1L63N5001S | 1L63N5003S | 45 |
| 63A | 1L63N63003S | 1L63N6301S | 1L63N6303S | 45 |
| 2P A S |
| 25A | 1L61N25003AS | 1L61N2501AS | 1L61N2503AS | 90 |
| 40A | 1L61N40003AS | 1L61N4001AS | 1L61N4003AS | 90 |
| 50A | 1L61N50003AS | 1L61N5001AS | 1L61N5003AS | 90 |
| 63A | 1L61N63003AS | 1L61N6301AS | 1L61N6303AS | 90 |
| 4P A S |
| 25A | 1L63N25003AS | 1L63N2501AS | 1L63N2503AS | 45 |
| 40A | 1L63N40003AS | 1L63N4001AS | 1L63N4003AS | 45 |
| 50A | 1L63N50003AS | 1L63N5001AS | 1L63N5003AS | 45 |
| 63A | 1L63N63003AS | 1L63N6301AS | 1L63N6303AS | 45 |
