Fiber Optics Rg59 Coaxial Cable

Name: Fiber Optics Rg59 Coaxial Cable
Brand: all-electronics-online.com
SKU: 794534295
Availability: InStock
Rating: 4.8 (27 reviews)

Price:	Negotiable/Meter
Min Order:	30000/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	rg59
Conductor:	Bc/CCS
Insulation:	Foam PE/Solid PE
First Shield:	Al Foil
Second Shield:	Al Alloy Braiding
Jacket:	PVC/PE
Jacket Color:	According to Customers
Test Report:	Provided
Power Cable:	Bc/CCA/Tc
Application:	Game Player
Color:	Black
Type:	Coaxial
Connector:	HDMI
Certification:	CCC
Species:	Coaxial Cable
Brand:	Cx-Cable

Product Description

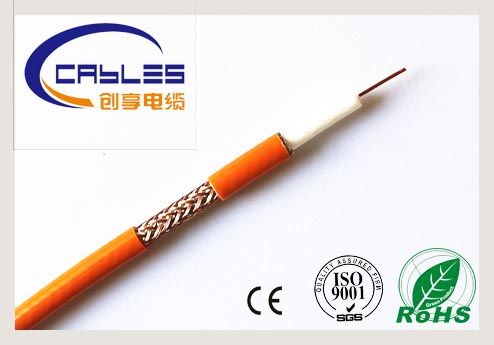

Fiber Optics RG59 coaxial cable
1.Construction

Product Description:

1) Center conductor:BC,TC,CCA,CCS

2) Al-foil:Non-bonded Al-foil, bonded Al-foil,double bonded Al-foil,and double non-bonded Al-foil are available

3) Braiding wire:Al,BC,,TC,CCA,CCS Available

4) Braiding wire diameter:0.10,0.11,0.12,0.13,0.14,0.15,0.16mm available

5) Braiding net:32,48,64,72,80,96,120,128,144 and more available

6) Braiding coverage:Between 30-97%

7) Jacket: PE/PVC

8) Power Cable:BC/CCA

2.Performance

Frequency MHz	dB/100 ft. (MAX.)	dB/100 meters (MAX.)
5 MHz	0.58 dB	2.65 dB
55 MHz	1.60 dB	5.25 dB
83 MHz	1.95 dB	6.40 dB
187 MHz	2.85 dB	9.35 dB
211 MHz	3.05 dB	10.00 dB
250 MHz	3.30 dB	10.82 dB
300 MHz	3.55 dB	11.64 dB
350 MHz	3.85 dB	12.63 dB
400 MHz	4.15 dB	13.61 dB
450 MHz	4.40 dB	14.43 dB
500 MHz	4.66 dB	15.29 dB
550 MHz	4.90 dB	16.08 dB
600 MHz	5.10 dB	16.73 dB
750 MHz	5.65 dB	18.54 dB
865 MHz	6.10 dB	20.01 dB
1000 MHz	6.55 dB	21.49 dB

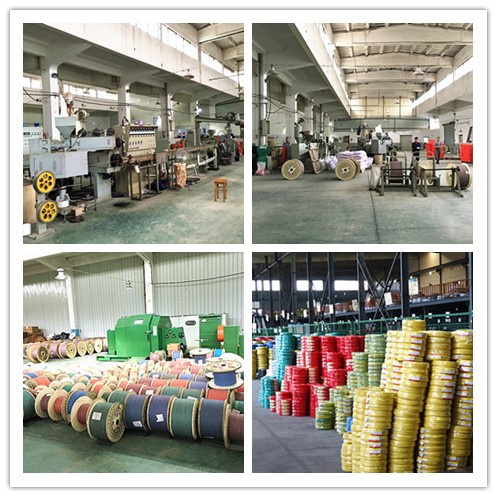

3.Work Shop:

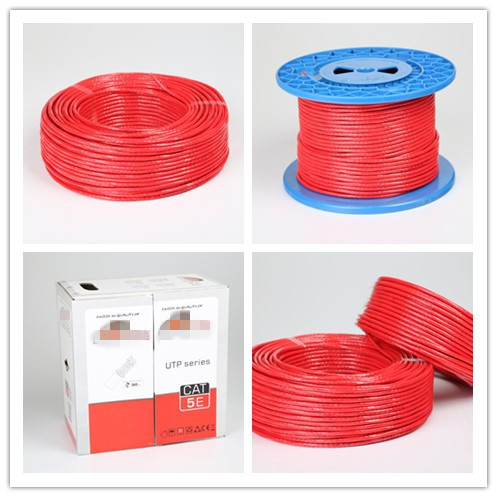

4.Packing Details:

Contact Informations:

Mob:+86 15068725011
Tel:+86 571 61107876 Fax:+86 571 61107877

We are here waiting for you~

Linan Chuangxiang Cable Co., Ltd has high quality products, preferential prices of communication wires and cables, and high quality customer service. We will still insist on the enterprise sprit of "concentration, profession, integrity, and practicability", the operation philosophy of "focusing on one thing, making it stronger and producing one cable wholeheartedllu"and the humanity idea of "being kind to staffs and customers". We look forward to move forward with old and new customers work together in glory.

Our company supplies different kinds of Cables with high quality and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the cables with good quality at the reasonable price.

Our main products are LAN cable and coaxial cable. Every year, we will attend three or four exhibitions in the whole world to extend our cable business. Now, our main market is Africa, , the Middle East, and also Asia. We look forward to have the customers alll over the world.

Waiting for your contact and visit.
