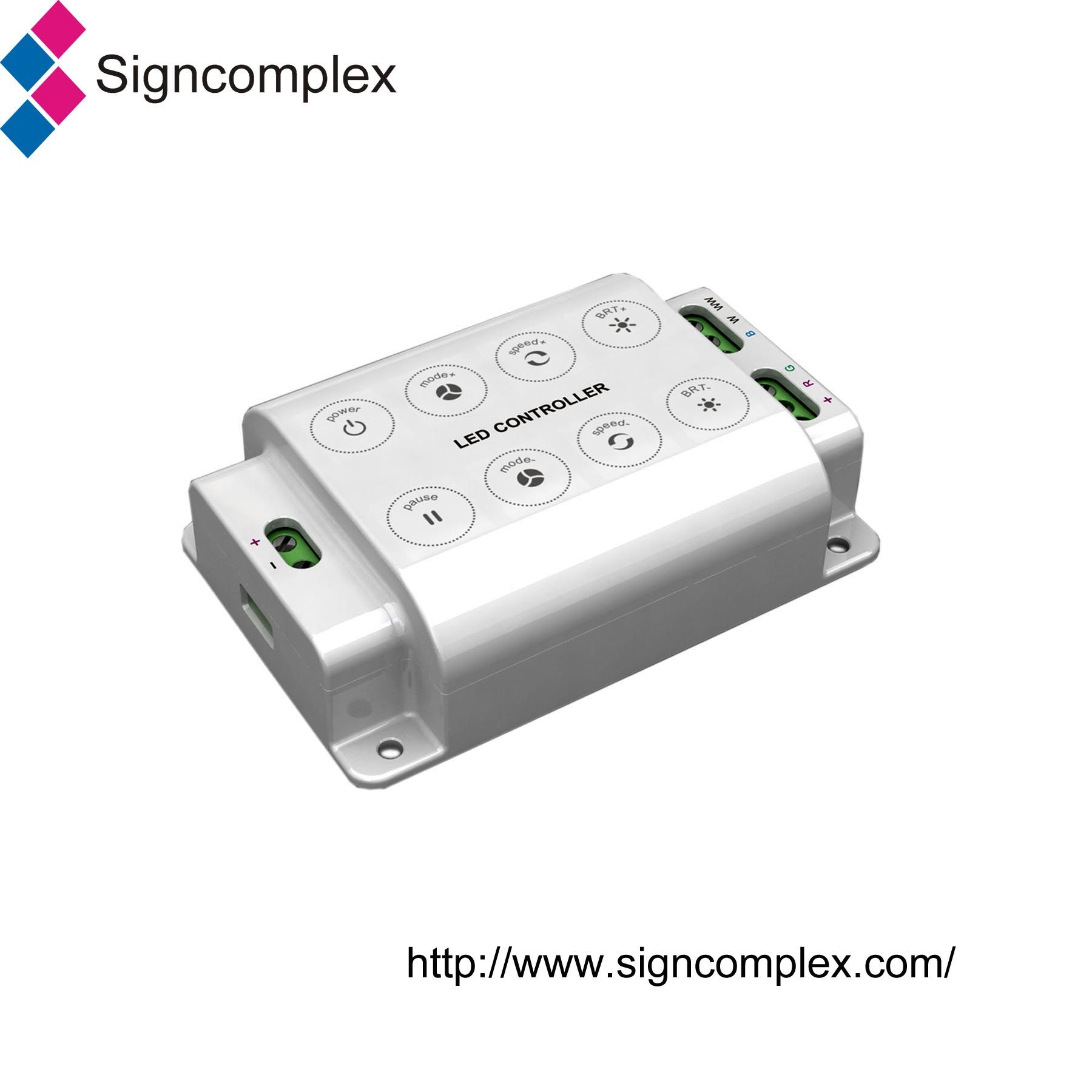

Four in One RGB LED Controller (LC-0RGB-D4-01)

Name: Four in One RGB LED Controller (LC-0RGB-D4-01)
Brand: all-electronics-online.com
SKU: 686829235
Availability: InStock
Rating: 4.7 (73 reviews)

Price:	US $ 20-26/Piece
Trade Terms:	FOB
Min Order:	10/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	LC-0RGB-D4-01
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Channel:	Five Channels of RGB/W/Ww.
Output Current:	4A for Each Channel.
Output Power:	240W(12V Input)/480W(24V Input).
Weight:	116kg
Item:	Four in One RGB LED Controller (LC-0RGB-D4-01)
Keyword:	RGB LED Controller
Control Distance:	> 40m
Application:	LED Products
Signal Transmission:	IR Remote Control
Type:	Button
Certification:	CE
Voltage:	DC 12V or DC 24V

Product Description

Four in One RGB LED Controller:
Features
Compatible With All Common RGB S Trips And Low Voltage RGB Lamps
Built-In 86 Modes
Unique Touch Technology, User-Friendly Operation And Easy To Use
Automatically Adapt To LED Light Which Works At DC 12V Or DC 24V
Hardware PWM Dimmer Without Any Flashes
High-Power MOS Driver, The Whole Current Of The RGB/W/WW Five Channels Reaches To 20A.
Can Fit For Our WC12

Four in One RGB LED Controller:
Function Descriptions
1.86 color modes
2. Adjust color under the static mode
3. Jump, fade in and out(with pause function)
4. Switch with three function modes: The first one control 5 channels Output (R, G, B, W, WW) for four or five colors LED products. The second one can control 3 channels output(R, G, B), for three colors LED product, and the third one can control 2 channels output(W, WW), for single color LED product or that with two colors. (note: For color LED product would be RGB+W or RGB+WW, five colors LED product would be RGB+W+WW, and three colors LED products would be RGB).

Technical Parameters		Packing List
Model Number	LC-0RGB-D4-01	(1) Controller
Input voltage	DC 12V or DC 24V	(2) User Manual
Output power(MAX)	240W(12V input)/480W(24V input)	(3) 8 key remote pad
Output current(MAX)	4A/channel
Output channel	RGB/W/WW 5 channels
Control distance	> 40m
Weight	116g
