Gl (GT) Copper and Aluminium Connecting Terminal, Copper and Aluminium Cable Lug

Name: Gl (GT) Copper and Aluminium Connecting Terminal, Copper and Aluminium Cable Lug
Brand: all-electronics-online.com
SKU: 741763225
Availability: InStock
Rating: 4.5 (100 reviews)

Price:	US $ 0.1-1/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	GL (GT)
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Socket Terminals
Material:	Copper and Aluminium
Certification:	Ce

Product Description

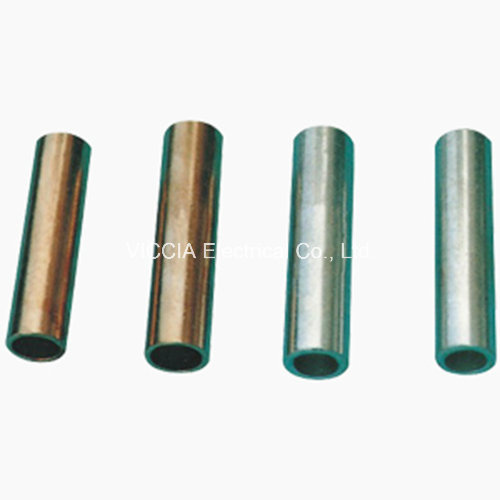

Detailed Information of SC Series Cable Lug

The product is suitable for the connection of copper conductors(section1.5-1000mm2)in power cable with electronic equipment they are made of higher 99.9 percent copper tube T2 and coated with tin. Working temperature -55 º C to 150º C

Type	Dimensions(mm)
Type	D	d	L	L1
GL-16	10	5.5	70	30
GL-25	12	7	75	32
GL-35	14	8.5	85	37
GL-50	16	9.5	95	42
GL-70	18	11.5	105	47
GL-95	21	13.5	110	50
GL-120	23	15	115	52
GL-150	25	16.5	120	55
GL-185	27	18.5	125	57
GL-240	30	21	130	60
GL-300	34	23	140	64
GL-400	38	27	160	70

Type	Dimensions(mm)
Type	D	d	L	L1
GT-16	10	6	65	30
GT-25	11	7	70	32
GT-35	12	8.5	75	34
GT-50	14	9.5	80	35
GT-70	16	11.5	90	42
GT-95	18	13.5	95	43
GT-120	20	15	100	47
GT-150	22	16.5	105	49
GT-185	25	18.5	110	50
GT-240	27	21	120	55
GT-300	32	23	130	60
GT-400	34	26.5	140	65
GT-500	38	29	155	70

VICCIA Electrical Co., Ltd., a member of Fuzhou Light Industry Co., Ltd, is located in Sanming City of Fujian Province. We specialized in manufacturing and supplying multiple products, particularly in the field of electrical appliance, such as Fiberglass ladder and Aluminum ladder, high and low voltage product, power fittings and so on. Started with the business of international trading and sales agent of domestic supplier and overseas buyer, we now have skilled and experienced engineer team in design and manufacturing, as well as trained talents in business and management which enables us to respond effectively to the demands of market and our customers at all times.

The slogan of VICCIA is to provide the highest quality services to each customer, and to provide products to each customer with reasonable price and good quality. At the same time, we can develop and manufacture gratifying products in accordance with customers' certain requirements.

Put your trust in VICCIA, let us work together and achieve more.
