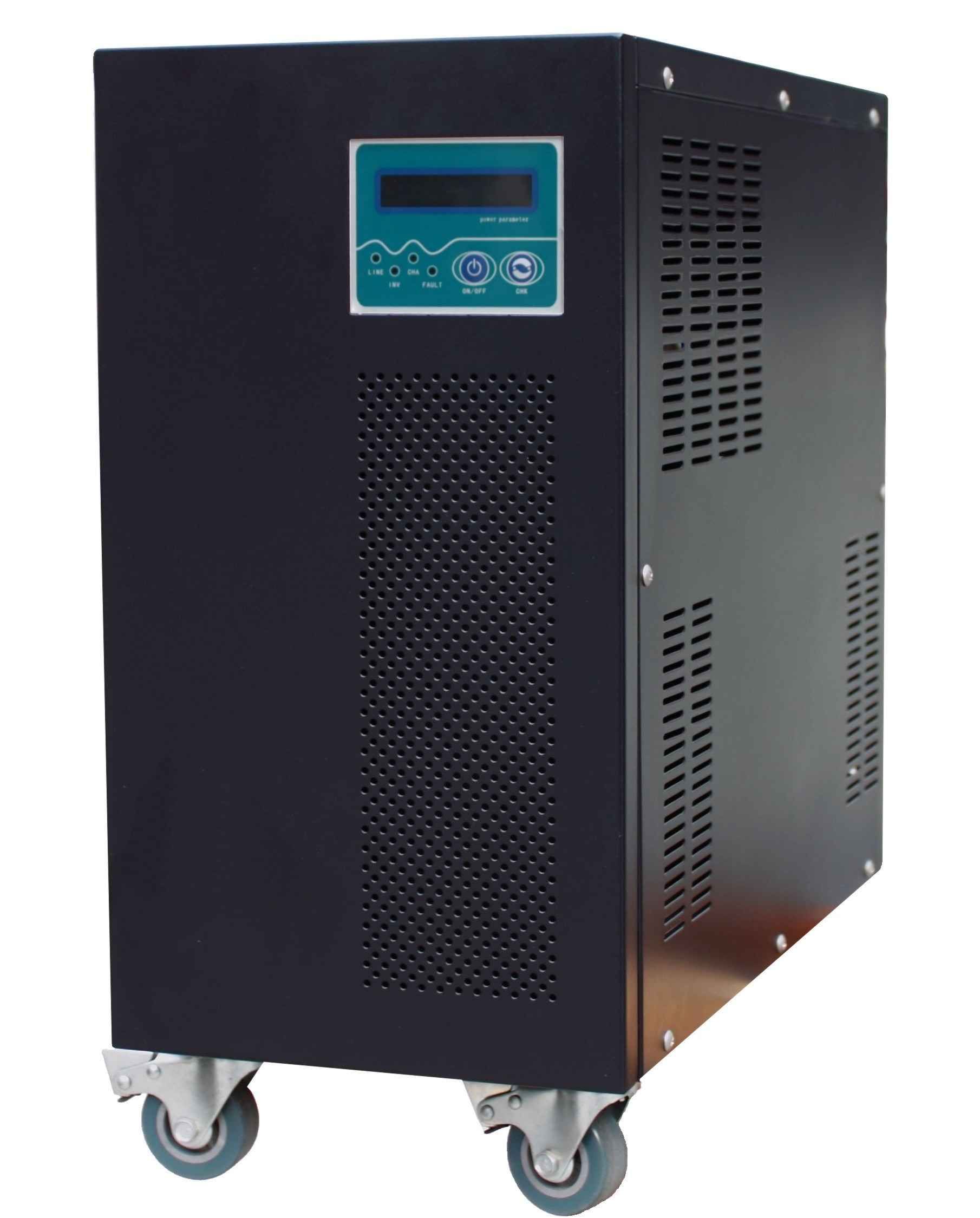

Grid Connected (Grid Tie) Inverter for Wind Turbine (BF5K)

Name: Grid Connected (Grid Tie) Inverter for Wind Turbine (BF5K)
Brand: all-electronics-online.com
SKU: 696759255
Availability: InStock
Rating: 4.4 (95 reviews)

Price:	US $ 1450-1650/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	BF5K
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
MPPT Range:	46-75vdc or 82-128vdc
Max-Power-of-Solar-Array(Kw):	5.5
Maximum Input Current Of Array:	20-100A
Maximum-Open-Circuit-Voltage-of Array:	450vdc
Maximum Efficiency:	94%
MPPT Intensity:	99%
Ripple Of DC Voltage:	Vpp<10 %
Allowed Voltage Range Of Grid:	90V-120V
Allowed Frequency Range Of Grid:	50Hz± 4.5/60Hz± 4.5
Wave Form:	Thd<3 %

Product Description

Grid connected inverter

Why choose TANFON solar products?

TANFON has sold the system to Nigeria, colombia ,Burkina faso,Egypt,Bolivia,Kenya,Ghana,south africa,Argentina ,philippines,congo , etc.almost 85% of africa countries !
With a professional installation team, Have went to Egypt, chad,Nigeria,Ghana,Doha,pakistan for installation
Already started some inverter factories in some countries.so there is no problem in after sale service. And we are still looking for local factories in other countries, to unfolding depth of cooperation
We insist on using good quality raw material whenever and wherever.
With customer's' praise as an assurance,Tanfon is a guaranteed brand.
Our company's philosophy is: one-stop solar energy service platfo

Our competitive advantage:
1. Use copper transformer, can load pump, lift and industrial load;
2. LCD display;

Feature:
(1)Digital DSP Control, Isolating by transformer, LCD display
(2)Protection: Input power, output power; Input voltage, output voltage, input current, output current; Frequency, temperature and so on.
(3)Assembled by IPM of Mitsubishi made in Japan
(4)Have perfect protect function, the highest dependability of the system.
(5)MPPT control, duly track of maximum power output of PV module
(6)Pure sine wave output, auto in-phase grid-connected, fewer harmonic wave, no disturbance or impact on grid
(7)electromagnetic compatibility: EN50081, part1 EN50082, part1
(8)Grid disturbance: EN61000-3-2
(9)Grid text: DIN VDE 126

Model	BF300		BF500		BF1K		BF2K		BF3K		BF5KW	BF10K		BF20K		BF50K
Rated Power(W)	300		500		1000		2000		3000		5000	10000		20000		50000
MPPTRange(VDC)	Vpv( 21-36VDC) or (46-75VDC)						Vpv (46-75VDC) or (82-128VDC)					Vpv(300-500V DC)
Maximum-Power-Of- Solar-Module-Array(KWp)	0.36		0.6		1.2		2.2		3.4		5.5	12		24		56
Maximum Input Current Of Array	10-22A						20-100A					60-137.5A
Maximum-Open-Circuit-Voltage-Of Array	450VDC						450VDC					600VDC
Maximum Efficiency	94%											98%
MPPT Intensity	99%
Ripple Of DC Voltage	VPP< 10 %
Allowed Voltage Range Of Grid	90V-120V or 160-280VAC						90V-120V or 160-280VAC					380-415V AC
Allowed Frequency Range Of Grid	50HZ± 4.5/60HZ± 4.5
Wave Form	THD< 3 %
Loss At Night	< 0.5W
Power Coefficient	> 0.95											> 0.99
Maximum(KW)	0.33		0.55		1.1		2.2		3.3		5.4	12		24		56
Protective Functions	Protection Against Over load, Short-Circuit, Over Heat, Anti-isolated Island Efficiency, Polarity Joint-Reversed
Insulated Strength	2500VAC, 1 Minute
Environment Temperature	-25clesuis degree~+55clesuis degree
Environment Humidity	0-95%, Non Condensable
Protective Class	IP20 or IP 65(optional)
Machine(mm)	44095350					500450207				473230490					8006002060
Packingsize(mm)	540190440					550300590				590350540					8206352100
N. W(KG)	10	13.4		19		35.5		43.5		59			85		675
G. W(KG)	13	15.6		21		38		46		68			112		700

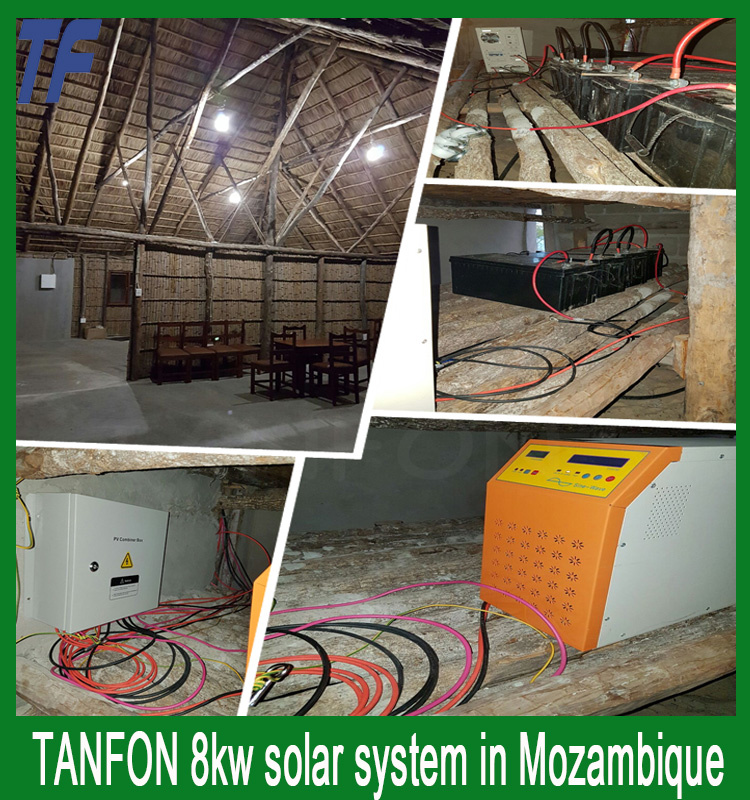

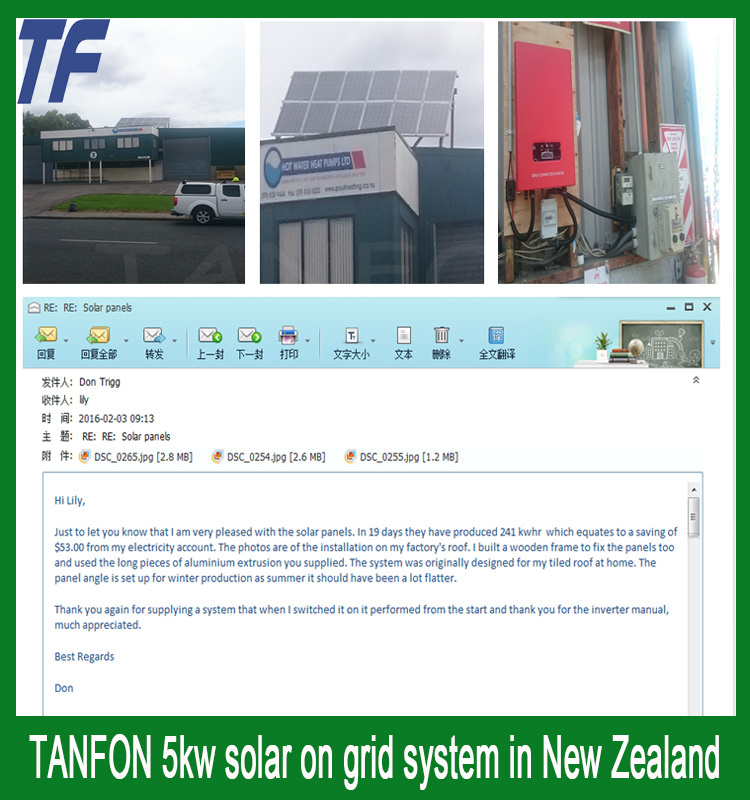

Project Pictures from Clients:

Quality is our culture.
With us, your business in safe, your money in safe!

Who we are?

Foshan Tanfon Energy Technology Co., Ltd is a professional manufacturer of green energy products with great commitment, contribution heart and responsibility.

What we do?

We are specialized in the R&D, manufacture and sale of the high quality environmental solar system, wind energy turbine, solar street light, solar pump and pure sine wave inverter, etc.

Now we are having the main series products as below:

1. Solar inverter

2. Solar controller(PWM and MPPT)

3. Portable solar system

4. Solar power system

5. Solar on grid system

6. Solar refrigerator system

7. Wind power system

8. Wind &solar hybrid system

9. Solar street light system

10. Solar air conditioner system

With these items as our weapons, we can fully supply the solutions for our clients' different needs.

We adhere to "quality first, users first" purpose, devoting ourselves everyday into setting up a suitable system for all of our clients.

How we do?

For the production, we have the professional production lines(Automatic series welding machine, EL test machine, Automatic frame machine, Special debug machine). Each step of production is under strict quality control. Our products are qualified with CE, RoHS, ISO certification.

For the service, we promise the quality. All products have the certain warranty and the new part would be shipped freely on time for service during the warranty. Also our company has started opening the factories in some countries, so it is very convenient to service you well at local.

Importantly, with a professional installation team, we have been to many countries(like Egypt, Bangladesh, Chad, Nigeria, Ghana, Doha, Pakistan) for installation service as well as win good feedback from the customers.

Specializing in installing projects from design, detailing, fabrication to erection, having continue cooperation with engineers, exclusive agents and the foreign business partners, we are now sincerely hoping to join hands with you to create a better future together at the principle of win-win cooperation.

Our Vision:

Tanfon create a solar kingdom for you

Our Mission:

Sincere, All-win, Unite, Aggressive.

Our Core Value:

100% Commitment 100% Contribution

100% Possibility 100% Time
