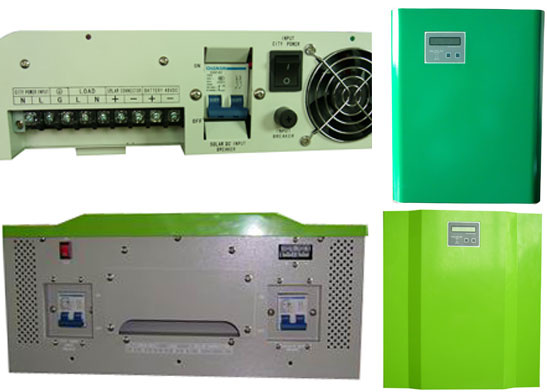

Grid Tie Inverter (2kw -4KW)

Name: Grid Tie Inverter (2kw -4KW)
Brand: all-electronics-online.com
SKU: 674329902
Availability: InStock
Rating: 4.3 (137 reviews)

Price:	US $ 350/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	BF
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Input Voltage:	24V/48V/96V
Output Voltage:	110V/220V/230V/240V
Output Frequency:	50Hz or 60 Hz
Materials:	Copper Transformer
Delivery Time:	1-3 Days for Normal Product
Service:	Ship The Free Parts
Working System:	Wind Turbine System and Solar System
MPPT Range(Vdc):	Vpv( 21-36vdc) or (46-75vdc)
Warranty:	2year
Maximum-Open-Circuit-Voltage-of Array:	450vdc
Phase:	Single
Type:	Inverters

Product Description

1)our inverter used copper transformer;
2)LCD display;
3)perfect function that can working get the power to the grid (on grid )also can take the load directly(off grid )

Foshan Tanfon Energy Technology Co., Ltd which a manufacturer for pure) sine wave inverter(on grid and off grid working at the same time.

Can take the load directly, if need video, any time can contact us ~

Grid tie inverter specification:

1)Digital DSP Control, Isolating by transformer. LCD display protection: Input power, output power; Input voltage, output voltage, input current, output current; Frequency, temperature and so on.

2)Assembled by IPM of Mitsubishi made in Japan

3)Have perfect protect function, the highest dependability of the system.

4)MPPT control, duly track of maximum power output of PV module

5)Pure sine wave output, auto in-phase grid-connected, fewer harmonic wave, no disturbance or impact on grid

6)Electromagnetic compatibility: EN50081, part1 EN50082, part1

7)Grid disturbance: EN61000-3-2

8)Grid text: DIN VDE 126

model	BF300		BF500		BF1K		BF2K			BF3K		BF5KW		BF10K	BF20K		BF50K
Rated Power(W)	300		500		1000		2000			3000		5000		10000	20000		50000
MPPTRange(VDC)	Vpv( 21-36VDC) or (46-75VDC)						Vpv (46-75VDC) or (82-128VDC)							Vpv(300-500V DC)
Maximum-Power-Of- Solar-Module-Array(KWp	0.36		0.6		1.2		2.2			3.4		5.5		12	24		56
Maximum Input Current Of Array	10-22A						20-100A							60-137.5A
Maximum-Open-Circuit-Voltage-Of Array	450VDC						450VDC							600VDC
Maximum Efficiency	94%													98%
MPPT Intensity	99%
Ripple Of DC Voltage	VPP< 10 %
Allowed Voltage Range Of Grid	90V-120V or 160-280VAC							90V-120V or 160-280VAC						380-415V AC
Allowed Frequency Range Of Grid	50HZ± 4.5/60HZ± 4.5
Wave Form	THD< 3 %
Loss At Night	< 0.5W
Power Coefficient	> 0.95													> 0.99
Maximum(kw)	0.33		0.55		1.1		2.2			3.3		5.4		12	24		56
Protective Functions	Protection Against Over load, Short-Circuit, Over Heat, Anti-isolated Island Effiency, Polarity Joint-Reversed
Insulated Strength	2500VAC, 1 Minute
Environment Temperature	-25-55
Environment Humidity	0-95% Non Condensable
Protective Class	IP20 or IP 65(optional)
Machine(mm)	44095350					500450207					473230490					8006002060
Packingsize(mm)	540190440					550300590					590350540					8206352100
N. W(KG)	10	13.4		19		35.5			43.5		59		85			386	675
G. W(KG)	13	15.6		21		38			46		68		112			415	700
