Gty Copper Connecting Terminal, Copper Cable Lug

Name: Gty Copper Connecting Terminal, Copper Cable Lug
Brand: all-electronics-online.com
SKU: 741762905
Availability: InStock
Rating: 4.6 (54 reviews)

Price:	US $ 0.1-1/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	GTY
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Socket Terminals
Material:	Copper
Application:	Transmission of Electrical Signals
Certification:	Ce

Product Description

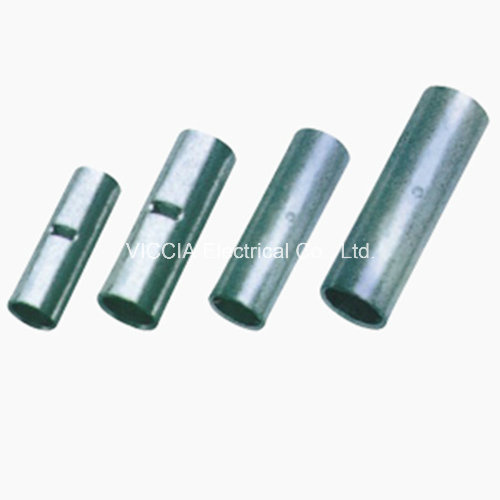

Detailed Information of SC Series Cable Lug

The product is suitable for the connection of copper conductors(section1.5-1000mm2)in power cable with electronic equipment they are made of higher 99.9 percent copper tube T2 and coated with tin. Working temperature -55 º C to 150º C

Type	Dimensions(mm)
Type	D	d	L
GTY-1.5	3.5	1.8	20
GTY-2.5	4	2.5	20
GTY-4	4.8	3.1	20
GTY-6	5.5	3.8	20
GTY-10	6.8	4.8	30
GTY-16	7.5	5.5	35
GTY-25	9	7	40
GTY-35	10.5	8.2	45
GTY-50	12.5	9.8	50
GTY-70	14.5	11.5	55
GTY-95	17.5	13.8	60
GTY-120	19.5	15.5	65
GTY-150	21	16.5	70
GTY-185	23.5	18.8	70
GTY-240	26.5	21	80
GTY-300	30	24	85
GTY-400	34	26.5	90
GTY-500	38	30	100
GTY-600	45	35	110
GTY-800	50	39	150
GTY-1000	56	44	170

VICCIA Electrical Co., Ltd., a member of Fuzhou Light Industry Co., Ltd, is located in Sanming City of Fujian Province. We specialized in manufacturing and supplying multiple products, particularly in the field of electrical appliance, such as Fiberglass ladder and Aluminum ladder, high and low voltage product, power fittings and so on. Started with the business of international trading and sales agent of domestic supplier and overseas buyer, we now have skilled and experienced engineer team in design and manufacturing, as well as trained talents in business and management which enables us to respond effectively to the demands of market and our customers at all times.

The slogan of VICCIA is to provide the highest quality services to each customer, and to provide products to each customer with reasonable price and good quality. At the same time, we can develop and manufacture gratifying products in accordance with customers' certain requirements.

Put your trust in VICCIA, let us work together and achieve more.
