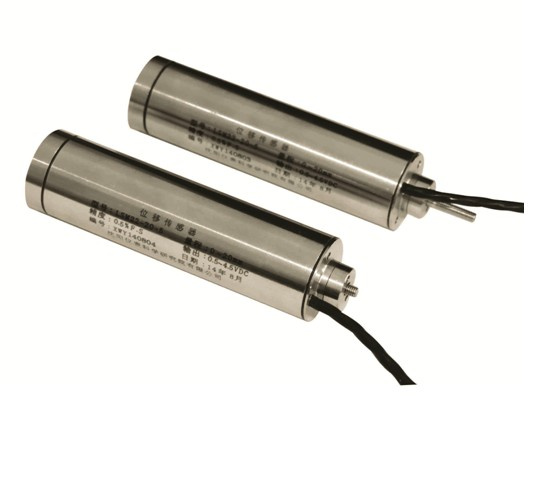

HB 3807 DC-DC Lvdt Displacement Transmitter
| Price: |
US $ 150-300/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
HB3807 |
| Type: |
DC-DC Linear Variable Differential Transformor Pri |
| Accuracy Grade: |
0.05% - 0.5% |
Product Description
HB3807 series displacement transmitters adopted DC-DC linear variable differential transformor principle, could transfer the linear mechanical displacement amount into electrical signal. This transmitter has the features of small size, light weight, high and low temperature resistance, temperature shock, vibration resistance, impact resistance, etc., it also has the characteristics of environmental test conditions such as salt spray resistance, steady state under heat and humidity, underwater immersion. Thay are widely applied in machinery manufacturing, mining engineering, scientific research, national defense and other fields.Specification| Range | 10-600mm(±5 - ±300 mm) |
| Accuracy | 0.05% - 0.5% |
| Power supply | 5-24VDC, ±5 - ±18VDC |
| Output | 4-20mADC, 1-5VDC, 1-8VDC |
| Rod connecting thread | M6 (resilience and non-resilience) |
| Dimension | Φ22mm, Φ38mm or customized |

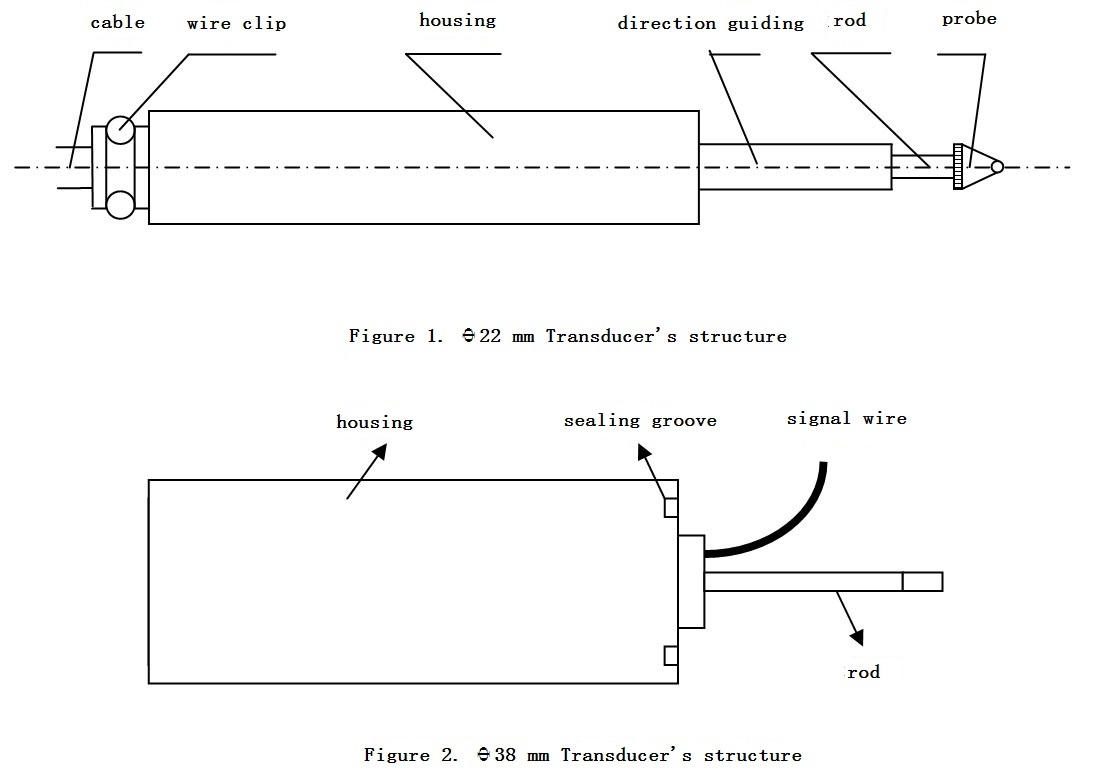

Dimension and Connection
Order Code | HB3807 | Displacement Transducer |
| | Code | Range(mm) | Dimension(mm) |
| | 5 | ±5 (0~10) | 190ХΦ22 |
| | 10A | ±10 (0~20) | 220ХΦ22 |
| | 10B | ±10 (0~20) | 123ХΦ38 |
| | 20 | ±20 (0~40) | 245ХΦ22 |
| | 30 | ±30 (0~60) | 255ХΦ22 |
| | 50 | ±50 (0~100) | 350ХΦ22 |
| | 100 | ±100 (0~200) | 445ХΦ22 |
| | 150 | ±150 (0~300) | 580ХΦ22 |
| | 200 | ±200 (0~400) | 580ХΦ22 |
| | 250 | ±250 (0~500) | 830ХΦ22 |
| | 300 | ±300 (0~600) | 840ХΦ22 |
| | Code | Linearity |
| | A | 0.05% |
| | B | 0.1% |
| | C | 0.2% |
| | D | 0.3% |
| | E | 0.5% |
| | Code | Power Supply |
| | 05 | 5V |
| | 12 | 12V |
| | 24 | 24V |
| | 12S | ±12V |
| | Code | Output Signal |
| | V1 | 0.5~4.5V |
| | V2 | 1~8V |
| | V3 | User define |
| | I | 4~20mA |
| | Code | Working Temperature |
| | T1 | -20~85ºC |
| | T2 | -50~125ºC |
| | Code | Resilience |
| | N | Non-resilience |
| | H | Resilience |
| | | | | | | | | | | | |
Order Code SampleInstroduction:HB3807-10A-E-05-V1-T2-N modle, range is 20mm, linearity is 0.5%, power supply is 5V, signal output is 0.5~4.5V, working temperature -20~85ºC, stainless steel housing, non-resilience model LVDT displacement transducer.*Note:The dimension, power voltage, output signal, anti-vibration, anti-corrosion, salt spray resistance, steady state under heat and humidity, underwater immersion for customized.
