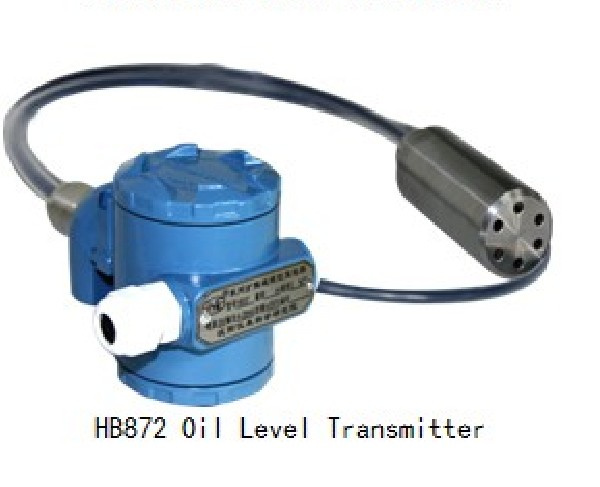

HB 872 Drop-in Type Oil Level Transmitter
| Price: |
US $ 16-350/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
Product Description
The transmitters adopted silicon diffusion sensor, ceramic piezoresistive sensor or ceramic capacitive sensor, by using piezoresistive effect and Wheatstone bridge principle and pressure change capacitive principle to achieve accurate measurement of pressure in certain depth. It has the advantages of high reliability and good stability.
The HB872 modle has full metal structure, suitable for measuring the oil level of open tank and floating roof tank.
HB872D is a derived type level transmitter that has the "Intrinsica safety" performance, could intall in the "O" zone, mainly using for the measurement of oil level in the oil tank of hydropower plant. The features of this meter are small measurement range with high stability, not affected by the change of liquid level. Specification| Range | 0-200m(see model and order code) |
| Output | 4-20mA(DC)or 0-10mA(DC) |
| Accuracy | ±0.1%FS, ±0.2%FS, ±0.5%FS |
| Load Capacity | 0-600Ω |
| Overload | 1.5 time of nominal range |
| Stability | less than the accuracy of transmitter within one year |
| Explosion-proof | ExiaII BT6 |
| Working Voltage | 24VDC |
| Medium Temperature | -20 - 60ºC to 0 - 200ºC |

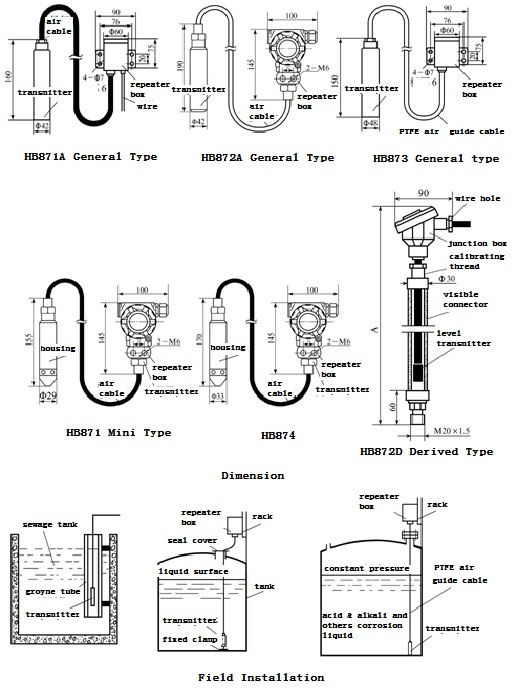

Dimension and Connction1. Dimension

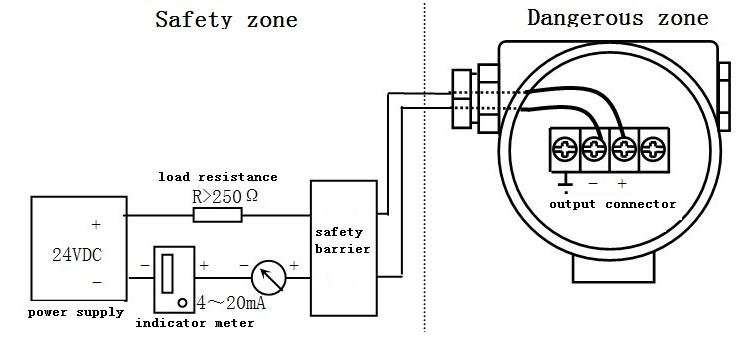

1. Connection (HB871, HB872, HB874)
Order Code| HB871 | Water level transmitter (option code:A,B) |
| HB872 | Oil level transmitter (option code:A,D) |
| HB873 | Corrosion resistant level transmitter |
| HB874 | Air gathering level transmitter (option code:A,E) |
| | Code | Type |
| | A | General type(for HB871,HB872,HB874 only) |
| | B | Mini type(for HB871 only) |
| | C | Corrosion resistant type(for HB873 only) |
| | D | Derived type(for HB872 only) |
| | E | High temperature(for HB874 only) |
| | Code | Range(1m=10KPa) |
| | 100 | 0~1m | Cable length:HB871 standard range + 2m, HB872/HB873 standard range + 1m,any special requirements please notified in advance. |
| | 200 | 0~2m |
| | 500 | 0~5m | Cable length:HB871 standard range + 5m, HB872/HB873 standard range + 1m,any special requirements please notified in advance. |
| | 101 | 0~10m |
| | 151 | 0~15m |
| | 201 | 0~20m |
| | 501 | 0~50m |
| | 102 | 0~100m |
| | 202 | 0~200m |
| | Code | Ouput |
| | S | Aggred signal ouput |
| | E | 2 wires 4~20mA(DC) |
| | D | 3 wires0~10mA(DC) |
| | Code | Indicate mode |
| | N | Without output indicator |
| | Z | With output indicator |
| | Code | Medium temperature |
| | T1 | -20~60ºC |
| | T4 | 0~80ºC |
| | T5 | 0~100ºC |
| | T7 | 0~200ºC(for HB874 only) |
| | Code | Mounting type |
| | F | Falange connecting |
| | X | With rack |
| | Y | Without rack |
| | | | | | | | | |
Order Code SampleHB871 A 500 E N T4 Y Full-filled type
HB871 A 500 Simple-filled type |
Introduction:HB871 water level transmitter, general type, measuring range is 0~5m, 4~20mA(DC)output, without output indicator, medium temperature is 0~80ºC, without rack.Note 1: the accuracy class will be ±0.5%F·S without special notice.Note 2: mnj represent the standard range code, their relative range is mn×10j(KPa), when code is 101, the relative range is 10×101=100(KPa).
