High Quality Network LAN CAT6 UTP Cable

Name: High Quality Network LAN CAT6 UTP Cable
Brand: all-electronics-online.com
SKU: 788470345
Availability: InStock
Rating: 4.5 (143 reviews)

Price:	US $ 20-45/Box
Min Order:	100/Box
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	CAT6
Size Of Conductor:	23AWG/24AWG
Numbers Of Conductor:	8
Insulation:	HDPE
Jacket:	PVC/PE
Color:	Customers'request
Outer Carton Size:	414148cm
Test:	Fluke Link
Application:	Submarine Cable
Conductor Material:	Copper
Cover Material:	PVC
Type:	Cat 6
Certification:	VDE
Model:	CAT6 UTP
Brand:	Cx-Cable

Product Description

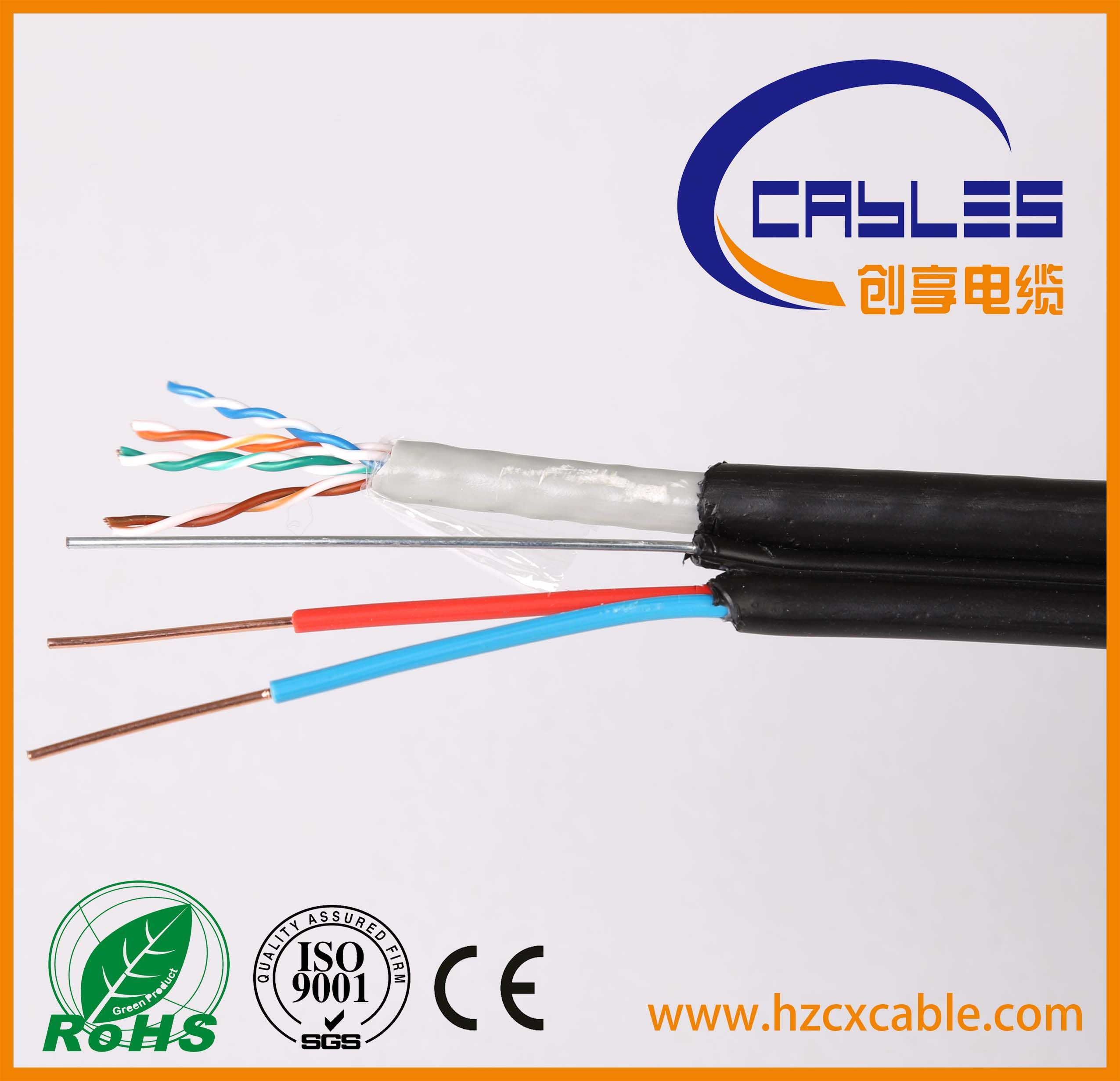

High Quality Network Lan CAT6 UTP CABLE

Construction:

1. Conductor: 0.57±0.01mm(23AWG) Bare copper
2. Insulation: 1.02±0.03mm HDPE
3. Cores/Pairs: 8/4
4. Sheath: 6.0±0.3mm PVC (PE, LSZH)
5. Messenger

Options: Jelly Compound, Jacket: UV, RoHS complied.

Electrical Performance:

1.0`250.0MHz Impedance(ohms)	100±15
1.0~250.0MHz Delay Skew(ns/100m)	≤45
20ºC Conductor D.C, Resistance(ohms/km)	≤65.8
Unbalance of Pair(%)	≤1.0

Technical Performance:

Frequency (MHz)	Attenuation (dB/100m)	Return loss (dB/100m)	Pair to Pair
			NEXT (dB/100m)	ELFEXT (dB/100m)
0.77 1 4 8 10 16 20 25 31.25 62.5 100 155 200 300 350	1.80 2.00 4.00 5.80 6.50 8.20 9.20 10.40 11.70 17.00 22.00 28.10 32.40 41.00 44.90	NA 20.00 23.00 24.50 25.00 25.00 25.00 24.30 23.60 21.50 20.10 18.80 18.00 16.80 16.30	70.00 68.30 59.30 54.80 53.30 50.30 48.80 47.30 45.90 41.40 38.30 35.50 33.80 32.30 30.20	69.00 66.80 54.70 48.70 46.80 42.90 40.70 38.80 36.90 30.80 26.80 22.90 20.70 17.20 15.90

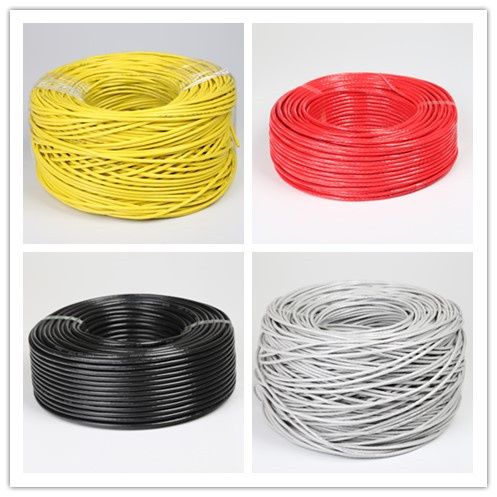

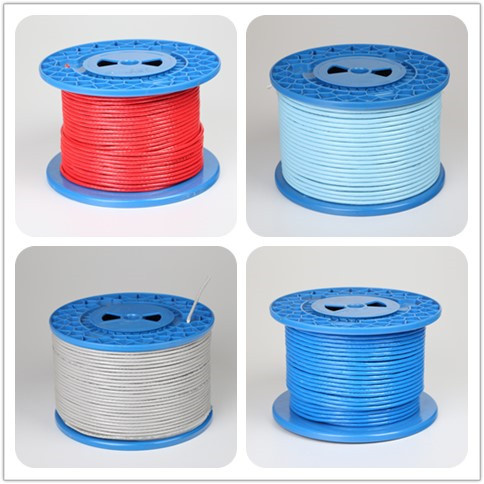

Packing Pictures:

Contact Informations:

Mob:+86 15068725011
Tel:+86 571 61107876 Fax:+86 571 61107877

We are here waiting for you~

Linan Chuangxiang Cable Co., Ltd has high quality products, preferential prices of communication wires and cables, and high quality customer service. We will still insist on the enterprise sprit of "concentration, profession, integrity, and practicability", the operation philosophy of "focusing on one thing, making it stronger and producing one cable wholeheartedllu"and the humanity idea of "being kind to staffs and customers". We look forward to move forward with old and new customers work together in glory.

Our company supplies different kinds of Cables with high quality and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the cables with good quality at the reasonable price.

Our main products are LAN cable and coaxial cable. Every year, we will attend three or four exhibitions in the whole world to extend our cable business. Now, our main market is Africa, , the Middle East, and also Asia. We look forward to have the customers alll over the world.

Waiting for your contact and visit.
