| Prod Model: |
HB-26S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
-40º C - 150º C temperature compensation
Adopts the MEMS technology and the advanced glass micro-melting technology
Strong interference resistance
Wide working temperature scope, and permanent stability
Provide several optional pressure connections and electric connections for customers.

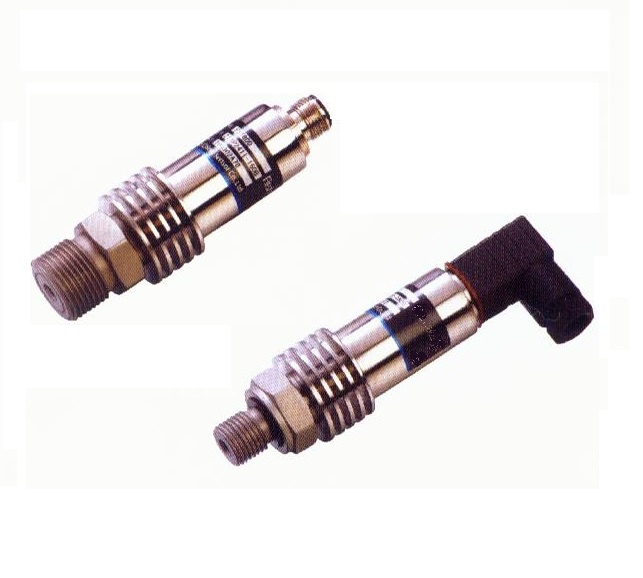

With -40º C - 150º C temperature compensation, the HB-26S high-temperature pressure transmitter adopts the MEMS technology and the advanced glass micro-melting technology to avoid influences on the product caused by the temperature, humidity, mechanical fatigue and medium, thus to improve its permanent stability in the industrial environment.
Its pressure chamber is made of imported 17-4pH stainless steel in an integrated way without welding seams or O-rings and free of leakage troubles. Digital circuits capable of strong RFI & EMI resistance and automatic temperature compensation are installed inside the transmitter.
| Pressure Range(bar) | 1 1.6 2.5 4 6 10 16 25 40 60 100 160 200 250 300 400 500 600 |
| Pressure Type | gauge pressure, absolute pressure sealing pressure; |
| Signal Output | 4 - 20mA | 0 - 5VDC | 0 - 10VDC |
| Signal Line Specification | 2 Lines | 3 Lines | 3 Lines |
| Power Voltage | 9 - 33VDC | 9 - 33VDC | 15 - 33VDC |
| Precision(non-linearity, hysteresis and repetition) | 0.25% span, 0.5% span |
| Zero Temperature Drift | 0.02% span /º C |
| Sensitivity Temperature Drift | 0.02% span /º C |
| Permanent Stability (1 Year) | 0.1% span |
| Response Frequency (-3dB) | 3.2KHZ |
| Temperature Compensation | -40 - 150º C |
| Working Temperature | -40 - 150º C |
| Storage Temperature | -40 - 125º C |
| Overload Pressure | 300% span |
| Destructive Pressure | 500% span |
| Mechanical Vibration | ± 20g |
| Impact (11ms) | 100g |
| Insulation Resistance | 100MΩ |
| Medium Compatibility | Various media compatible with the 316L stainless steel |
| Protection Grade | IP 65 (Cable Output) |
| Material | 17-4PH |
Shenyang Academy of Instrumentation Science Co., Ltd. Was derectly belonging to Ministry of Machinery Industry as a large comprehensive scientific research academyt, now is subject to China National Machinery Industry Corporation (SINOMACH). Name listed in national comprehensive technology ability 100 research academies & institutes, AAA class credit enterprise in Liaoning province. One of the national high-tech enterprises, focus on sensor and instrument' S research, develop and manufacture.
After 40 years' Development, we have accomplished 626 scientific research items and 159 awards in state, province, ministry and city, of which there are 20 National Invention Awards and Science and Technology Progress Awards, 56 various awards in province and ministry and 80 patents and know-hows.
The main products are including:
- Pressure sensor die/wafer
- Pressure sensor & transmitter
- Dew-point transmitter
- Wafer dicing machine
- Metal bellows(Hydroformed & Electroformed)
- Optical filter & optical reflector
- Current sensor & gauss meter
We are the only manufacturer for silicon piezoresistive pressure wafer/die, and the only national research center in China.
We are the only manufacturer for electroformed metal bellows in China.
We are the largest manufacture for optical filter in China
We has passed the GB/T19001-2000. Elastic components and transducers has passed GJB9001A-2001.
We gain class AAA in both enterprise credit and banking credit.
SAIS has established a nationwide marketing network, and the products are widely employed in such military and civil industries as spaceflight, aviation, navigation, petrochemistry, Metallurgy, Heat Supply, Thermoelectricity, Hydroelectricity, Coal, Light Industry, Architecture and Pharmacy. Some of the products are exported to overseas market.
We would like to creat HB name brand, collect time elite, introduce others' Merits. It is our responsibilities to constantly increase more advanced techniques to HB products. We also strictly abide by the marketing ideology of faithfulness, carry through quality policy, innovating in products by science and technology, guarantee quality by strict administration, reduce cost by elaborated accounting, reassure clients by gualified services. We seriously complete the sales management mode of Whole Course Credit Administration, repay our clients with profound enterprise cultures, outstanding management, strong core competition abilities and qualified credit.
