LAN Network UTP/FTP/SFTP Cat5e Patch Cable

Name: LAN Network UTP/FTP/SFTP Cat5e Patch Cable
Brand: all-electronics-online.com
SKU: 787691235
Availability: InStock
Rating: 4.5 (68 reviews)

Price:	US $ 0.3-5/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	CAT5E
Size Of Conductor:	24AWG/26AWG
Numbers Of Conductor:	8
Insulation:	HDPE
Jacket:	PVC/PE
Color:	Customers'request
Outer Carton Size:	414148cm
Test:	Fluke Link
Application:	Submarine Cable
Conductor Material:	Copper
Cover Material:	PVC
Type:	Cat 6
Certification:	CCC
Model:	Cat5e UTP
Brand:	Cx-Cable

Product Description

LAN Network UTP/FTP/SFTP Cat5e Patch Cable

Construction:

1. Conductor: 0.50±0.01mm(24AWG) Bare copper
2. Insulation: 0.90±0.03mm HDPE
3. Cores/Pairs: 8/4
4. Single/Double Sheath: 5.0±0.3mm PVC (PE, LSZH)

Options: Jelly Compound, Jacket: UV, RoHS

Conductor Resistance	Max. 9.38 ohm/100m
Resistance Unbalance	Max. 2%
Insulation Resistance	150 ohm/KM
Mutual Capacitance	Max. 5600pF/100m
Capacitance Unbalance	Max. 330pF/100m
Impedance	100+/-15 ohm
Spark Test	2000V
Velocity of Propagation	67%

echnical Performance:

	Attenuation	RL	Next	PS Next
(Mhz)	(dB/100M)	(dB)	(dB)	(dB/100m)
1MHz	2.0	20	65.3	63.5
4MHz	4.1	23	56.3	54.2
8MHz	5.8	24.5	52.4	50.5
10MHz	6.6	25	51.3	49.2
16MHz	8.2	25	49.3	47.4
20MHz	9.3	25	48.8	46.9
25MHz	10.4	24	45.3	43.4
31.25MHz	11.7	23	43.0	41.8
62.5MHz	17.0	21	39.2	37.2
100MHz	22.0	20	36.3	34.4

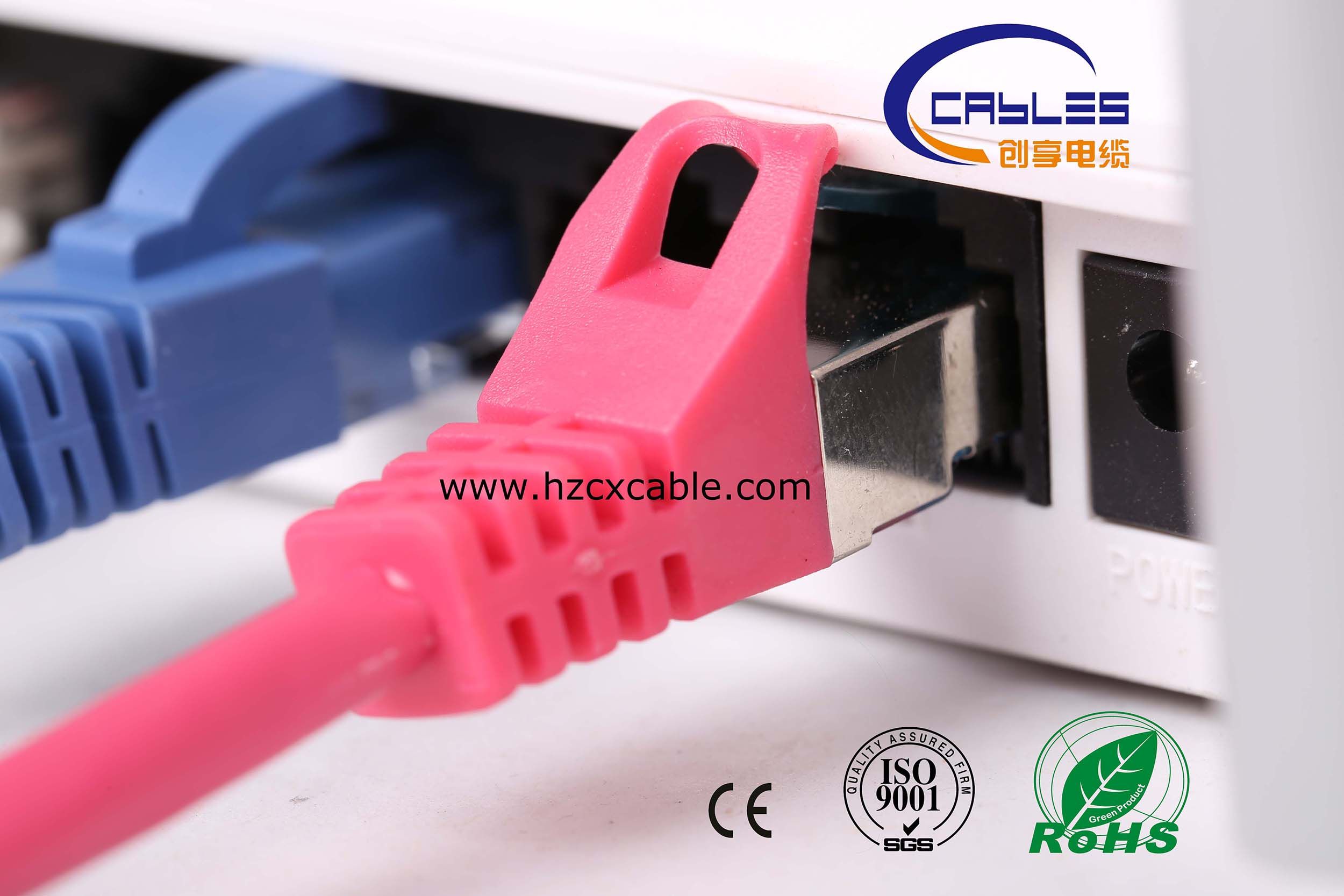

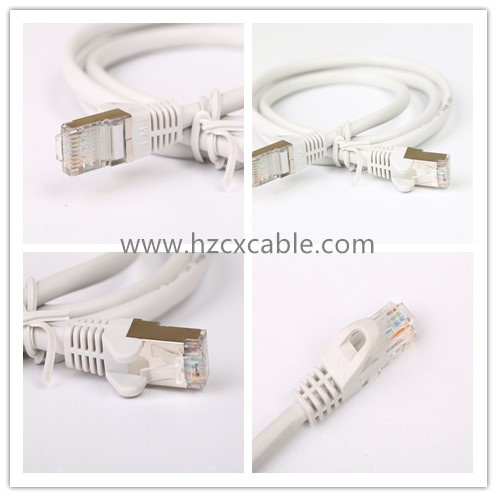

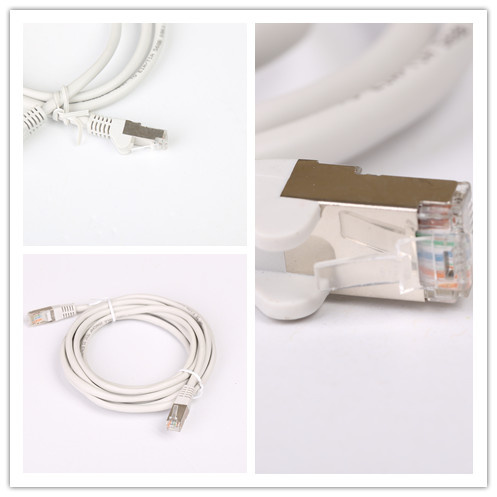

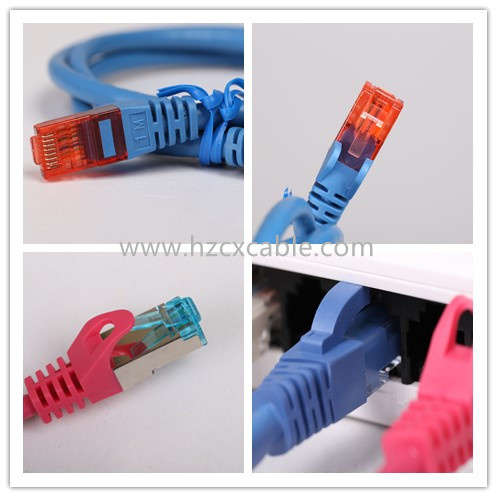

Cable Pictures:
