Optical Fiber Cable CAT6 with Good Quality

Name: Optical Fiber Cable CAT6 with Good Quality
Brand: all-electronics-online.com
SKU: 795539585
Availability: InStock
Rating: 4.6 (30 reviews)

Price:	Negotiable/Meter
Min Order:	30000/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	CAT6
Size Of Conductor:	23AWG/24AWG
Numbers Of Conductor:	8
Insulation:	HDPE
Jacket:	PVC/PE
Color:	Customers'request
Outer Carton Size:	414148cm
Test:	Fluke Link
Application:	LAN Cable
Conductor Material:	Copper
Cover Material:	PVC
Type:	Cat 6
Certification:	CCC
Model:	CAT6 UTP
Brand:	Cx-Cable

Product Description

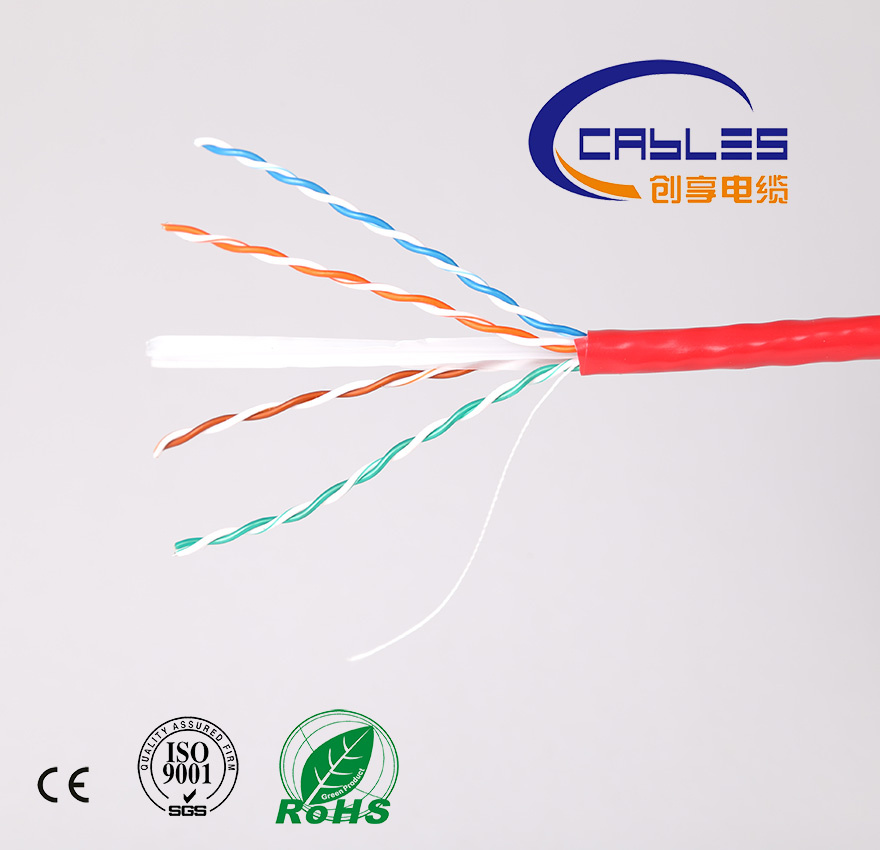

Optical Fiber Cable CAT6 with good quality
Construction:

1. Conductor: 0.57±0.01mm(23AWG) Bare copper
2. Insulation: 1.02±0.03mm HDPE
3. Cores/Pairs: 8/4
4. Sheath: 6.8±0.3mm PVC (PE, LSZH)
5. Double Jacket:PVC and PE

Options: Jelly Compound, Jacket: UV, RoHS complied.

Electrical Performance:

1.0`250.0MHz Impedance(ohms)	100±15
1.0~250.0MHz Delay Skew(ns/100m)	≤45
20ºC Conductor D.C, Resistance(ohms/km)	≤65.8
Unbalance of Pair(%)	≤1.0

Technical Performance:

Frequency (MHz)	Attenuation (dB/100m)	Return loss (dB/100m)	Pair to Pair
			NEXT (dB/100m)	ELFEXT (dB/100m)
0.77 1 4 8 10 16 20 25 31.25 62.5 100 155 200 300 350	1.80 2.00 4.00 5.80 6.50 8.20 9.20 10.40 11.70 17.00 22.00 28.10 32.40 41.00 44.90	NA 20.00 23.00 24.50 25.00 25.00 25.00 24.30 23.60 21.50 20.10 18.80 18.00 16.80 16.30	70.00 68.30 59.30 54.80 53.30 50.30 48.80 47.30 45.90 41.40 38.30 35.50 33.80 32.30 30.20	69.00 66.80 54.70 48.70 46.80 42.90 40.70 38.80 36.90 30.80 26.80 22.90 20.70 17.20 15.90

DC Resistance	94 Ω KM Max @20ºC
DC Resistance unbalance	3% Max
Characteristic Impedance	100±15Ω@1-100MHz
Capacitive Unbalance	3.4Pf/m Max.
LCL	45dB
Structural Return Loss	23dB/100m,1-20MHz,Min
Structural Return Loss	23-10Log(f/20)dB,f=20-100MHz
Propagation Velocity(%,min)	58-70%
Time Propagation Delay	570ns/100m,1MHz,Max
	540ns/100m,10MHz,Max
	530ns/100m,100MHz,Max
Distortion Of Time Propagation Delay	45ns/100m,1-100MHz,Max
Insulation Resistance	150MΩ,KM.Min.500Vdc
Dielectric Strength	1000Vac 1Min
Rated Voltage	220 Vac Max

Packing: 1000ft/pull box, 2boxes/out carton
Or as customers' requirment.
Elongation: Min. 300%
Temperature Range: -20 up to +75C
Conductor Resistance: Max. 9.38 ohm/100m
Resistance Unbalance: Max. 2%
Insulation Resistance: Max. 150 ohm/Km
Mutual Capacitance: Max. 5600pF/100m
Capacitance Unbalance: Max. 330pF/100m
Impedance: 100+/-15
Spark Test: 2000V
Velocity of propagation: 67%

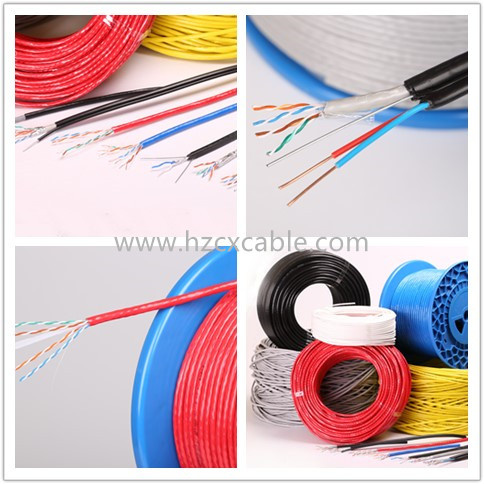

Cable Pictures:

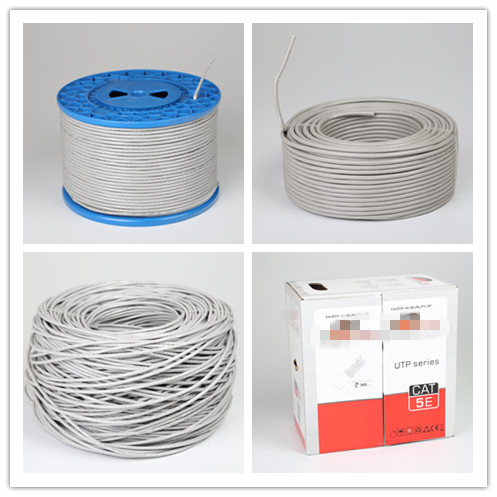

Packing Pictures:
