Shantou Jielian Tech Co.,Ltd >> Original Taiwan Fotek Ql-05n Proximity Switch

Original Taiwan Fotek Ql-05n Proximity Switch

Original Taiwan Fotek Ql-05n Proximity Switch
Price: US $ 5.5-6.1/Piece
Min Order: 10/Piece
Pay Type: T/T,Western Union,Paypal
Prod Model: QL-05N
Operating Voltage: 10~30VDC
Wire Length: 2m

Product Description

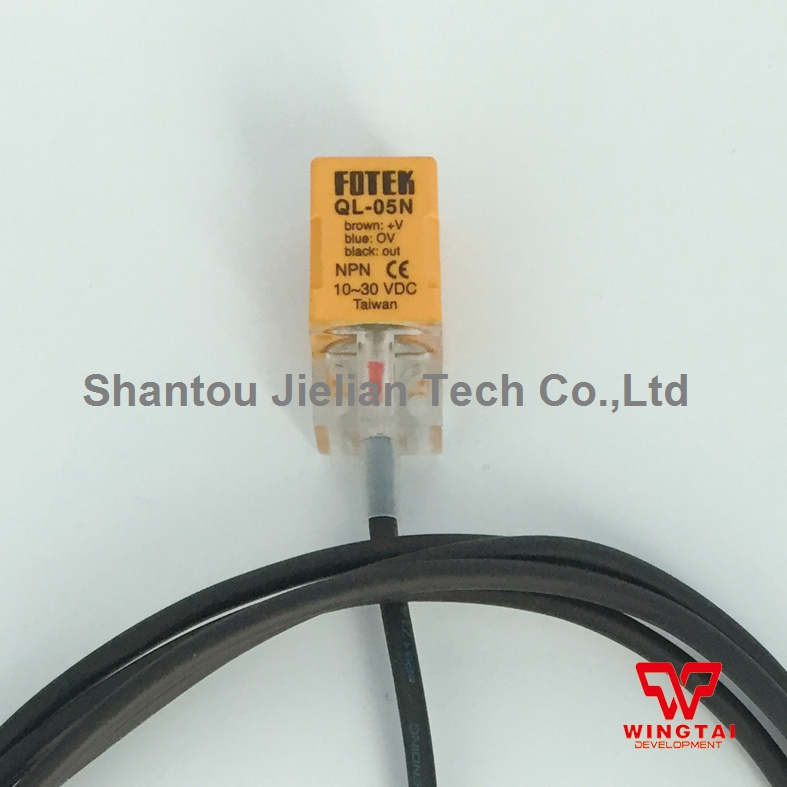

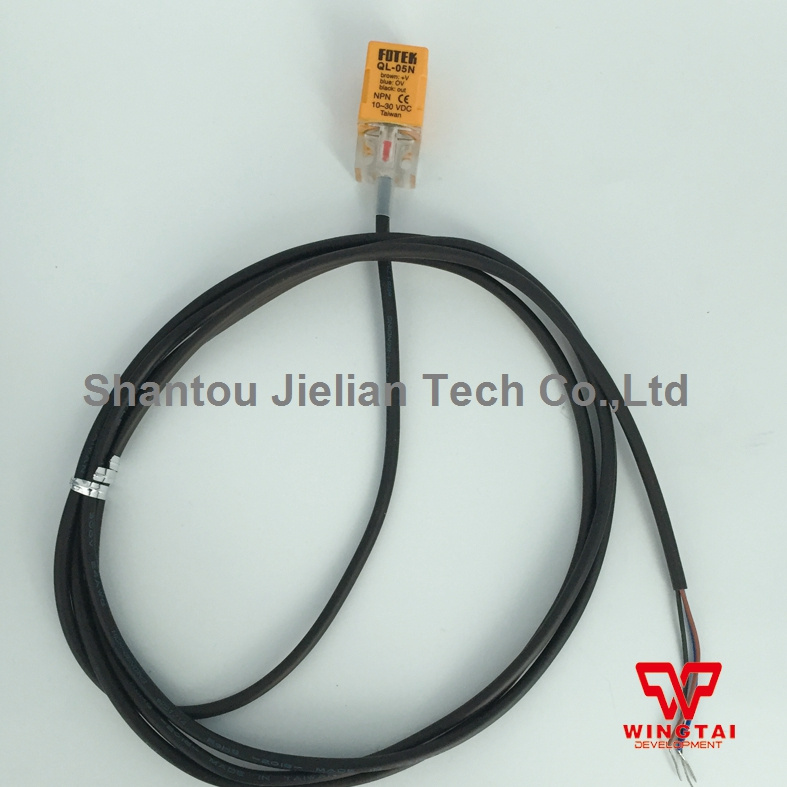

Original Taiwan Fotek QL-05N Proximity Switch



Brand:Fotek

 Model:QL-05N

 Place of original: Taiwan

 Product name:Proximity Switch

 Wire length:2m

Detection distance:5m

Detected object:Copper,iron,aluminum,gold

 Output voltage:10-30VDC

 Response frequency:800Hz

 Material:ABS

 Size:17*17*35mm



Technical parameter:

Specification

DC Type

Operating Voltage

10~30VDC

Power Rippler

<20% of Pesk to Peak

Output Current

150mA max.

Current Consumption

<10mA

Residual Voltage

<0.1V

Leakage Current

<0.8mA

Hysteresis

<10% of Sensing Distance

Thermal Drift

<10μ m/C

Voltage Drift

<1μ m/V

Protection Circuit

Short Circuit&                 Polarity Reversed Protection

Operating Temp./Hum.

-20°C~+80°C;35%~95%RH

Protection Class

IP-67

Wiring Method

3 Cores/4.2φ*2m

Color of Sensing Face

NPN:Red;PNP:Green



Advantage:

1.DC type with short circuit protection and polarity reversed protection.

2.circumstance.

3.All models with operating LED,easy to adjusted.
