Shandong New Luxing Cable Co., Ltd. >> Outdoor Power Cable 3 Core Service Drop 6AWG ABC Cable

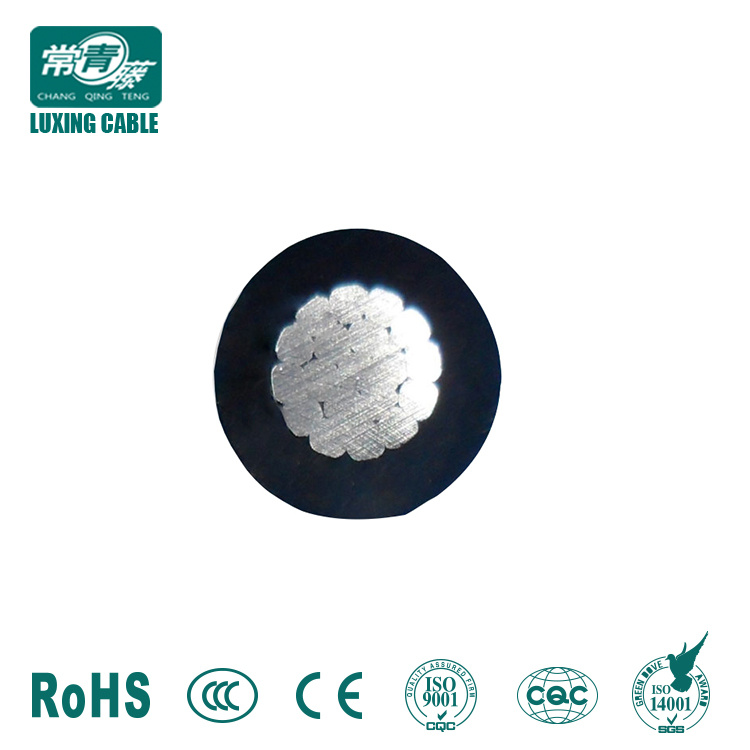

Outdoor Power Cable 3 Core Service Drop 6AWG ABC Cable

Outdoor Power Cable 3 Core Service Drop 6AWG ABC Cable
Price: US $ 0.1-1/Meter
Min Order: 2000/Meter
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: outdoor power cable 6awg abc cable
Product Name: Outdoor Power Cable 6AWG ABC Cable
Rated Voltage: 0.6/1 Kv
Conductor: Aluminum
Insulation: XLPE
Usage: Overhead
Origine: Shandong , China
Certificates: ISO Ce CCC RoHS
Free Sample: Yes
Packaging: Wooden Drum Ateel Wooden Drum
Shipping: 3-10 Working Days
Application: Overhead
Voltage: Low and Medium Voltage Cable
Current: DC & AC
Insulation Material: XLPE
Certification: GB/T
Sheath Material: None
Wire Core Material: Bare Coper
Model: ABC Cable ( Aerial Bundled Cable )
Brand: Chang Qing Teng

Product Description

Shandong New Luxing Cable Co.ltd

Workshop:  we are factory.

Good team: we offer you compective price with best service.

Welcome to visit our factory !

The overhead insulated ABC cable have been widely used in the world with the advantages of the excellent electric properties,Strong ability to resist short circuit,long service life,light weight,without the limit of fall,easy to install,operate and maintain,etc.

The product of Outdoor power cable 3 core service drop 6awg abc cable primarily used for overhead service applications such as street lighting ,outdoor lighting,and temporary service for construction,  Especially suitable for the city streets and greening areas near the building of the power supply and overhead lines,and suit for the operation and management requiements of the rural areas, and the densely populated cities and towns.

Application

Covered line wire

Covered line wire is used primarily for overhead secondary distribution lines.It is not an electrically insulated conductor and is treated as bare conductor when installed.

Duplex service drop

To supply 120 volt aerial service for temporary service at construction sites,outdoorr or street lighting.For service at 600 volts or lower ar a conductor temperature of 75 °Cmaximum.

Triplex service drop

To supply power from the utility's lines to the consumer's weatherhead.For service at 600 volts or less (pahse to phase) at a conductor temperature of 75°Cmaximum for polyethylene insulation or 90°C maximum for crosslinked insulation.

Quadruplex service drop

Used to supply 3 phase power,usually from a pole-mounted transformer,to the user's service head where connection to the service entrance cable is made.To be used at voltage of 600 volts or less phase to phase and at conductor temperature no to exceed 75°C for polyethylene insulated conductor or 90°C for crosslinked polyethylene insulated conductors.

Specifications of Triplex Service Drop

code

word

AWG or kcmil

Bare Neutral MessengerPhase Conductor

Allowable

Ampacities(A)

ACSRAAC

Insul.

Thick.

Mm

XLPEPE
Number

Number

Dia.

Mm

Number
Paludina2*6AWG+1*6AWG161.6811.148570
Voluta2*6AWG+1*6AWG161.6871.148570
Whelk2*4AWG+1*4AWG162.1211.1411590
Periwinkle2*4AWG+1*4AWG162.1271.1411590
Conch2*2AWG+1*2AWG162.6771.14150120
Neritina2*1/0AWG+1*1/0AWG163.3771.52205160
Cenia2*1/0AWG+1*1/0AWG163.37191.52205160
Runcina2*2/0AWG+1*2/0AWG163.7871.52235185
Triton2*2/0AWG+1*2/0AWG163.78191.52235185
Cherrystone2*3/0AWG+1*3/0AWG164.2571.52250200
Mursia2*3/0AWG+1*3/0AWG164.25191.52250200
Razor2*4/0AWG+1*4/0AWG164.7771.52315245
ZUZARA2*4/0AWG+1*4/0AWG164.77191.52315245

We mainly produce

300/500V 450/750V electrical wire AAC conductor
600/1000V PVC insulated cableAAAC conductor
600/1000V XLPE insulated cableACSR conductor
1.8/3KV to 26/35KV power cable OPGW
Armored underground cableABC cable
Control cable and instrumentation cables Rubber cable


Company Information

Workshop:  we are factory with 19 years experience .

We are the factory

We can provide competitive price and spot supply

We offer door-to-door service

We supply cables for engineering project and bidding project





Type Test Report

FAQ

Why choose us ?

1.19 years manufacturing experience

2.Professional international trade team

3.Delivery on time

4.Factory low price and high quality based on advanced technology and high work efficiency



Contact Information




1) About Luxing Cable Factory:

-Shandong New Luxing Cable Co., Ltd established in the year of 1999.

-The headquarter is located in Jinan City, the capital of Shandong province, China.

-Registered capital of USD16.5 million, Legal representative Wang Xiuzhen.

-Luxing Cable Factory is located in Linyi Economic Development ZoneCovering an area of more than 60 acres.

-Shandong New Luxing Cable Co., Ltd has more than 150 employees, which college degree more than 50 people.

2)Why Choose Luxing Cable Factory?

-Luxing cable, the designated supplier of China's national grid construction.

-We provid high-quality cables for our clients for more than 18 years.

-The professional, safe and reliable of Luxing factory gained great trust and praise from our customers.

-Serve you any time.

3)The Product of Luxing Cable Factory

-300/500V 450/750V electrical wire

-600/1000V PVC insulated cable

-600/1000V XLPE insulated cable

-1.8/3KV to 26/35KV power cable

-Armored underground cable

-Control cable and instrumentation cables

-ABC cable

-AAC conductor

-AAAC conductor

-ACSR conductor

-OPGW

-Rubber cable

4)Product application

-Used for open air installation, for direct burrial underground, in water, in cable ducts, power stations, for industry and distribution boards and so on.

-Power transmission and distribution project bids we can work, cable retail and wholesale, regional agent we can cooperate.

5)Production Market

-Supply power cables & electrical wire to

South America(Brazil...),

East Asia(Korea...),

Africa(Uganda, South Africa, Zimbabwe...),

Southeast Asia(Myanmar, Thailand, Indonesia, Philippines, Malaysia, Cambodia...),

Europe(Czech Republic...) to global market.

-Had fixed partnership with SGCC&STATE GRID CORPORATION OF China (China largest power enterprise) and many other our country State-owned big enterprise.

6)Our service

-We guarantee that we will comply with the requirements of warranty period specified in the contract, that the Goods supplied under the purchase order For Procurement of self-carrying distribution network's cable and wire.

-We will be manufactured under this specification and that the Goods will be new, unused, of the most recent or current models. Once we are selected, we will supply the Goods strictly according to the requirements of the Contract.

-The warranty shall remain valid for twelve (12) months after the Goods, or any portion thereof as the case maybe, have been delivered to and accepted at the final destination indicated in the SCC, or for eighteen (18) months after the date of shipment from the port or place of loading in the country of origin, whichever period concludes earlier.

-During the warranty period purchaser may proclaim directly to the manufacturer in the written form or by the agent if there is any problem in Goods quality. The manufacturer will do the repair or replacement in reasonable time, and will bear all the expenses relating to this.
