PVC Insulated Single Core Electrical Wire BV PVC Cable

Name: PVC Insulated Single Core Electrical Wire BV PVC Cable
Brand: all-electronics-online.com
SKU: 742032455
Availability: InStock
Rating: 4.4 (33 reviews)

Price:	US $ 0.1-2/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	BV PVC CABLE
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Insulated
Conductor Type:	Solid
Application:	Heating
Conductor Material:	Copper
Insulation Material:	PVC
Certification:	CE
Range Of Application:	Low and Medium Voltage Cable

Product Description

Specifications

-Manufacture
-Made by high purity copper
-Full ranges of size for selection
-Home installation cable
-Stock available

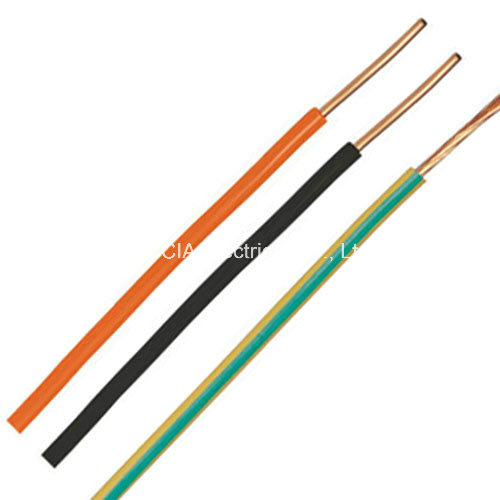

Wire - single solid copper core PVC insulation electrical wire
1. Cable is made by single soild copper wire, PVC insulation
2. Conductor: 100% pure copper
3. Range of application: This product is fit A. C rated voltage 450/750V
4. PVC type TI Ito BS-6746 rated temp7o ° C; Also available for 105 ° C
5. Colour: Red, Yellow, Blue, Black and Yellow Green
6. Application: Includes house wiring, factory wiring, switching panel
Distribution boards& installation purposes.
7. We can also customize electrical wire and cable as your request!
8. Specification, Size and Technical Date:

BV 300/500V
Nominal Section(mm2)	No.Dia. of Core(mm)	Max outer diameter(mm)	Conductor resistance at 20C(≤Ωkm)
0.5	1/0.8	2.4	36.0
0.75(A)	1/0.97	2.6	24.5
0.75(B)	7/0.37	2.8	24.5
1(A)	1/1.13	2.8	18.1
1(B)	7/0.43	3.0	18.1
BV 450/750V
1.5(A)	1/1.38	3.3	-
1.5(B)	7/0.52	3.5	-
2.5(A)	1/1.78	3.9	11.8
2.5(B)	7/0.68	4.2	11.8
4(A)	1/2.25	4.4	7.39
4(B)	7/0.85	4.8	7.39
6(A)	7/0.85	4.8	4.91
6(B)	7/1.04	5.4	4.91
10	7/1.35	7.0	3.08
16	7/1.70	8.0	1.91
25	27/2.04	10.0	1.20
35	27/2.52	11.5	0.868
50	19/1.78	13.0	0.641
70	19/2.14	15.0	0.443
95	19/2.52	17.5	0.320
120	37/2.03	19.0	0.253
150	37/2.25	21.0	0.206
185	37/2.52	23.5	0.164
240	61/2.25	26.5	0.125
300	61/2.52	29.5	0.100

VICCIA Electrical Co., Ltd., a member of Fuzhou Light Industry Co., Ltd, is located in Sanming City of Fujian Province. We specialized in manufacturing and supplying multiple products, particularly in the field of electrical appliance, such as Fiberglass ladder and Aluminum ladder, high and low voltage product, power fittings and so on. Started with the business of international trading and sales agent of domestic supplier and overseas buyer, we now have skilled and experienced engineer team in design and manufacturing, as well as trained talents in business and management which enables us to respond effectively to the demands of market and our customers at all times.

The slogan of VICCIA is to provide the highest quality services to each customer, and to provide products to each customer with reasonable price and good quality. At the same time, we can develop and manufacture gratifying products in accordance with customers' certain requirements.

Put your trust in VICCIA, let us work together and achieve more.
