| Prod Model: |

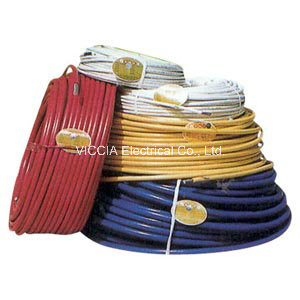

PVC Insulated Wire |
| Markets: |
North America,South America,Southeast Asia,Africa,Mid East,Eastern Asia |
| Type: |
Insulated |
| Conductor Type: |
Solid |
| Application: |
Heating |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
CE |
Product Description
Description:
1. Brief introduction
PVC insulated wires belong to the series of laying electric wires, which is mainly suitable for laying at the fixed places. It is widely used as connectors of drive, lighting, electric equipments, instrument and telecommunication equipments with rated voltage 450/750V(U0/U)or below. Part of the plastic wires are used at the equipment with AC rated voltage 300/300V or below.
2. Standards
The products adopt GB 5023.1~1997450/750V or below PVC insulated electric wires, JB 8734.1~5-1998450/750V or under PVC insulated cables, electric wires and flexible wiresand Q/ZEL 02-2002Piastic insulated electric wires and cables. GB 5023.1~7-1997 is identical to IEC227, and type are same as the stipulation of IEC, technical specification is just the same, and more we have extended the range of the type to fit for the requipment of the consumers. JB 8734.1~5-1998 and Q/ZEL 02-2002 is the complementary content of GB 5023.1~7-1997, and Q/ZEL 02-2002 is stipulated to meet the requirement of consumers.
3. Products
| Type | Name | Laying place and requirement | Long term working temperature |
227IEC01/05
BV
BLV | Copper conductor PVC insulated wires | Fixed laid indoors,conduits etc. | 70 |
| Aluminum Conductor PVC insulated wires |
227IEC07
BV-90 | Heat resistant copper conductor PVC insulated wires at 90 | Mainly be laid at the places of high temperature environment and can be laid indoors,conduits. | 90 |
| BVR | Copper conductor PVC insulated flexible wire | Be for laying permanent place where flexible required | 70 |
227IEC10
BW | Copper conductor PVC insulated PVC sheathed round wires | Fixed laid,fit for the places with high mechanical protection and moisture place.Can be laid in the air or underground. | 70 |
| BLW | Aluminum conductor PVC insulated PVC sheathed round wires |
| BWB | Copper conductor PVC insulated PVC Sheathed flat wires |
| BLWB | Aluminum conductor PVC insulated sheathed flat wires |
227IEC02RV
227IEC06RV | Copper conductor PVC insulated flexible connector | Mainly used at middle and linht stylemoving electronics,home appliances,power and lighting and the places where flexible required. | 70 |
227IECC42
RVB | Copper conductor PVC insualted flat flexible connector |
| RVS | Copper conductor PVC insulated flexible twisting connector wire |
227IEC52
RW
227IEC53
RW | Copper conductor PVC insulated PVC sheated round flexible connector(light and common type) |
Comprehensive Data of BV Wire
Nominal
sectional area
mm 2 | Conductor
No/Dia.
mm | Nominal
Insulated thick
mm | Max overall
Dia.
mm | Condcutor
Resistance at
20 | Min insulated
resistance at
70MΩ/km | Weight
Kg/km |
| 0.5 | 1/0.80 | 0.6 | 2.4 | 36.0 | 0.015 | 8.1 |
| 0.75 | 1./0.97 | 0.6 | 2.6 | 24.5 | 0.012 | 10.6 |
| 1 | 1/1.13 | 0.6 | 2.8 | 18.1 | 0.011 | 13.2 |
Comprehensive Data table of BV BLV Type PVC insualted wire
Nominal
sectional area
mm 2 | Conductor
No/Dia.
mm | Nominal
Insulated thick
mm | Max overall
Dia.
mm | Condcutor
Resistance at
20 | Min insulated
resistance at
70MΩ/km | Weight
Kg/km |
| Cu | Al | Cu | Al |
| 1.5 | 1/1.38 | 0.7 | 3.3 | 12.1 | - | 0.011 | 19.2 | - |
| 1.5 | 7/0.52 | 0.7 | 3.5 | 12.1 | - | 0.010 | 20.6 | - |
| 2.5 | 1/1.78 | 0.8 | 3.9 | 7.41 | 11.8 | 0.010 | 30.8 | 15.0 |
| 4 | 1/2.25 | 0.8 | 4.4 | 4.61 | 7.39 | 0.0085 | 45.5 | 21.0 |
| 6 | 1/2.76 | 0.8 | 4.9 | 3.08 | 4.91 | 0.0070 | 65.0 | 29.0 |
| 10 | 7/1.35 | 1.0 | 7.0 | 1.83 | 3.08 | 0.0065 | 110.0 | 52.0 |
| 16 | 7/1.70 | 1.0 | 8.0 | 1.15 | 1.91 | 0.0050 | 170.0 | 70.0 |
| 25 | 7/2.14 | 1.2 | 10.0 | 0.727 | 1.20 | 0.0050 | 270.0 | 110.0 |
| 35 | 7/2.52 | 1.2 | 11.5 | 0.524 | 0.868 | 0.0040 | 364.0 | 150.0 |
| 50 | 19/1.78 | 1.4 | 13.0 | 0.387 | 0.641 | 0.0045 | 500.0 | 200.0 |
| 70 | 19/2.14 | 1.4 | 15.0 | 0.268 | 0.443 | 0.0035 | 688.0 | 269.0 |
| 95 | 19/2.52 | 1.6 | 17.5 | 0.193 | 0.320 | 0.0035 | 953.0 | 360.0 |
| 120 | 37/2.03 | 1.6 | 19.0 | 0.153 | 0.253 | 0.0032 | 1168.0 | 449.0 |
| 150 | 37/2.25 | 1.8 | 21.0 | 0.124 | 0.206 | 0.0032 | 1466.0 | 551.0 |
| 185 | 37/2.52 | 2.0 | 32.5 | 0.099 | 0.164 | 0.0032 | 1808.0 | 668.0 |
Type BVR 450/750V copper conductor PVC insulated flexible wire
Nominal
sectional area
mm 2 | Conductor
No/Dia.
mm | Nominal
Insulated thick
mm | Max overall
Dia.
mm | Condcutor
Resistance at
20 | Min insulated
resistance at
70MΩ/km | Weight
Kg/km |
| 2.5 | 9/0.41 | 0.8 | 4.2 | 7.41 | 0.011 | 33.0 |
| 4 | 19/0.52 | 0.8 | 4.8 | 4.61 | 0.009 | 48.0 |
| 6 | 19/0.64 | 0.8 | 5.6 | 3.08 | 0.0084 | 68.0 |
| 10 | 49/0.52 | 1.0 | 7.6 | 1.83 | 0.0072 | 115.0 |
| 16 | 49/0.64 | 1.0 | 8.8 | 1.15 | 0.0062 | 176.0 |
| 25 | 98/0.58 | 1.2 | 11.0 | 0.727 | 0.0058 | 272.0 |
| 35 | 133/0.58 | 1.2 | 12.5 | 0.524 | 0.0052 | 384.0 |
| 50 | 133/0.68 | 1.4 | 16.5 | 0.387 | 0.0051 | 510.0 |
| 70 | 189/0.68 | 1.4 | 16.5 | 0.268 | 0.0045 | 714.0 |
| 95 | 259/0.68 | 1.6 | 19.5 | 0.139 | 0.0035 | 965.0 |
| 120 | 259/0.76 | 1.8 | 22.0 | 0.153 | 0.0032 | 1210.0 |
| 150 | 259/0.85 | 1.8 | 25.0 | 0.124 | 0.0032 | 1510.0 |
