| Prod Model: |
LC-0RGB-WIFI-01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Input Voltage: |
5V-24V DC |
| Output Power: |
100W(Max) |
| Weight: |
130g |
| Chasing Mode: |
347 Preset |
| Custom Mode: |
50 |
| Product Name: |
Wi-Fi LED Controller |
| Keyword: |
LED Wi-Fi Controller |
| Control Distance: |
>20m |
| Application: |
LED Products |
| Signal Transmission: |
RF Remote Control |
| Certification: |
CE |
| Universal: |
Universal |
| Type: |
Wi-Fi |
| Voltage: |
5V-24V DC |
| Transmission Distance: |
>20m |
Product Description

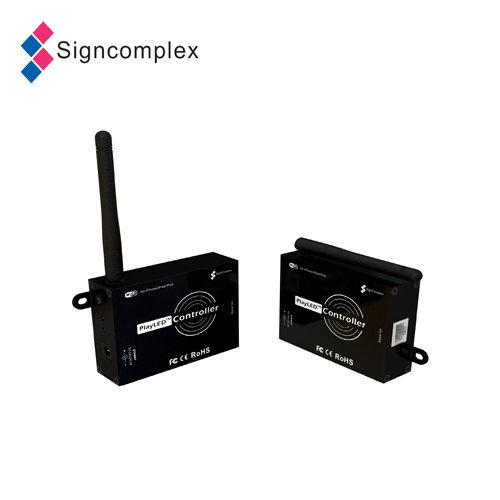

RGB DigiRibbon LED Wi-Fi Controller Playled SetFeatures:
Used for 5V-24V RGB DigiRibbon LED strip. Can be used with iPhone / iPod / iPad or Android device(mobile phone, tablet PC) to control color, brightness
And changing patterns of the LED strip.
1. Work with Apple IOS4.1 above system or Android 2.1Above system.
2. Application software is available from the APP Store, .
3. Compatible with several kinds of chips such as LPD1109, SM16716, LPD6803, LPD8803 WS2801, TM1803, TM1809
4. Friendly IOS user interface, easy operation
5.347 preset chasing mode and 50 custom mode
6. RJ-45 interface for output
7. Compatible with all kinds of digital RGB strip in different voltage
Technical parameters:
Input voltage: 5V-24V DC
Output power: 100W(max)
Control distance: >20m
Notes:
1. Please use DC5V-24V power supply for the controller, directly use the civil high voltage power
Supply is forbidden.
2. For escape burn out the controller, output power should not exceed its maximum value.
3. What if accidentally lost wireless network signal and failed to connect controller?
A. )Double press home button(Android device press exit. ), enter backgrounder to close the PlayLED
Application.
B. )Restart your LED controller, disconnect power supply first and then connect it.
C. )Enter settings to close wireless network and then reopen
D. )Connect to wireless network, open LED Controller
4. Because LED Controller use fixed port access controller WiFi network, so the controller can only
Work with a iPhone / iPod / iPad/ Android device at the same time, if you find it connect to the WiFi
Network but can't connect to the controller, please check if the controller is already connected to
Other device.
5. If strip isn't work properly, please check data lines of CLK and DA of strip whether corresponding
To controller, you can switch the data lines of CLK and DA and then connect to the controller to try.
6. The screen shots come from iPhone. Since Image resolution of Android devices are different,
There is certain difference of display in different device interface.
Packing List
1. The controller
2. The owner's guide
3. RJ-45 interface output line
| Model number | Input voltage | Output power | Control distance | Weight | Packing list |
| LC-0RGB-WIFI-01 | 5V-24V DC | 100w(max) | > 20m | 130g | Controller: 1pcs
power adapter: 1pcs
LED Strip: 5 m
Connect cable: 1pcs |

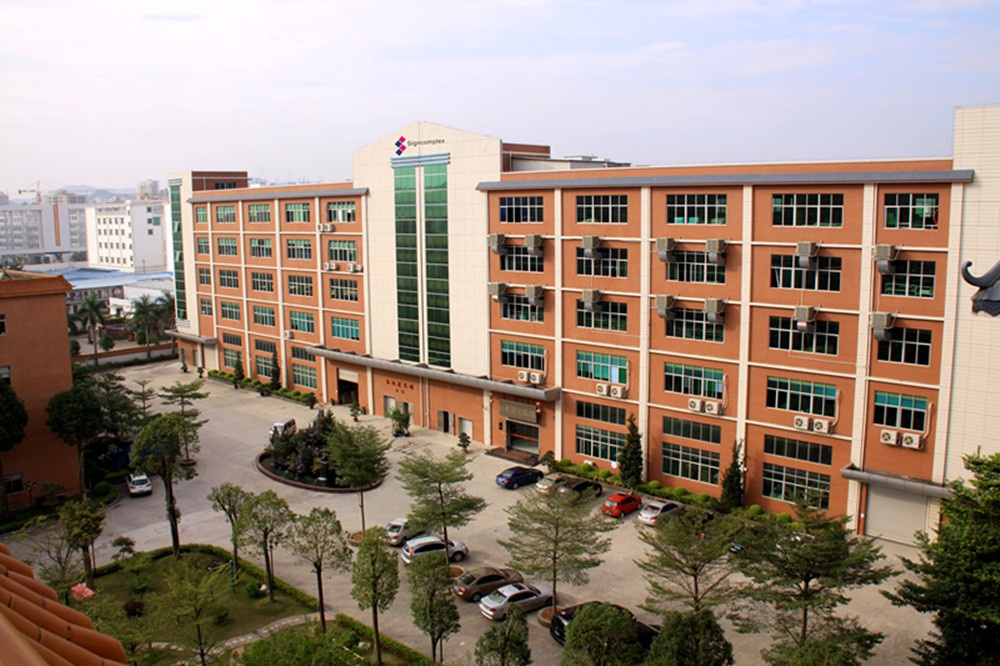

Signcomplex Ltd., founded in 2006, is a state-level high-tech enterprise and TUV ISO 9001: 2015 certified and registered company. Currently there are over 1000 employees, and a fabrication area of more than 40, 000 square meters. Our company has advanced LED luminaire manufacturing facilities such as auto soldering and SMT machines, electrical testing device such as integrating spheres and distribution photometer, and an independent EMI laboratory as well. We also have a professionally trained QC team to ensure the quality of all the products. And all the products are CE certified as well as RoHS compliant. Signcomplex enjoys a high reputation as a LED luminaire supplier throughout Europe and the US.
