Product Description

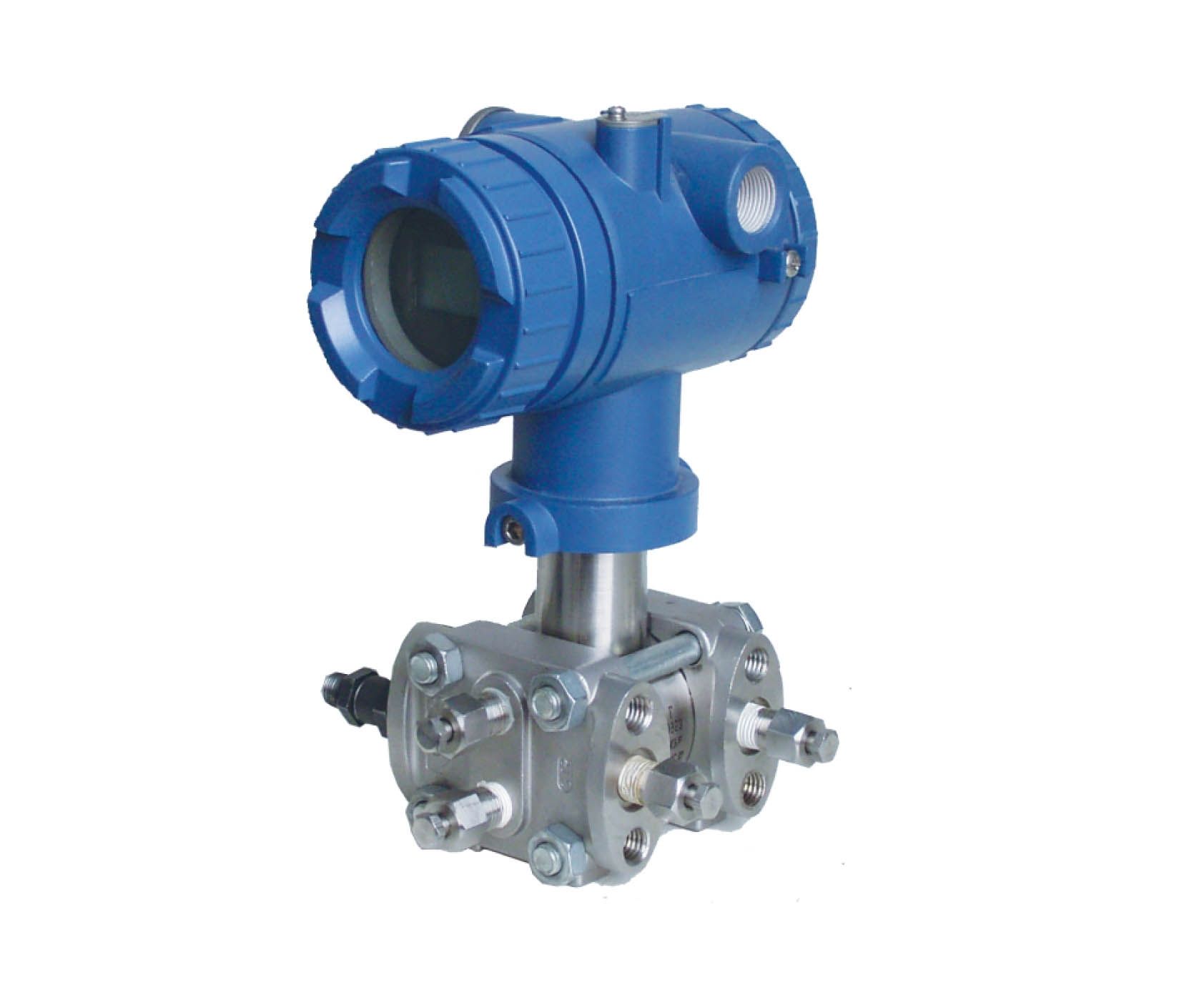

The 3188 series silicon capacitive differential pressure transmitter is self-design with MEMS technique, with high sensitivity silicon capacitive sensor chip employed inside as the element. The transmitters have the features of full soild sturcture, high accuracy, high reliability and stability, wide temperature range, low effect of static pressrue, superior unilateral overload capacity.
Meanwhile the transmitters using our new technology to improve its field anti-interference ability, with two wires HART communication protocol.
It also has digital temperature compensated, full stainless steel, 316L isolation diaphragm, standard differential pressure connector.
This transmitters are widely applied in measuring the differential value of pressure and flow for liquid and gas in petroleum, chemistry, electricity, food, environment protection and boiler control.
Two flanges with connecting threaded 1/4-18NPT(female threaded), distance of centre hole is 54mm(2.125). Waist style flange connecting threaded 1/2-14NPT(fenale threaded), waist flange could get 50.8mm(2), 54mm(2.125), 57.2mm(2.25) those 3 distances by rotating.
| NO. | Item | Specifications |
| 1 | Nominal Scale | 6kPa | 32kPa, 130kPa, 500KPa |
| 2 | Accuracy | ±0.10%FS
±0.25%FS | ±0.075%FS
±0.10%FS, ±0.25%FS |
| 3 | Working Temperature | -30 - 80ºC -40 - 85ºC |
| 4 | Temperature
Effect | ±0.01%FS/ºC, ±0.025%FS/ºC | ±0.005%FS/ºC, ±0.01%FS/ºC |
| 5 | Static Pressure
Effect | ±0.1%FS/3.2MPa
±0.075%FS/10MPa
±0.25%FS/10MPa | ±0.075%FS/10MPa
±0.1%FS/10MPa
±0.25%FS/10MPa |

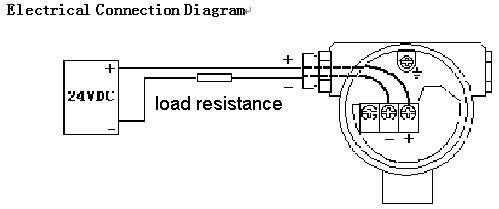

| 6 | Output | 4 - 20mA |
| 7 | Power Supply | 12 - 32V DC |
| 8 | Insulation Resistance | ≥100MW(100V DC) |
| 9 | Storage Temperature | -40 - 90ºC |
| 10 | Long-term Stability | ≤±0.2%FS/year |
