Stranded Wire Telephone Cable 4cores 100m/Roll

Prod Model:	Telephone Cable
Model No:	Telephone Cable
Color:	Black/White
Conductor:	Bc/CCA/Tc
Insulation:	PE
Numbers Of Conductor:	According to Customers
Application:	Submarine Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PVC
Type:	Cat 3
Certification:	CCC
Model:	Cat3
Brand:	Cx-Cable

Product Description

Stranded Wire Telephone Cable 4cores 100m/Roll

Telephone cable
1. Conductor size can be produced as per buyer's request. 0.40mm, 0.50, 0.60, 0.64, 0.70, 0.74, 0.90, 1.02mm.
2. Insulation: HDPE, it can be twisted pairs or no twisted pairs.
3. Jacket: PVC, the PVC jacket color can be white, red, black or red, beige, brown, any color is ok to production. Or UV resistance PVC, or fire retardant PVC or fire-retardant PE or UV resistance PE
4. With steel messenger or without steel messenger
5. Pairs and other specification can be produced as per customer's request.
6. Implementation standard: ANSI/ICEA S-98-688-2006, ANSI/ICEA S-99-689-1997.
7. We can produce as per buyer's cable strucutre, too

Specifications:
BC: Bare Copper CCS: Copper Clad Steel
1) 1P*0.4/0.6/0.63mmBC conductor+0.95mmPE insulation+3.8mmPVC jacket
2)18AWG/20AWG CCS/BC Conductor +PVC/PE Insulation
25P*0.4/0.6/0.63mmBC conductor+0.95mmPE insulation+15mmPVC jacket
100P*0.4/0.6/0.63mmBC conductor+0.95mmPE insulation+22.5mmPVC jacket
3) Customers' specifications are welcomed.

Note:
1) Conductor: BC, TC, solid or stranded copper or tinsel conductor
2) From 1 pair to 100 Pairs, shield or non-shield
3) Colour coded PP or PE insulation
Characteristic:
Rated temperature: 60 degree
Rated voltage: 300V

Application:
Telephone handset cord or line cord

1) Packing Lengths: 305m/roll Other lengths available according to client's request.
2) Inner packing: Wooden reel, plastic reel, and paper reel available.
3) Outer packing: Carton box, pull out box, pallet available.
4) Other Packing: Optional

Frequency	Impedance	SRL	Attenuation	Next	Next
Mhz	ohm	dB	dB/100m	Worst Pair	Power Sum
				dB	dB
0.772	100±15	12	2.2	43	43
1		12	2.6	41.3	41.3
4		12	5.6	32.3	32.3
8		12	8.5	27.8	27.8
10		12	9.7	26.3	26.3
16		10	13.1	23.3	23.3

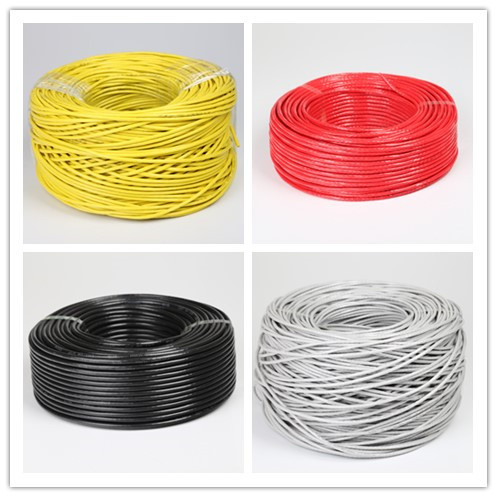

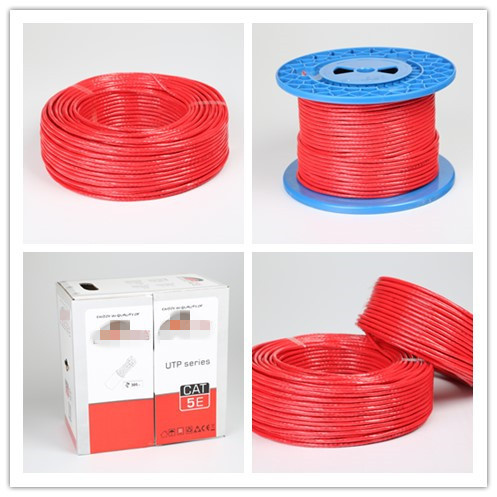

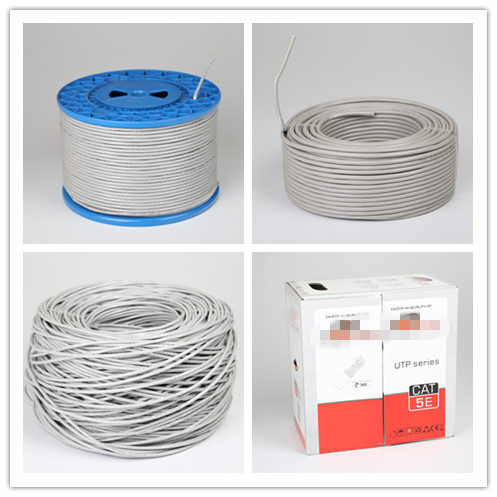

Cable Pictures:
