Unshield Twisted CAT6 LAN Cable with High Performance

Name: Unshield Twisted CAT6 LAN Cable with High Performance
Brand: all-electronics-online.com
SKU: 787939275
Availability: InStock
Rating: 5 (98 reviews)

Price:	US $ 24-54/Box
Min Order:	100/Box
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	CAT6
Size Of Conductor:	23AWG/24AWG
Numbers Of Conductor:	8
Insulation:	HDPE
Jacket:	PVC/PE
Color:	Customers'request
Outer Carton Size:	414148cm
Test:	Fluke Link
Application:	Submarine Cable
Conductor Material:	Copper
Cover Material:	PVC
Type:	Cat 5
Certification:	VDE
Model:	CAT6 UTP
Brand:	Cx-Cable

Product Description

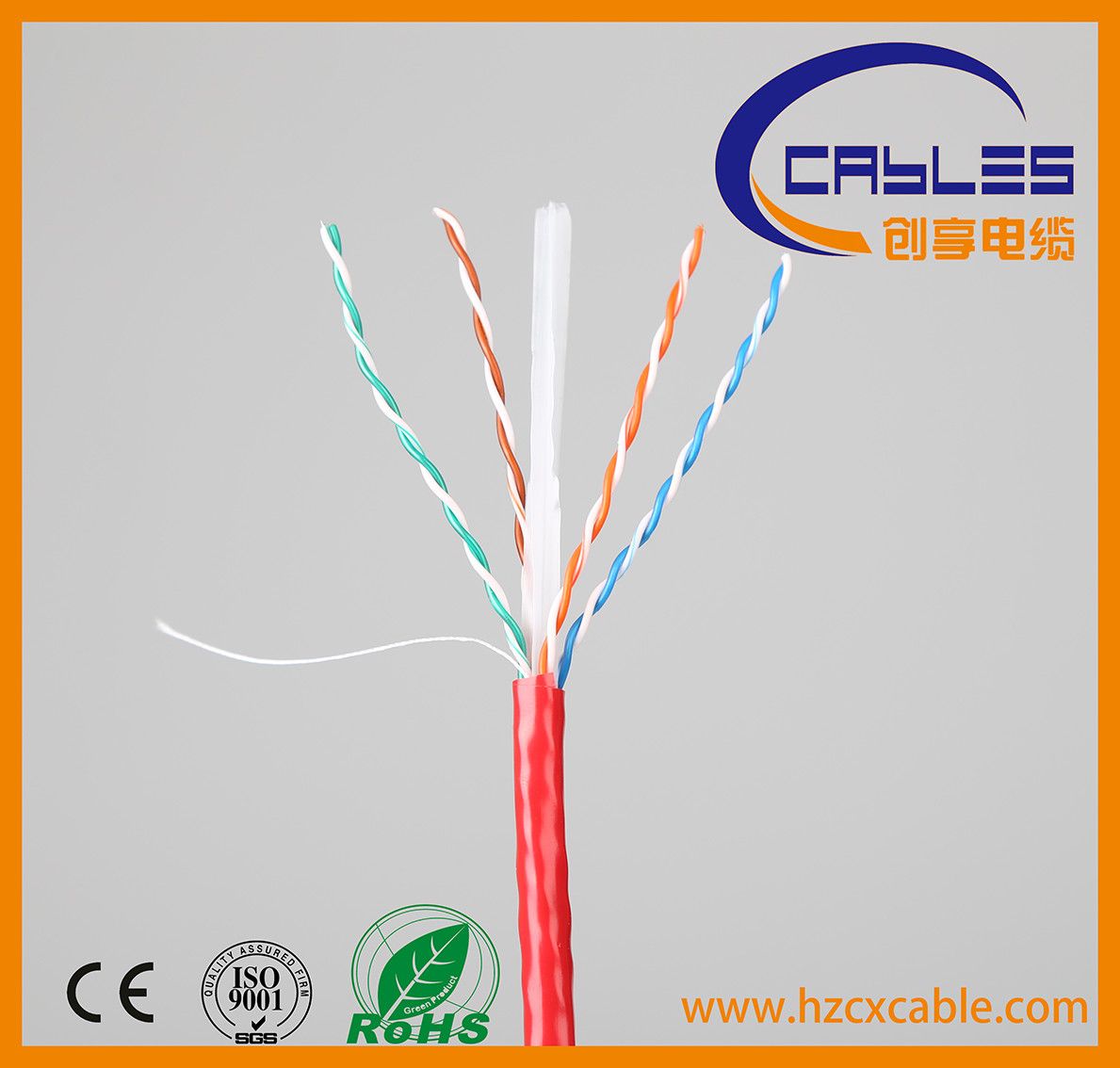

Unshield Twisted CAT6 LAN Cable with high performance

Construction:

1. Conductor: 0.57±0.01mm(23AWG) Bare copper
2. Insulation: 1.02±0.03mm HDPE
3. Cores/Pairs: 8/4
4. Sheath: 6.0±0.3mm PVC (PE, LSZH)

Options: Jelly Compound, Jacket: UV, RoHS complied

Item	Conductor	Number Of Pairs	Shielding	Drain Wire	O.D.
Cat6 UTP	0.57mm BC/CCA	4	Non	Non	6.2mmPVC ROHS,UV,LSZH,UL,Reach
Cat6 FTP	0.57mm BC/CCA	4	Aluminum Foil	Yes	6.8mm PVC ROHS,UV,LSZH,UL,Reach
Cat6 SFTP	0.57mm BC/CCA	4	Aluminum Foil + Alloy Braiding	Yes	7.2mm PVC ROHS,UV,LSZH,UL,Reach
UTP Cat6 Outdoor	0.57mm BC/CCA	4	Non	Non	PVC+PE PVC ROHS,UV,LSZH,UL,Reach
FTP Cat6 Messenger	0.57mm BC/CCA	4	Aluminum Foil	Yes	PVC+Messenger ROHS,UV,LSZH,UL,Reach

Electrical Performance:

1.0`250.0MHz Impedance(ohms)	100±15
1.0~250.0MHz Delay Skew(ns/100m)	≤45
20ºC Conductor D.C, Resistance(ohms/km)	≤65.8
Unbalance of Pair(%)	≤1.0

Technical Performance:

Frequency (MHz)	Attenuation (dB/100m)	Return loss (dB/100m)	Pair to Pair
			NEXT (dB/100m)	ELFEXT (dB/100m)
0.77 1 4 8 10 16 20 25 31.25 62.5 100 155 200 300 350	1.80 2.00 4.00 5.80 6.50 8.20 9.20 10.40 11.70 17.00 22.00 28.10 32.40 41.00 44.90	NA 20.00 23.00 24.50 25.00 25.00 25.00 24.30 23.60 21.50 20.10 18.80 18.00 16.80 16.30	70.00 68.30 59.30 54.80 53.30 50.30 48.80 47.30 45.90 41.40 38.30 35.50 33.80 32.30 30.20	69.00 66.80 54.70 48.70 46.80 42.90 40.70 38.80 36.90 30.80 26.80 22.90 20.70 17.20 15.90

Contact Informations:

Mob:+86 15068725011
Tel:+86 571 61107876 Fax:+86 571 61107877

Linan Chuangxiang Cable Co., Ltd has high quality products, preferential prices of communication wires and cables, and high quality customer service. We will still insist on the enterprise sprit of "concentration, profession, integrity, and practicability", the operation philosophy of "focusing on one thing, making it stronger and producing one cable wholeheartedllu"and the humanity idea of "being kind to staffs and customers". We look forward to move forward with old and new customers work together in glory.

Our company supplies different kinds of Cables with high quality and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the cables with good quality at the reasonable price.

Our main products are LAN cable and coaxial cable. Every year, we will attend three or four exhibitions in the whole world to extend our cable business. Now, our main market is Africa, , the Middle East, and also Asia. We look forward to have the customers alll over the world.

Waiting for your contact and visit.
