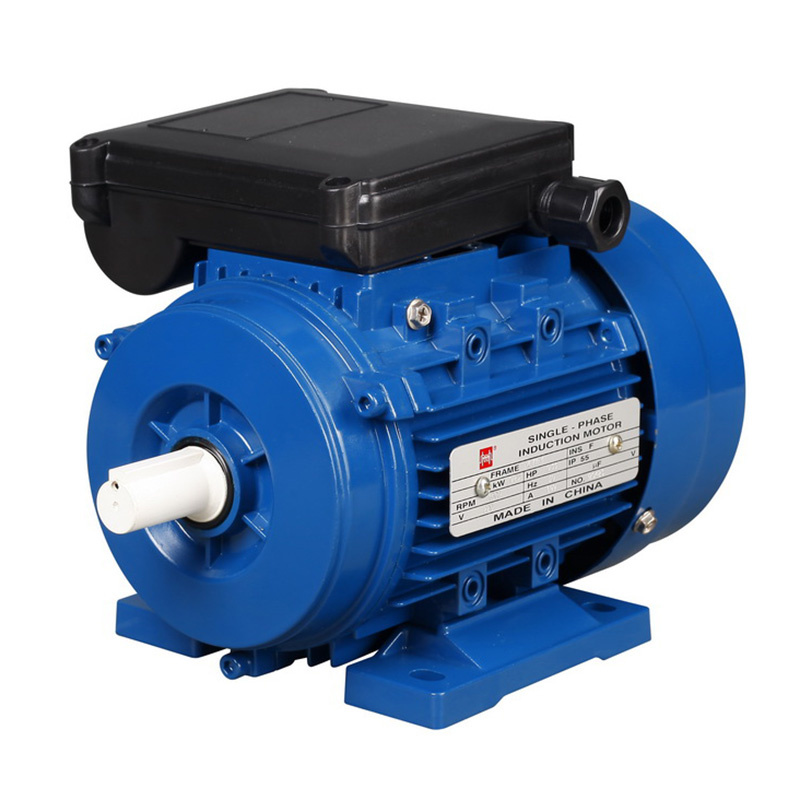

Introduction:MC/MY/ML Series Aluminum housing single-phase capacitor-run asynchronous motors are adopted the newest international design with the high quality of materials, which can meet the relative standards of IEC.MY series of motors has following features:Good performance, safe and reliable operation, nice appearance, convenient maintenance, low noise, slight vibration, light weight and simple structure.This series of motors can be used on household appliances, pumps, fans and recording meters, etc.
Operating conditions:Utilise IP55 enclosures, other requests
Multiple feet locations
Aluminium frame, end shields and base
High strength cable gland
Shaft key and protector supplied
Superior paint finish
Motors made to heavy duty service factors Can be made with stainless steel shaft
Motors made for continuous S1 duty
Utilise Vacuum impregnated Class B or Class F insulation
Other insulation on request
Excellent performance and efficiency.
Installation size and overall dimension:| Frame Size | Mounting Dimensions(mm) | Frame Dimensions(mm) |
| | IMB14 | IMB5 | AB | AC | AD | HD | L |
| A | B | C | D | E | F | G | H | K | M | N | P | R | S | T | M | N | P | R | S | T |
| 71 | 112 | 90 | 45 | 14 | 30 | 5 | 11 | 71 | 7 | 85 | 70 | 105 | 0 | M6 | 2.5 | 130 | 110 | 160 | 0 | 10 | 3.5 | 145 | 145 | 125 | 205 | 255 |
| 80 | 125 | 100 | 50 | 19 | 40 | 6 | 15.5 | 80 | 10 | 100 | 80 | 120 | 0 | M6 | 3 | 165 | 130 | 200 | 0 | 12 | 3.5 | 160 | 165 | 135 | 235 | 295 |
| 90S | 140 | 100 | 56 | 24 | 50 | 8 | 20 | 90 | 10 | 115 | 95 | 140 | 0 | M8 | 3 | 165 | 130 | 200 | 0 | 12 | 3.5 | 180 | 185 | 145 | 265 | 335 |
| 90L | 140 | 125 | 56 | 24 | 50 | 8 | 20 | 90 | 10 | 115 | 95 | 140 | 0 | MS | 3 | 165 | 130 | 200 | 0 | 12 | 3.5 | 180 | 185 | 145 | 265 | 360 |
| 100L | 160 | 140 | 63 | 28 | 60 | 8 | 24 | 100 | 12 | 130 | 110 | 160 | 0 | M8 | 15 | 215 | 180 | 250 | 0 | 15 | 4 | 205 | 215 | 170 | 280 | 380 |
| 112M | 190 | 140 | 70 | 28 | 60 | 8 | 24 | 112 | 12 | 130 | 110 | 160 | 0 | M8 | ^S | 215 | 180 | 250 I | 0 | 15 | 4 | 245 | 240 | 180 | 310 | 400 |
Technical Data:| Model | Output(KW) | Voltage(V) | Speed(r.P.M) | Curren(A) | Eff.(%) | Power factor (cos CD) | Start current Rated current | Start torque Rated torque | Max.Torque Rated torque |
| MC711-2 | 0.18 | 220 | 2800 | 1.89 | 60 | 72 | 12 | 3 | 1.8 |
| MC712-2 | 0.25 | 220 | 2800 | 2.40 | 64 | 0.74 | 15 | 3 | 1.8 |
| MC801-2 | 0.37 | 220 | 2800 | 3.36 | 65 | 77 | 21 | 2,8 | 1.8 |
| MC802-2 | 0.55 | 220 | 2800 | 4.65 | 68 | 0.79 | 29 | 2.8 | 1.8 |
| MC90S-2 | 0.75 | 220 | 2800 | 6.09 | 70 | 0.8 | 37 | 2.5 | 1.8 |
| MC90L-2 | 1.1 | 220 | 2800 | 8.68 | 72 | 0.8 | 60 | 2.5 | 1.8 |
| MC100L1-2 | 1.5 | 220 | 2900 | 11.38 | 74 | 0.81 | 80 | 2.5 | 1.8 |
| MC711-4 | 0.12 | 220 | 1400 | 1.88 | 50 | 0.58 | 9 | 3 | 1.8 |
| MC712-4 | 0.18 | 220 | 1400 | 2.49 | 53 | 0.62 | 12 | 2.8 | 1.8 |
| MC801-4 | 0.25 | 220 | 1400 | 3.11 | 58 | 0.63 | 15 | 2.8 | 1.8 |
| MC802-4 | 0.37 | 220 | 1400 | 4.24 | 62 | 0.64 | 21 | 2,8 | 1.8 |
| MC90S-4 | 0.55 | 220 | 1400 | 5.49 | 66 | 0.69 | 29 | 2S | 1.8 |
| MC90L-4 | 0.75 | 220 | 1400 | 6.87 | 68 | 0.73 | 37 | 2.5 | 1.8 |
| MC100LM | 1.10 | 220 | 1450 | 9.52 | 71 | 0.74 | 60 | 2.5 | 1.8 |
| MC100L2-4 | 1.50 | 220 | 1450 | 12.45 | 73 | 0.75 | 80 | 2.5 | 1.8 |
| MC112M-4 | 2.20 | 220 | 1450 | 17.78 | 74 | 0.76 | 120 | 2.2 | 1.8 |
| ML711-2 | 0.37 | 220 | 2800 | 2.73 | 67 | 0.92 | 2.3 | 1.8 | 16 |
| ML712-2 | 0.55 | 220 | 2800 | 3.88 | 70 | 0.92 | 2.5 | 1.8 | 21 |
| ML801-2 | 0.75 | 220 | 2800 | 5.15 | 72 | 0.92 | 2.5 | 1.8 | 30 |
| ML302-2 | 1.10 | 220 | 2800 | 7.02 | 75 | 0.95 | 2.5 | 1.8 | 40 |
| ML90S-2 | 1.15 | 220 | 2800 | 9.44 | 76 | 0.95 | 2.5 | 1.8 | 55 |
| ML90L-2 | 2.20 | 220 | 2800 | 13.67 | 77 | 0.95 | 2.5 | 1.8 | 80 |
| ML100L-2 | 3.00 | 220 | 2800 | 18.20 | 79 | 0.95 | 2.5 | 1.8 | 110 |
| ML711-4 | 0.25 | 220 | 1400 | 1.99 | 62 | 0.92 | 2.5 | 1.8 | 12 |
| ML712-4 | 0.37 | 220 | 1400 | 2.81 | 65 | 0.92 | 2.5 | 1.8 | 16 |
| MLSOM | 0.55 | 220 | 1400 | 4.00 | 68 | 0.92 | 2.5 | 1.8 | 21 |
| ML802-4 | 0.75 | 220 | 1400 | 5.22 | 71 | 0.92 | 2.5 | 1.8 | 30 |
| ML90S-4 | 1.10 | 220 | 1400 | 7.20 | 73 | 0.95 | 2.5 | 1.8 | 40 |
| ML90L-4 | 1.50 | 220 | 1400 | 9.57 | 75 | 0.95 | 2.5 | 1.8 | 55 |
| ML100L1-4 | 2.20 | 220 | 1400 | 13.90 | 76 | 0.95 | 2.5 | 1.8 | 80 |
| MY631-2 | 0.18 | 220 | 2800 | 1.48 | 60 | 0.92 | 0.4 | 1.7 | 5 |
| MY632-2 | 0.25 | 220 | 2800 | 1-96 | 63 | 0.92 | 0.4 | 1.7 | 7 |
| MY711-2 | 0.37 | 220 | 2800 | 2.73 | 67 | 0.92 | 0.35 | 1.7 | 10 |
| MY712-2 | 0.55 | 220 | 2800 | 3.88 | 70 | 0.92 | 0.35 | 1.7 | 15 |
| MY801-2 | 0.75 | 220 | 2800 | 5.15 | 72 | 0.92 | 0.33 | 1.7 | 20 |
| MY802-2 | 1.10 | 220 | 2800 | 7.02 | 75 | 0.95 | 0.33 | 1.7 | 30 |
| MY90S-2 | 1.50 | 220 | 2800 | 9.44 | 76 | 0.95 | 0.3 | 1.7 | 45 |
| MY90L-2 | 2.20 | 220 | 2800 | 13.67 | 77 | 0.95 | 0.3 | 1.7 | 65 |
| MY631-4 | 0.12 | 220 | 1400 | 1.10 | 55 | 0.9 | 0.4 | 1.7 | 15 |
| MY632-4 | 0.18 | 220 | 1400 | 1.62 | 56 | 0.9 | 0.4 | 1.7 | 5 |
| MY711-4 | 0.25 | 220 | 1400 | 2.02 | 61 | 0.92 | 0.35 | 1.7 | 7 |
| MY712-4 | 0.37 | 220 | 1400 | 2.95 | 62 | 0.92 | 0.35 | 1.7 | 10 |
| MY801-4 | 0.55 | 220 | 1400 | 4.25 | 64 | 0.92 | 0.35 | 1.7 | 15 |
| MY802-4 | 0.75 | 220 | 1400 | 5.45 | 68 | 0.92 | 0.32 | 1.7 | 20 |
| MY90S-4 | 1.10 | 220 | 1400 | 7.45 | 71 | 0.95 | 0.32 | 1.7 | 30 |
| MY90L-4 | 1.5 | 220 | 1400 | 9.83 | 73 | 0.95 | 0.3 | 1.7 | 45 |
