| Prod Model: |
16CH CWDM OADM Mux/Demux |
| Operating Wavelength: |
1260~1620nm |
| Fiber Type: |
SMF-28e or Customized |
| Operating Temperature (°c): |
-40~85 |
| Low Insertion Loss: |
3.0dB |
| Type: |
CWDM Mux/Demux |
| Channel Count: |
4, 8, 16, 18CH |
| Cable Length: |
0.5, 1, 2m or Customize |
| Storage Temperature (°c): |
-40~85 |
| Connector: |
Sc, FC, St, LC, E2000, Mu, SMA, Ect |
| Transmission Medium: |
Multimode |
| Structure: |
LC |
| Number Of Cores: |
Multi-Core |
| Ferrule Endface: |
PC(',UPC) |
Product Description
Product Description

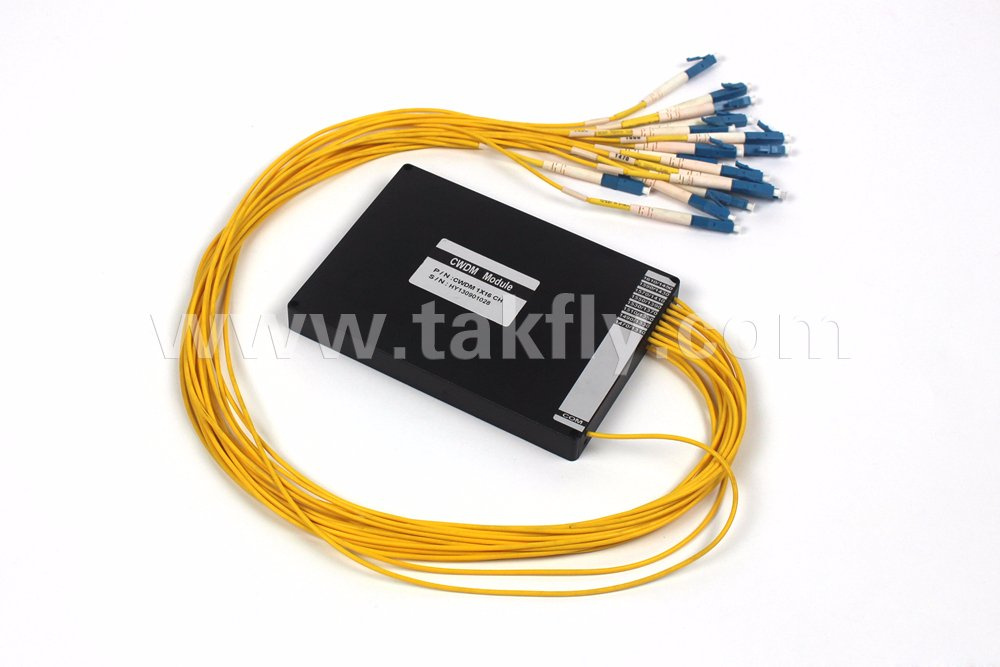

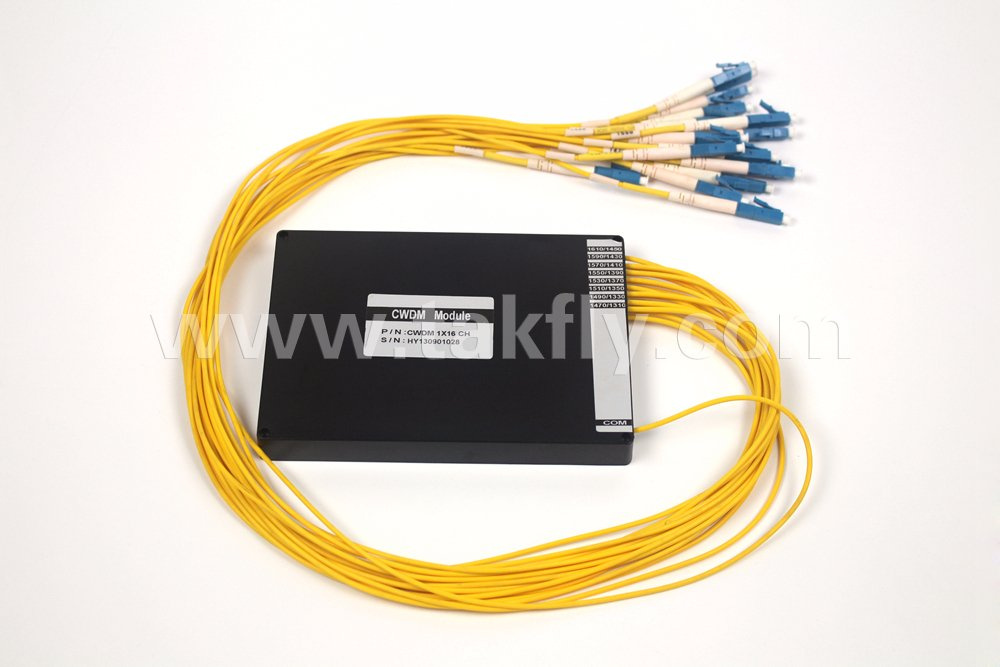

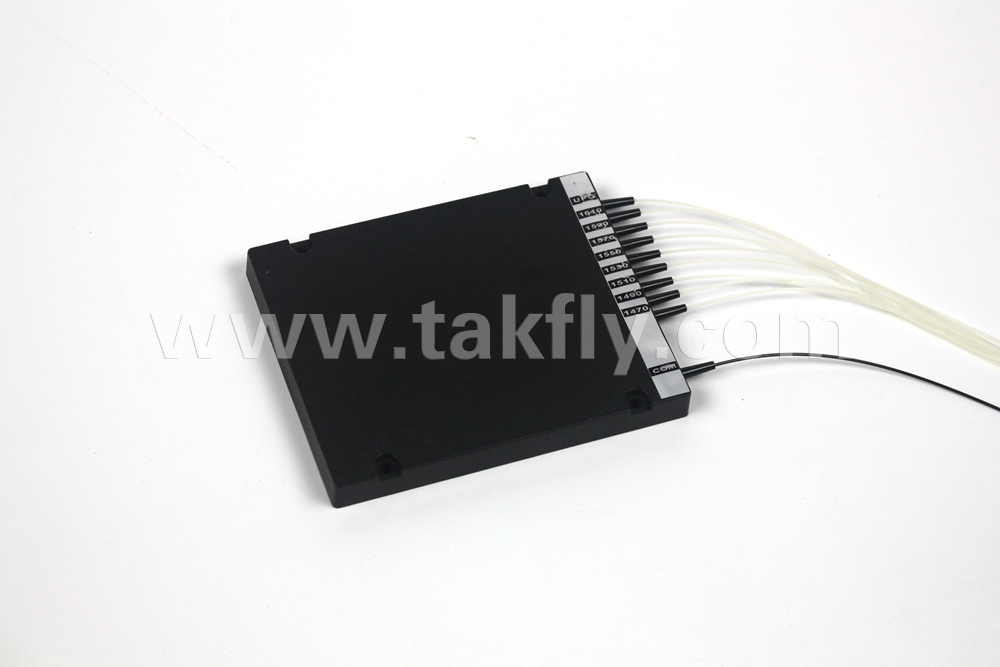

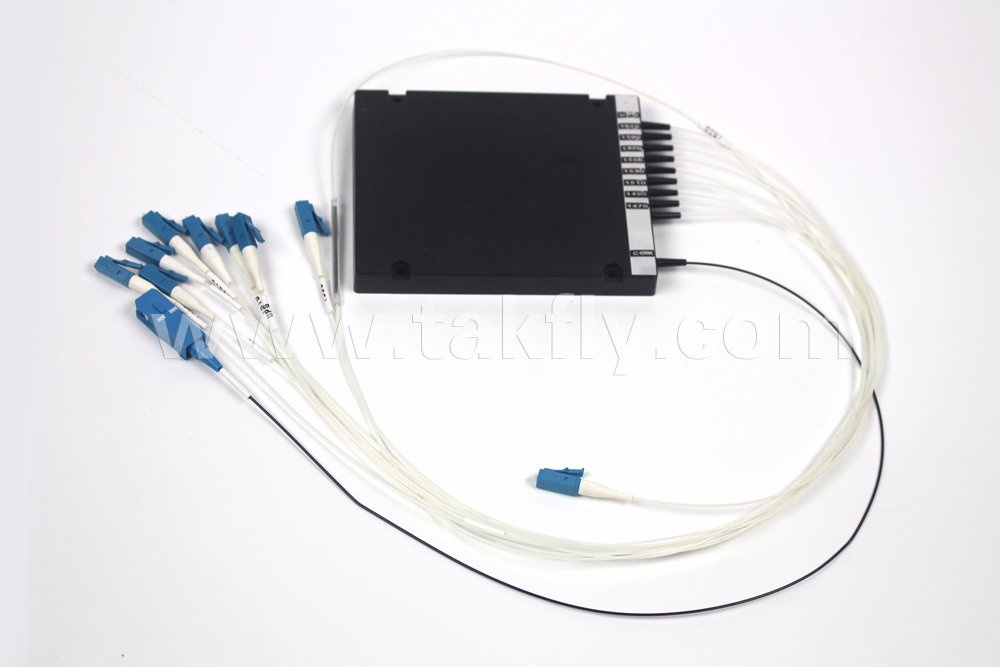

Coarse Wavelength Division Multixplex 16CH CWDM :
Part Number:16CH CWDM Mux/Demux
Product description: 1×16 CH CWDM Mux/Demux,,1270~1390, 1410~1610+1%TAP,( 900um,2.0MM,3.0MM optional),1m,connector optional ,142×102×14.5mm
| Parameters | Unit | Specifications |
Channel Count |
Ch |
16 |
Channel Center Wavelength |
nm |
1270/ 1290/ 1310/ 1330/ 1350/1370/1390/1410/ 1430/ 1450/
1470/ 1490/ 1510/ 1530/ 1550/ 1570/ 1590/ 1610 |
Channel Passband |
Min |
nm |
±7.5 |
Insertion Loss |
Max |
dB |
<3.0 |
Tap1% Insertion Loss |
Max |
dB |
23.8 |
Isolation |
Adjacent Channel |
Min |
dB |
30 |
Non-Adjacent Channel |
Min |
dB |
40 |
Passband Ripple |
Max |
dB |
0.3 |
Polarization Dependent Loss |
Max |
dB |
0.1 |
Directivity |
Min |
dB |
55 |
Return Loss |
Min |
dB |
50 |
Polarization Mode Dispersion |
Max |
ps |
0.1 |
Power Handling |
Max |
mW |
500 |
Pigtail and Connector Type |
COM |
0.9/mm black loose tube with /APC connector |
Other ports |
0.9mmwhite loose tube with /APC connector |
Fiber Type |
|
SMF-28e |
Fiber length |
m |
≥1 |
Operating Temperature |
°C |
-10 ~ 70 |
Storage Temperature |
°C |
-40 ~ 85 |
Package Dimension |
mm |
(L)142×(W)102×(H)14.5 |
